SX5000 tungsten carbide coating machine, HVOF powder spray coating equipment for pump
HVOF spray equipment(high velocity oxygen fuel spray machine)SX-5000 is one kind of thermal HVOF spray equipment,which is widely used in aerospace engineering field ,boat--making field ,military project,textile machine ,mechanical engineering ,energy project,petrochemical engineering ,papermaking field , Forging field and so on,by spraying tungsten carbide on the workpieces ,to improve the wear resistant , corrosion resistant and anti-high temperature of the machine parts
If you are interested in ,please contact me:
1. principle of SX5000 tungsten carbide coating machine, HVOF powder spray coating equipment for pump
the mixture gas of oxygen and fuel gas is sent to the burning area of spray gun outlet under high pressure. Then the burning gas is accelerated to form a supersonic flame with the help of external compressed air. The spraypowder is sent into burning flame and make a functional coating.
2. compositon of SX5000 tungsten carbide coating machine, HVOF powder spray coating equipment for pump

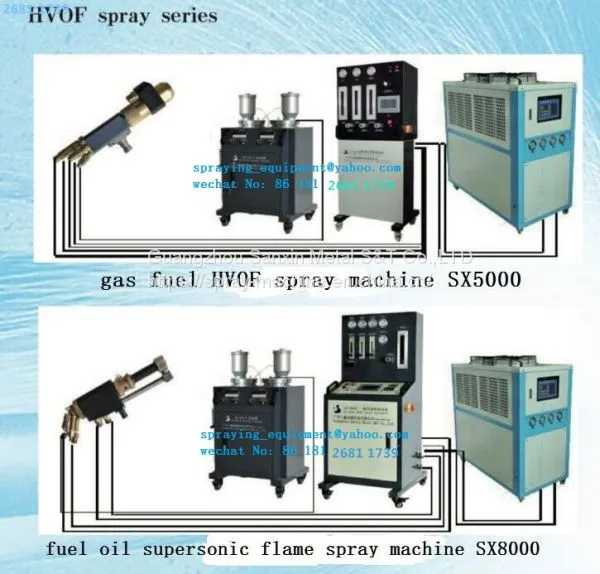

SX-5000 consists of spray gun, powder feeding machine, control system, heat-exchanger system and pipeline system. It’s a compact equipment with the feature of easy-operating, stable working performance, low fuel
consumption and high-quality coating.

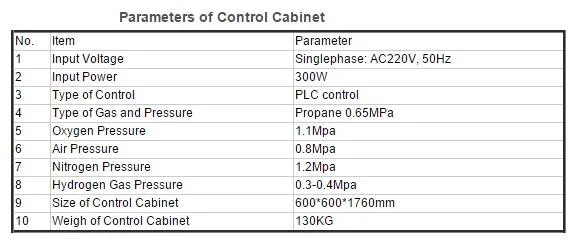

(1)Control system
SX-5000 HVOF spray system is in advanced level,has superior performance and is easy to operate in comparasion to the same products in the world. The spraying process is in automation, and monitoring system in real-time which can respond immediately when system has failure.
(2)Powder feeder
The SX-5000 powder feeding machine is used to store spray powder and send them to burning flames according to technological requirements. The feeding gas is nitrogen, which pulverizes the powder and sends the pulverized particles to spray gun. You can regulate the feeding velocity by the localizer on the regulating control panel.

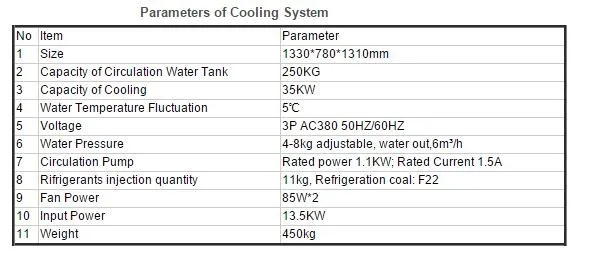

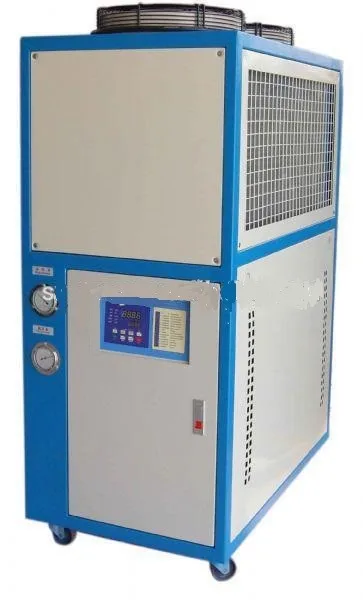

(3)Cooling system
Double compressor equipment reduces its volume and savse your space. Mainly used for nozzle, seals to cooling.The purpose is to make nozzle, sealing ring prolong use life

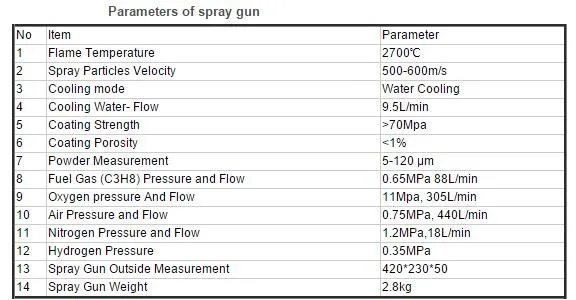

(4)Spray gun
Spray gun with manual and machine fixed way of operation. Gas needed: oxygen and propane (C3H8),
weight: 2kg.velocity of spray particles:≥450m/s. It can work for a long time stably.
3.Characteristics of SX5000 tungsten carbide coating machine, HVOF powder spray coating equipment for pump
(1)high temperatu resisting coatingcan spray all kind of Metal powder, such as Ceramic powder ( Chrome oxide, Titanium oxide, Aluminum oxide, aluminum titanium oxide, Zirconium oxide powder, etc.), Alloy powder (WC-Co, Cr3C2NiCr), Chrome, Titanium, Silicon powder, etc. Temperatures in the arc zone approach 36,000°F (20,000°K)
(2) Inert gas can be used as working medium to reduce the oxidation of spraying particles
(3) The coating can get high bond strength, low porosity. You can get accurate coating by controlling technological parameter.
4.application of SX5000 tungsten carbide coating machine, HVOF powder spray coating equipment for pump
SX-5000 is of wide use ,such as steam turbine spraying,spraying tungsten carbide on screw, ball valve abrasion resistant coating ,abrasion resistant coating on mixe,roller surface abrasion resistant coating ,tungsten carbide coating ,inner ring wear resistant coating,wear resistant spraying on wire drawing wheel,wear resistant coating on screw,wear resistant coating on large scale weaving roller,tungsten carbide coating on valve plate ,wear resistant and corrosion resistant coating on exhaust pipe,wear resistant coating of wire drawing ring ,wear resistant coating on pump impeller,wear resistant and corrosion resistant coating of boiler heating surface and so on

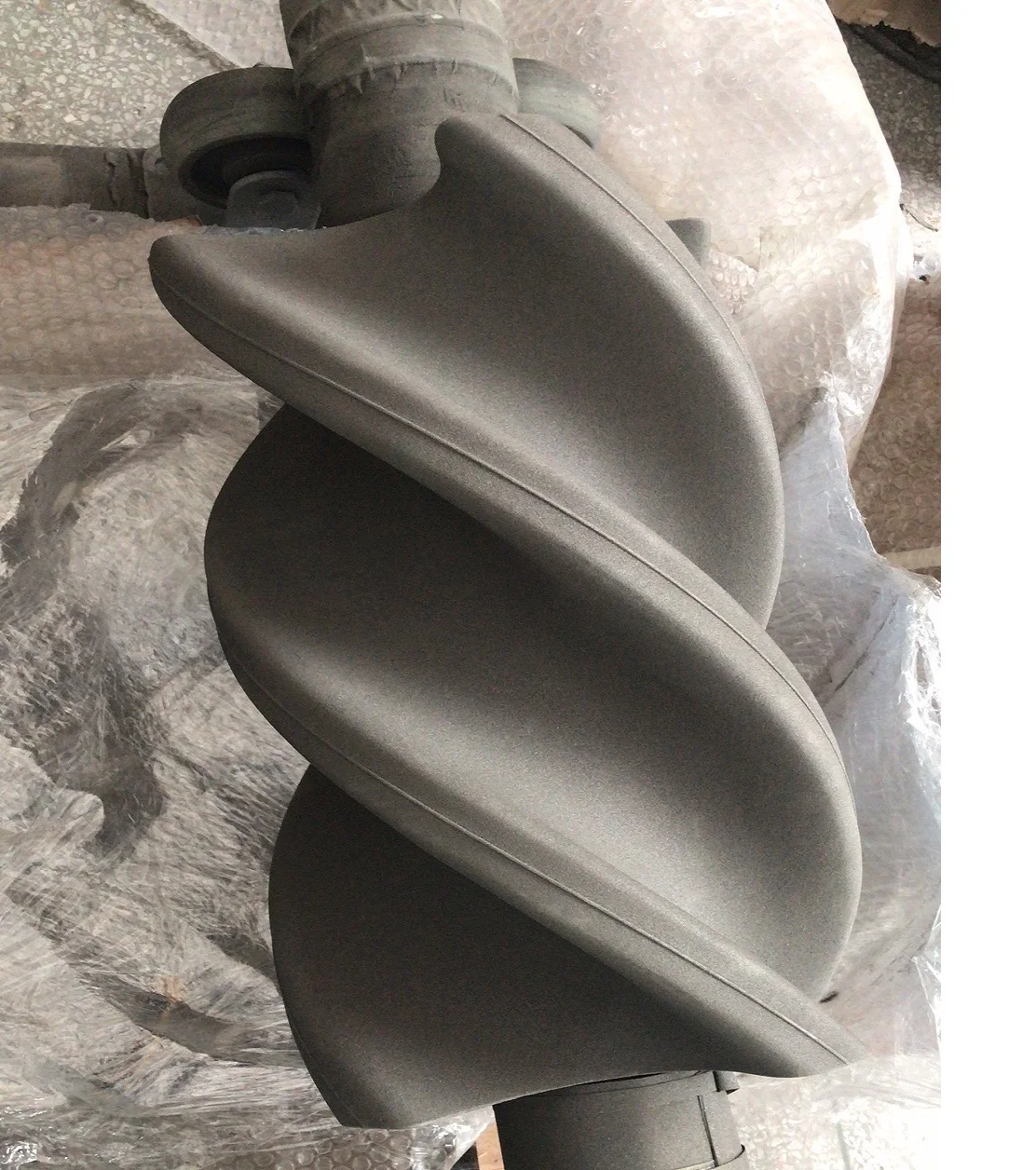

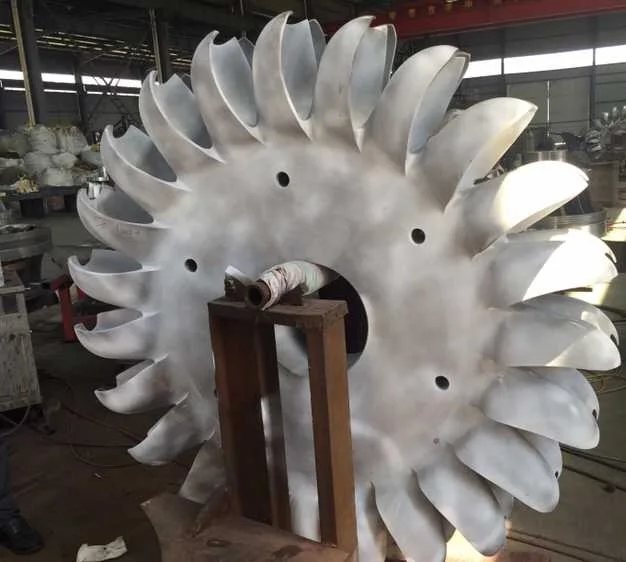

here are some pictures for reference :
5.our service :
(1)Pre-Sales ServiceInquiry and consulting support.
Sample testing support.
View our Factory.
(2)After-Sales ServiceTraining how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas
6.more information for our factory
Guangzhou Sanxin Metal S&T COM.,LTD(in CHINA) is committed to spraying technology research ,we have dozens of spraying equipment ,such as thermal spraying equipment,arc spraying equipment ,plasma spray equipment ,and so on.
All our products are taken strict quality control ,
(1)coating inspection item include: the material inspecton ,porosit ,friction experiment,appearance inspection ,coating profile microscopy ,bonding stretch ,sample'cup convex testing ,thickness ,hardness and so on
(2)equipment inspection items include : sample testing ,electrical testing,machine testing,electriccal leakage inspection,safety testing,appearance inspection,stability testing ,pressure testing ,durability testing and so on
If you are interested in our machine ,please contact me ,I will offer you more details ,thanks
