Tempered Glass | Laminated Glass |
Ceramic frit glass | Curved glass
Balustrade glass / fence glass/ railing glass/ shower glass bespoke&Supply
[Product Description]
Tempered glass specification
| Glass type | Clear glass/Ultra clear glass |
| Glass thickness | 8-25mm |
| Max. size | 12000mm*32000mm |
| Min. size | 300mm*300mm |
| Edge dealing | polished edge, smooth ground edge, Pencil edge, OG edge, chamfered edges, and etc. |
| other dealings | drilling holes, cut-out, notch, digital printing, Ceramic Frit, silk-screen printing |
| Shape | customized |
| Logo printing | customized |

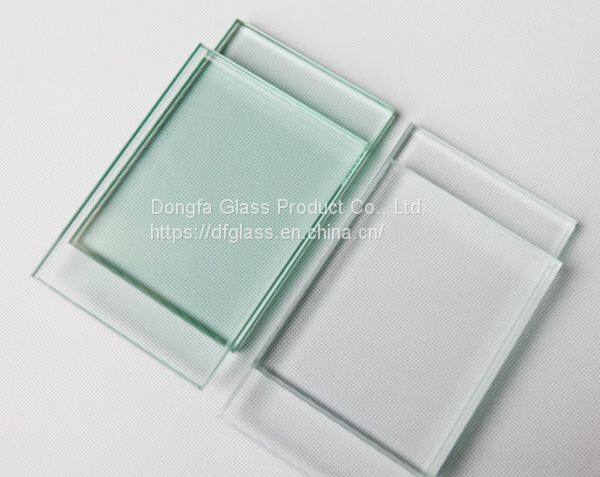

*Left: Clear glass
*Right: Ulltra Clear glass
What is tempered glass?
Clear/ultra clear tempered glass is made by forming compressive stress on the surface of the glass and heating the glass up to its intenerating temperature and then make the glass uniform cooling quickly. During the process of cooling, the exterior part of the glass is solidified because of the rapid cooling, while the interior part of the glass shrinks because of slow cooling, then forming compressive stress on the surface of the glass and tensile stress inside the glass, thus improving the intensity and heat stability of the glass. And when the breakage occur, its fragment will be harmeless to human.
-Characteristics:
★safety: when the breakage occur, tempered glass will appear hurtless obtuse angles when breakage.
★Strength: Five times more than ordinary glass.
★Heat stablity: Three times more than ordinary glass, could bear the temperature change about 200°C.
★anti-impact

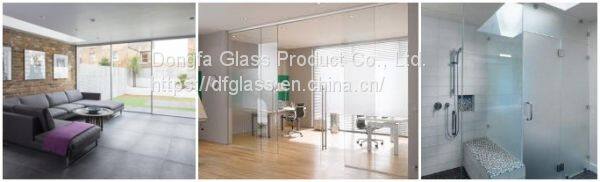

[Application]
Curtain Wall, Villa, Super mall, Shop front, aquarium, skylight, storefront, airpore, train station, & etc.
Safe,violent proof, long corridor, balcony fence, gardern, balustrade, terrance and etc.
[Quality Standard]
AS/NZS 2208:1996 -Australian standard
EN 12150-2:2004 -CE, European/British standard, Britich standard
EN 14449:2005 -CE, European/British standard, Britich standard
BS EN 1288-3:2000 - European/Britsh standard (bending stength of glass)
BS 6206:1981 -European/British standard (impact test of tempered glass/ tempered laminated glass)
SGCC certificate: ANSI Z97.1-2009 -the U.S. standard
SS 341:2001 -Singapore standard
GB15763.2-2005 -China standard (tempered glass)
GB15763.3-2009 -China standard (laminated glass)
ASTM C1279&ASTM C1048 -tempered glass surface compression measurement standard
ISO 9001:2015
partical certificate exhibition:
[Packingaging]
Strong Plywood Crates for Export and Steel Fasten
P.S. if you have other requirement about the packings, please tell us and we will custom it for you. Thanks.
[Company advantages]
★12-year experienced glass manufacturer in Guangdong, China.
★ Delivery on time.
★ Reasonable&competitive price
★ Considerable after-sale service.
★ OEM Service/Customer design is welcome.
★ Free Sample (about 3-7 days)
★ Glass Size/thickness/shape is customized
★Pass the international Certificate, like CE, ISO9001:2008, CCC, SGCC,
EN12150; BS 6206, GB 15763.2-2005; AS/NZS 2208:1996, etc.
-Our company-
[Contact way]
Dongfa Glass Product Co., Ltd.
Location: Dongguan City, Guangdong Province, China
Web:
ATTN: Emily
Tel: 0086-769-88903338 ext 813
Mobile : +86-13549406626
Wechat ID: 0086 13549406626
======================
Our main Product: tempered glass, laminated glass, high security sentryglas glass, anti-slip glass, silk-screen printing glass, balustrade/fencing/railing/stair glass, and etc.
