Professional Design Palm Kernel Processing Machine Price Edible Oil Press Extraction Refinery Plant Palm Oil Machine

What is our product?

1.What kind of raw material can we process ?

This  technology is applicable to kinds of oil-bearing material, such as peanut, rapeseed, sunflower seed, castor bean, maize germ, tea seed, oil palm seed, rice bran, sesame, shea nuts, tung nut, copra, hemp seed, flaxseed, olive, walnut, perilla seed, oil melon, tallow seed, castor seed, eveing primrose seed, corn germ, safflower seed, almond, pepper seed, etc.

2.Technical support for high oil yield palm oil machine

a. 20 years manufacturing, sales and installation experience on oil process project.

b. 38 technical engineers research on new efficient processing craft and instruct manufacturing and installation.

c. 78 technicians-professional installation team-with rich and mature installation and training experience.

d. CE and ISO9001 and SGS

3.Technological process of palm oil machine

3.1 Fruit reception system

a. Use truck to transport the ripe and fresh palm fruits from fruit ranch, weigh up them by platform scale and record, and then pour them into the discharging table.

b. Start control valve to open the discharging table, then fruit drop in the fruit basket car freely.

c. Drag the fruit basket car which loaded with fresh palm fruits to the downward of the bridge crane by power cable tray and cable tray, then use bridge crane to sling the fruit basket car to the track lead to sterilizer sterilizing tank.

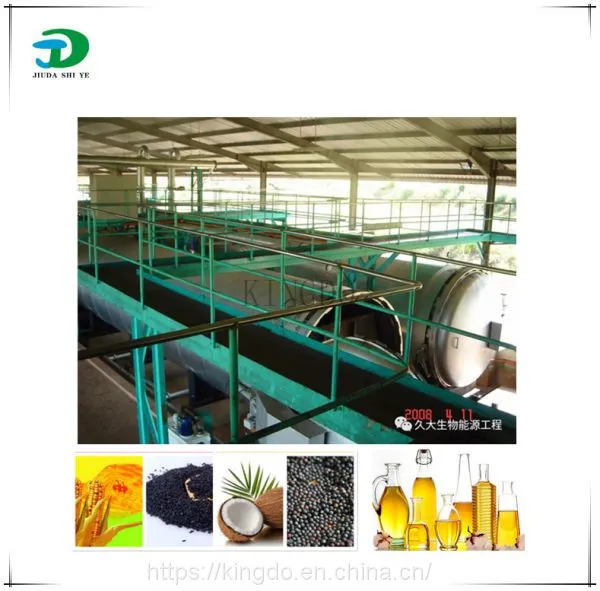

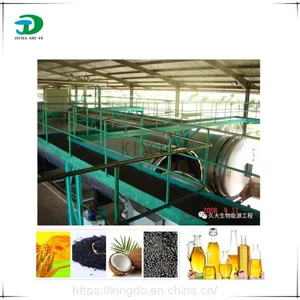

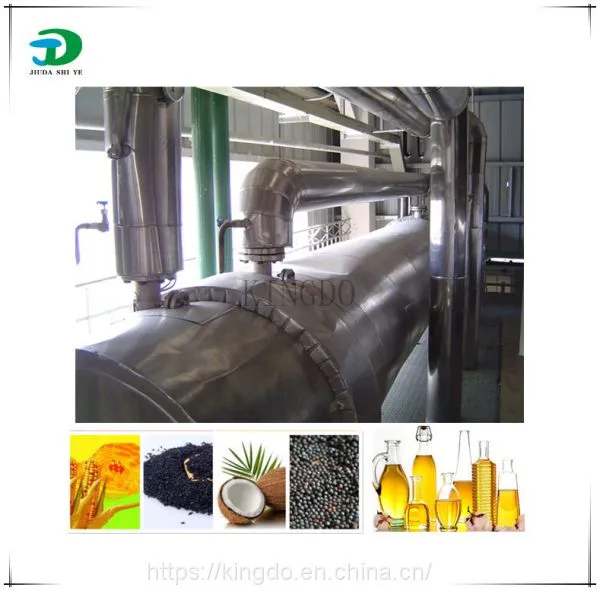

3.2 Sterilizer system

a. After drag the fruit basket car into the sterilizer sterilizing tank,close the sterilizer sterilizing tank and open the vent valve below it. Then inlet saturated vapor, close the vent valve after the cold air in the tank was excluded generally, and enter into the period of steaming and sterilizing.

b. Close the inlet valve after the sterilizing process. Drain out the water & vapor in tank, then you can open the door of the sterilizer sterilizing tank.

c. Drag the cooked fruit basket car to the downward of the beige crane.

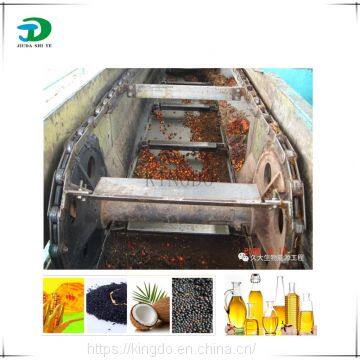

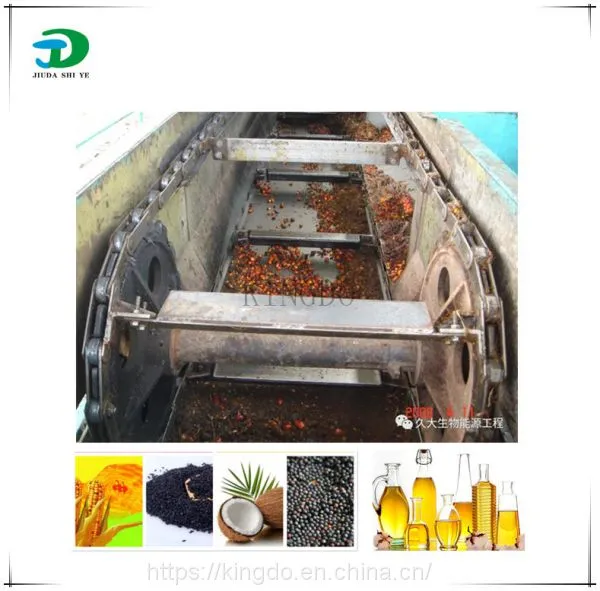

3.3 Threshing system

a. Pour the sterilized fruit in the fruit basket car into the unloading equipment.

b. Feed the fruit regularly into the fruit-separating machine to separate.

c. After twisting and beating in the fruit-separating machine, the fruits will fall off entirely.

3.4 Pressing system

a. Palm fruit was transported to crasher by elevator.

b.Fruit was heated in crasher.

c. After sterilizing, the broken palm fruit flow into the palm oil press machine to pressing. Oil and water mixture outflow from pressing chamber shell hole, in the same time, the fiber cake and corewas discharged from bonehead clearance and then drop in the packing anger of broken cake.

3.5 Fiber, cake, shell and kernel separation system

a. Fiber cake was dropped into packing auger, use interrupted blade to break up the palm cake, evaporate the palm cake constantly during the transportation, and the enter into the fiber and core separation machine. Use induced draft system which compose of draught fan and wind net to transport fiber to boiler room to burn. Palm core of large proportion drops into the bucket elevator from the other side of the fiber and core separating machine and then to transport to the core charging bucket to dry

b. Open the discharging hole which is at the bottom of the core chafing bucket, then palm core drop into husking machine to husk.

c. Use shell kernel separator to separate the shell and kernel mixture after husking.

d.Kernels are charged into kernel-holding tank and shell are transported to boiler room to burn.

3.6 Clarification system

a. Use vibrated sifting filter to remove residues like fiber in the crude palm oil, then the oil enter into the passivating tank.

b. There are indirect and direct steam in the passivating tank. After passivation, palm oil and water mixture are banished to the high-order position tank and then flow into the clarification tank.

c. Clarified oil flow into the oil tank, use disc separator to remove water in oil and then use plate heat exchanger to eliminate the residual water completely.

d. After vacuum drying, the oil flow into net oil tank and then feed into the final-product oil tank directly Palm Oil Press Machine

Our company adopts palm fruit oil press, which is the ideal equipment to press crude palm oil.

a.palm fruit/bunch → sterilization → threshing → digesting → clarification → purification →dring → CPO

 → refining → bleaching → deodorizing →RBD palm oil → crystallization → fractionation → RBD olein & RBD stearin

b.palm kernel →depericarper → crushing → pressing → CPKO →  refining → RBDPK oil , RBDPK olein & RBDPK stearin

Our packaging & shipping of palm oil machine

Standard overseas shipping package employed. eg. plywood case, paper case, etc, which can protect our equipments without hurt and damage.

Quality and Service Commitment of Palm Oli Machine

1.Ensure provide complete sets of equipment and accessories timely.

2.Ensure that one-time installation debugging acceptance.

3.To provide high quality material with preferential price.

4.Priority to provide customer our new craftworks and products.

5.Free training technological operator to ensure the trained staff can operation independently.

6.In the installation process,we will appoint an installation supervision staff on the spot.

7.we will offer an experienced project manager, organize a good installation team for the work of field installation debugging.

If you are interested in palm oil machine,please contact me.

                                                  info@kingdoind.com

 Who are we?

Henan Hi-tech Kingdo Industrial Company Ltd. headquartered in Zhengzhou National Hi-Tech Industrial Development Zone, Henan province. Kingdo owns three subsidiaries and a machinery manufacturing plant, and it is a comprehensive industrial company on scientific research, manufacturing and sales,and covering oil engineering, biodiesel, biogas, grain processing, biotechnology, water treatment equipment and international trade business.

v The advantages:

1. Professional manufacturer of grain and oil machinery over 30 years experience.
2.Completely production line, from raw material to delivery, all are under our control.
3.Quality assured.
4.Certification:CE/BV/ISO

5. Create a good production environment.

6. Perfectly match extraction production line, design different production processes according to different  materials.

7. Minimize the total fat loss, increase oil yield and output and improve the quality of oil and cake meal.

v  Main business:

1.10-500T/H oil material first cleaning,drying and storage section turn-key project.
2.100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
3.Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).
4.30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
5.20-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
6.10-200T/D Fatty acid esterification production cooking oil production line.

7. 30-1000TPD Biodiesel oil project.

8. 30-1000TPD Biogas project.

9.Wastewater treatment project.
