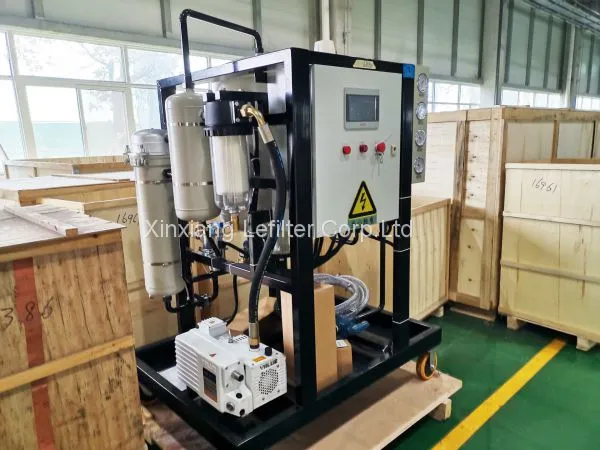

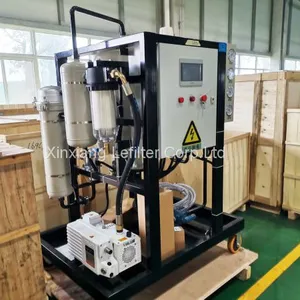

Help CenterExcellent Design Double Stage Vacuum Transformer Oil Purifier
Related Products
-
Mobile Filter System Hydraulic Oil Spin-On Portable Filter Cart Oil Filtration SystemsUS$ 2000 - 6000MOQ: 1 Set -
HYDAC OF5 Series Oil Purifier Machine With Good QualityUS$ 1000 - 6000MOQ: 1 Set
-
High Precision Oil Purifier LYC-50B Mobile Filter Oil MachineUS$ 1000 - 6000MOQ: 1 Set
-
LUCD-63 Hydac Oil Purifier Machine for Lubricating OilUS$ 1000 - 6000MOQ: 1 Set
-
HYDAC Hydraulic Oil Filter Element Oil Purifier OEM Part 2600R010BN4HCUS$ 10 - 50MOQ: 10 Sets
LYC-J Series Coalescence dehydrated oil filter cart
Applications
● The purifying of turbine oil and transformer oil
● The water and dust purifying of hydraulic oil lubrication system
● Access hydraulic lubrication system comprehensively improve the cleanliness of the system
Product Description
This machine has five filtration systems, combining precise filtration and dewatering two functions into one efficient. The introduction of the US "coalescing separation" technology for dehydration, which has high efficient dehydration, especially is adapted to the large amount of water separation from oil, dehydration ability is far better than the centrifugal method, you can get rid of all of the oil-water emulsion medium structure ; by filtration, particle filtration system, the cleanliness of the medium can be controlled in a stable state of the system requirements to ensure the cleanliness; the oil does not change the physical and chemical properties, to extend the service life of the oil; energy small, low operating costs; excellent system configuration, continuous strong performance for online operation.
1.Particulate Filter System:
High-efficiency filter media filter, large filtration area design, which can effectively filter out impurities in very fine particles, so that the oil reached a high of cleanliness.
2. Coalescing system:
Coalescing system consists of a set consisting of coalescing filter, which uses a unique polar molecular structure, oil free water and emulsified water through the filter after being coalesce into larger droplets, and then rely on gravity role sinking down to the water storage tank.
3. Separation System:
Separation filter in the separation system is made by special hydrophobic material, when the oil through the filter, the water droplets are blocked in the outer surface of the filter, coalescing with each other by gravity until settlement to the water storage tank.
4. Drainage System:
Separated water is stored in the water storage tank, when the height of the interface to reach the set value, the valve opens and the water discharges, until reduced to below the liquid surface, then the valve closed and the drainage stoped
Technical Parameters
Model |
LYC-25J-*/** |
LYC-50J-*/** |
LYC-100J-*/** |
LYC-150J-*/** |
LYC-200J-*/** |
LYC-2400J-*/** |
Rated flow (L/min) |
25 |
50 |
100 |
150 |
200 |
400 |
Temperature (°C) |
25-80 |
|||||
Recommended viscosity (CSt) |
10-120 |
|||||
Rated pressure (Mpa) |
0.6 |
|||||
The original pressure loss (Mpa) |
≤0.1 |
|||||
Filtration precision before pump (μm) |
100 |
|||||
First filtration precision (μm) |
10、20、40 |
|||||
Secondary filtration precision (μm) |
3、5、10 |
|||||
Voltage (V) |
Three-phase AC380V |
|||||
Motor Power Kw |
0.75 |
1.1 |
2.2 |
4 |
5.5 |
13 |
Weight (Kg) |
150 |
200 |
300 |
520 |
860 |
2860 |
Dimensions(mm) |
1200x820x1250 |
1350x820x1400 |
1740x980x1450 |
1800x1000x1540 |
1840x1050x1780 |
3180x1600x2000 |
Note: * Secondary precision filter accuracy, such as 003 means 3 um
** The applicable media: generally hydraulic oil
BH: water, ethylene glycol V: phosphate ester hydraulic fluid
*** When the medium viscosity fluid temperature is too high or low, needed to increase the heating device
