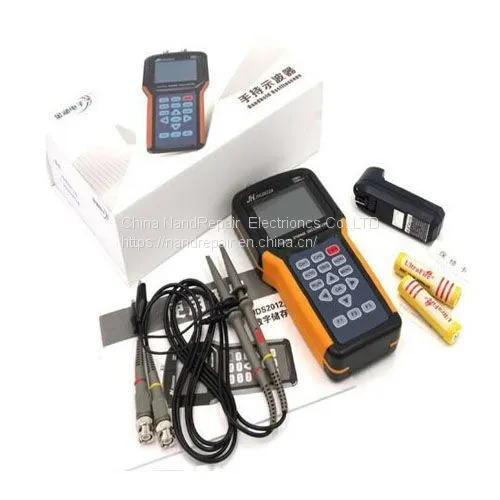

Jinhan JDS2022A Digital Oscilloscope Double-channel 20MHz Multimeter
Input
Input coupling AC, DC
Channel 2
Display mode X-Y; Y-T
The input impedance 1MΩ 25pF
The maximum input voltage 40V(Probe X1); 400V(Probe X1); 2000V(Probe X100)
Probe attenuation 1X, 10X
Attenuation setting 1X, 10X, 100X
Signal acquisition system
Sampling method Real time sampling, random sampling
The storage depth 4K(2K per channel)
Acquisition mode Sampling, peak detect
Vertical system
Vertical sensitivity 10mV-5V(Probe 1X)100mV-50V(Probe 10X) (1, 2.5, 5 Stepping)
The vertical accuracy +/-3%
The vertical resolution 8bit
Bandwidth 20MHz
Horizontal system
The real-time sampling rate 200 MSa/s per channel
Horizontal scanning range 10nS/div-5S/div
Triggering system
Mode Automatic, normal and single
Type The rising edge, falling edge
Automatic detection Support(50Hz-40MHz)
Mathematical operation CH1+CH2, CH1-CH2, CH2-CH1
Measurement system
Cursor measurement Support time and voltage
Measuring method Manual
Measurement The peak to peak value and frequency
Equipment
Screen 3.2 inch,16 bit true color, TFT, 320*240
Battery 2000+mA Lithium battery (support 5 hours of continuous work)(not include)
Size 202*100*35(mm)
