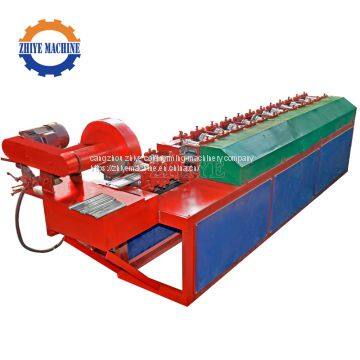

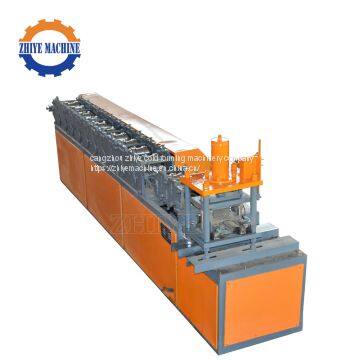

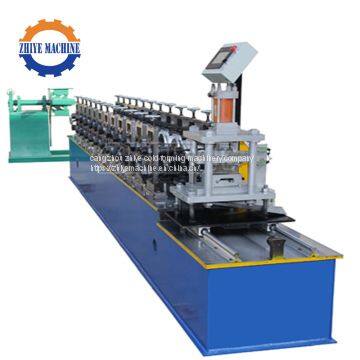

Good quality High speed shutter door roll forming machine
General information for the Good quality High speed shutter door roll forming machine
Products made by this machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.Material for this machine is galvanized steel plate, snowflake plate and colored steel plate
Detailed components introduction for Good quality High speed shutter door roll forming machine

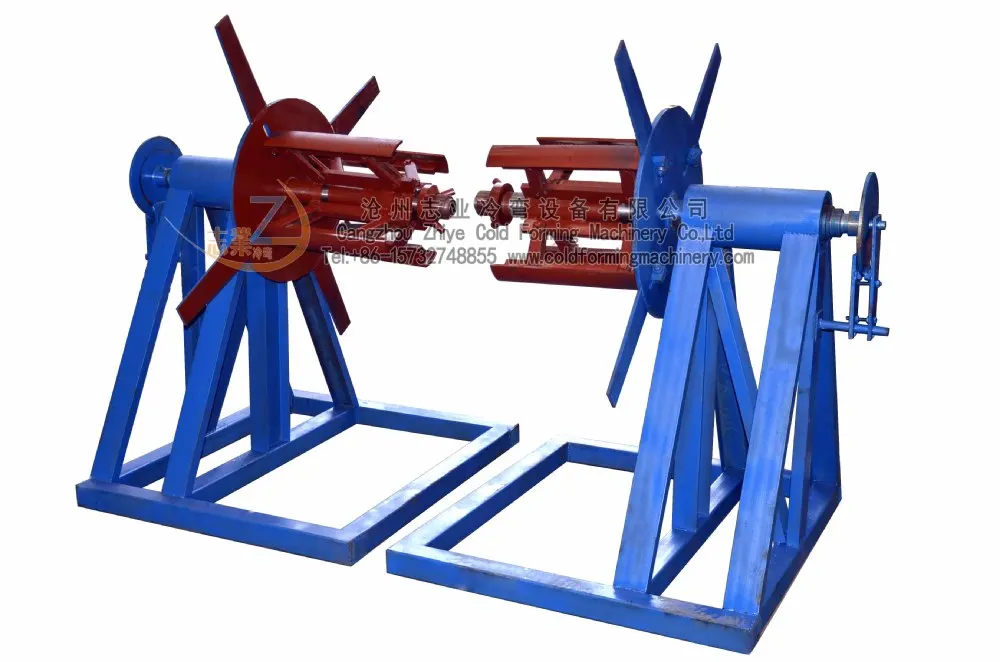

1.Manual Decoiler of the Good quality High speed shutter door roll forming machine
1):coil inner diameter: 450-550mm
2):coil max width: 1250mm
3):max carrying capacity: 5000kg
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
2.Coil feeding part of the Good quality High speed shutter door roll forming machine
Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.

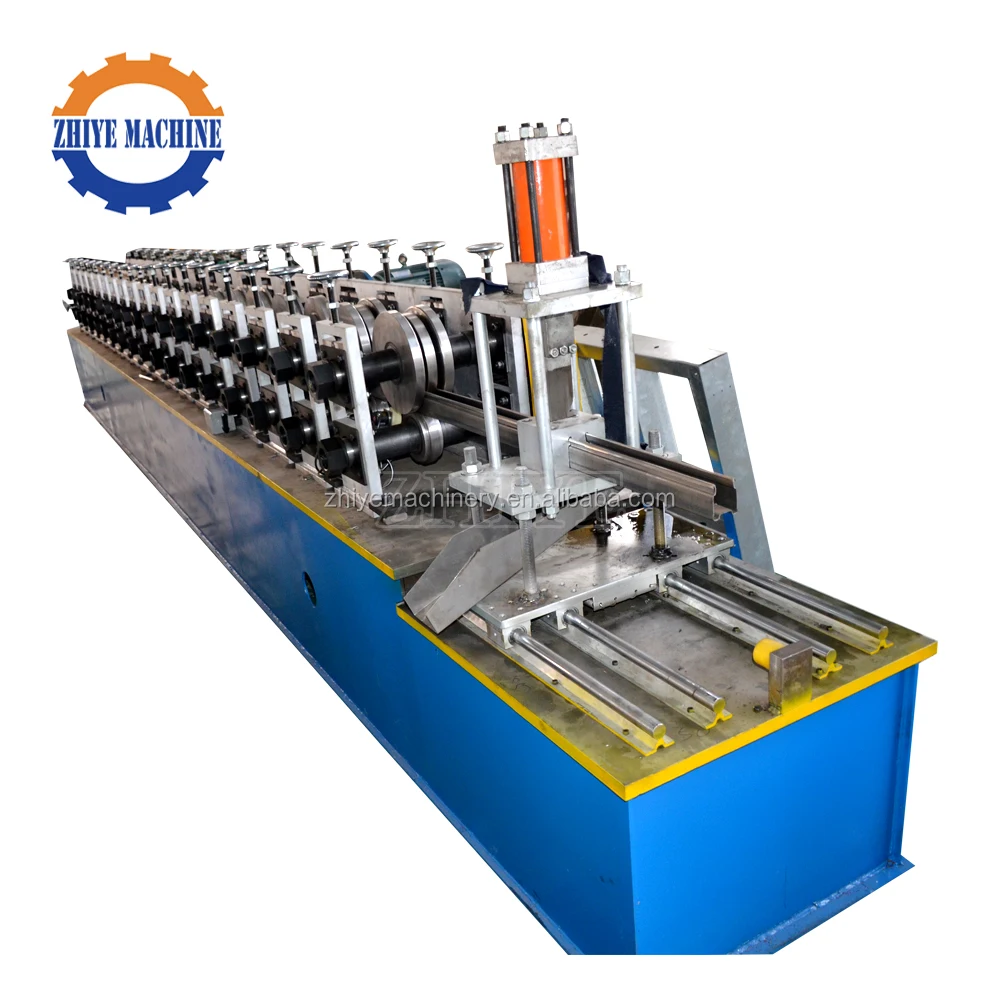

3.Main roll forming machine part of the Good quality High speed shutter door roll forming machine
1).roller material: 45# steel with hot treatment at 52-68 degrees, hot chormed on the surface to make sure its hardness.
shaft material: solid shaft(not hollow style), around 70kg/pc, to make sure the strength of it.and final profile shape are perfect in this way.
shaft diameter: normally is 72mm.
2).power: normally 7kw in total
3).transmission model: gear and chain

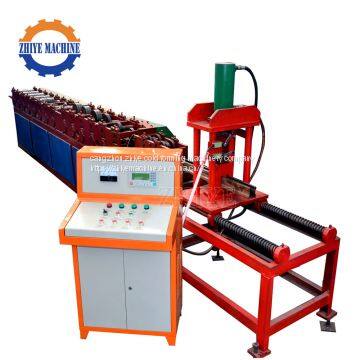

4).controlling model: PLC controlling system, fully automatic.
5).Forming speed: 0-17m/min
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor
reducer drive, chain transmission,roller was chromed which can keep the molding plate surface
smooth and not easy to be marked when it is working
4.
Emily Gao
Mob/skype /Whats App: +86 188 3378 5939
Email: rollformingmachine4@zhiyemachinery.com
web listing :
Sincerely wish to estabilish win-win business relationship with you!
