Description
Hardware
CPU MSTAR-MSD7802 (128 pin) MIPS 34Kf@600MHz
Memory 32X16Mbit DDR2 Frequency1066
Flash 32M bytes
Demodulator Type MSB1237 Chip Set
TUNER Rafael R836
USB 2.0 Embedded One Host,
Front Panel 4-digit LED display on front panel
red LED Standby, green LED Lock

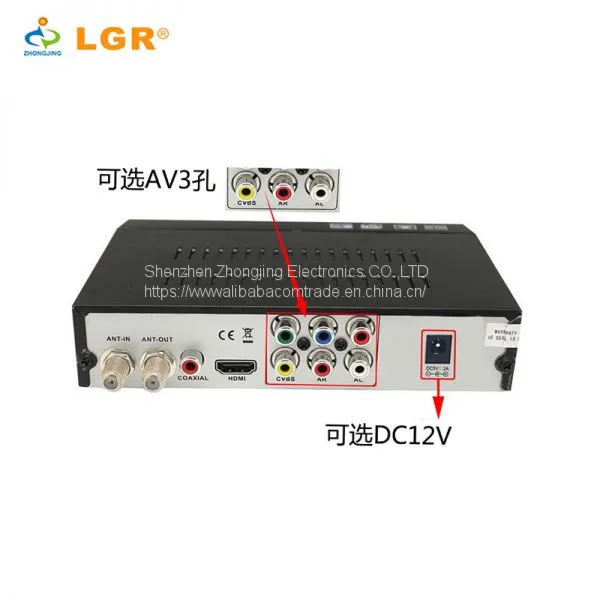

Rear Panel Tuner RF input connector Standard ISO/IEC 13818-1; ARIB STB-B10
Tuner RF Loop through connector loop through function
HDMI V1.3
AV RCA x1
Ypbpr RCAx1
Coaxial x1
Power AC100~240V 50Hz/60Hz
Demodulation Standard ISO/IEC 13818-1; ARIB STB-B10
Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel)
ATSC NTIA and 8VSB Standard
QPSK, 64QAM, 256QAM
FEC: 1/2, 2/3, 3/4, 4/5,5/6,
Guard Interval: 1/4,1/8,1/16,1/32,1/128
FFT Mode: 2K, 8K, 32K
RF input frequency: 54-803MHz
Bandwith: 6MHz
Input level: -83 - -5dBm
Software Features
•USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver
•Converts digital broadcast to your analog TV
•By remote control to choose the RF 3/4 ch output
•Sleep Timer
•Support teletext/subtitle/muti-language
•Powerful and highly effective 7-day EPG function
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
