Oil Rotary Vane Single Stage Vacuum Pump Animation
2018 NEW MODEL

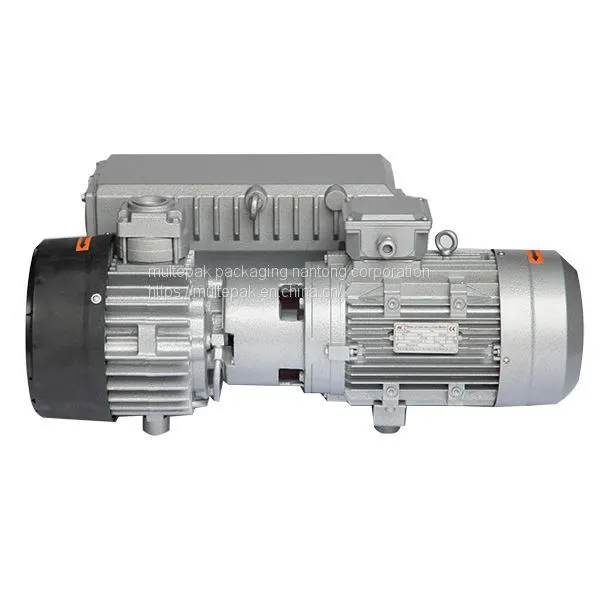

Rotary Vane Pumps are oil-sealed vacuum pumps. They contain a specially positioned rotor andvanes that split the working chamber into two different compartments that have variable volumes. Gas flows into the suction chamber as the rotor turns until it is sealed by the second vane. After the enclosed gas is compressed, the outlet valve opens against pressure. The oil seals the outlet valve and releases a small amount into the suction chamber as the valve opens to lubricate the chamber and seal the vanes against the pumps housing.
Model |
Pump speed (m3/h) |
Ultimate vacuum (Pa) |
Motor Power (KW) |
Inlet Diam (inch) |
Rotary speed (rpm) |
Oil Capacity (L) |
G.W (kg) |
Noise dB (A) |
Dimensions (mm) |
|
50HZ |
60HZ |
|||||||||
XD-010 |
10 |
12 |
150 |
0.55 |
G1/2 |
1400 |
0.5 |
20 |
64 |
405*253*210 |
XD-020 |
20 |
24 |
150 |
0.75 |
G1/2 |
2800 |
0.5 |
20 |
64 |
405*253*210 |
XD-025 |
25 |
30 |
150 |
0.9 |
G1/2 |
2800 |
0.5 |
20 |
64 |
405*253*210 |
XD-040 |
40 |
48 |
50 |
1.5 |
G11/4 |
1400 |
1.0 |
48 |
67 |
660*300*270 |
XD-063 |
63 |
75 |
50 |
2.2 |
G11/4 |
1400 |
2.0 |
81 |
68 |
695*420*295 |
XD-100 |
100 |
120 |
50 |
3.0 |
G11/4 |
1400 |
2.0 |
85 |
72 |
735*420*295 |
SV-160 |
160 |
192 |
50 |
4.0 |
G2 |
1400 |
4.5 |
152 |
74 |
805*520*410 |
XD-200 |
200 |
240 |
50 |
5.5 |
G2 |
1400 |
4.5 |
159 |
76 |
825*520*410 |
XD-250 |
250 |
300 |
50 |
5.5 |
G2 |
1400 |
7.0 |
230 |
76 |
1000*550*410 |
XD-300 |
300 |
360 |
50 |
7.5 |
G2’’ |
1400 |
7.0 |
236 |
76 |
1200*550*410 |
1.High ultimate vacuum degree, less than 0.5 mbar
2.High pumping speed
3.Low operating noise, less than 66 dB(A)
4.Good capability of pumping or eliminating water vapor
5.When the inlet pressure 1.33 x 103 Pa, it still can work continuously
6.Environmental-friendly; Equipped with oil mist eliminator can remove 99.99% of the exhaust gas oil.
7.Compact structure; scientific and reasonable design; convenient Installation
1.Packaging & Pasting
Various foods, metal parts and electronic components of vacuum packaging or inert gas packaging;
The pasting of photos and advertising paper;
Vacuum packaging and food processing technology;
Thermoforming (plastic, foam molding)
2.Lifting, transporting, suctioning, loading and unloading
Glass plate lifting(vacuum sucker)
Woodblock, plastic plate sorption, wood processing, CNC engraving machine;
Non magnetic loading and unloading;
Paper and paperboard loading and unloading, transporting in paper and printing industry;
Powder material conveying;
Vacuum spreader and vacuum handling devices
3.Drying, degassing, impregnating
Drying and impregnation of electronic components;
Casting, coating
Vacuum degassing, deaeration, impregnation, concentration, drying
4.Other
Laboratory device;
Medical device, medical system, the central vacuum system, moving the vacuum station, etc;
Recycling of Freon;
Vacuum heat treatment
FAQ
1. How should i pay for my order ? what is the procession of this purchase ?
We accept TT by bank or other methods. You can do 30% prepayment at first, then we will start to make production.When the machine is ready , we will take pictures to you, and then you can do the balance.
I will send the machine to you after we got your payment.
2. How about your service after sales ? can your engineer speak fluent english ?
We offer the service from you got the pump, including how to how to use pump and so on. Usually ,we will teach you how to do by email or by skype our engineer who has many years of experience for cnc machine service . he can speak fulently in english .so he can slove the problem in short time.
3. Are you a factory or trading company?
We are the manufacturer and trading company. As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory.Also we are trading company,we can get what you want at dealer's price.
4. How long is the delivery time?
For standard pump, it would be delivery immediately; For non-standard pump according to client s specific requirements, it would be 5-10days.
5. How about the documents after shipment?
After shipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
Welcome to our factory!
TAGS:single stage vacuum pump price,single stage vacuum pump for sale,oil rotary vane vacuum pumps,XD 020 025 040 063 100 vacuum pump
