Holykell OEM Non Contact Cheap Waterproof Ultrasonic Liquid Water Fuel Level Sensor UE3003

UE3000 Ultrasonic Level Transmitter

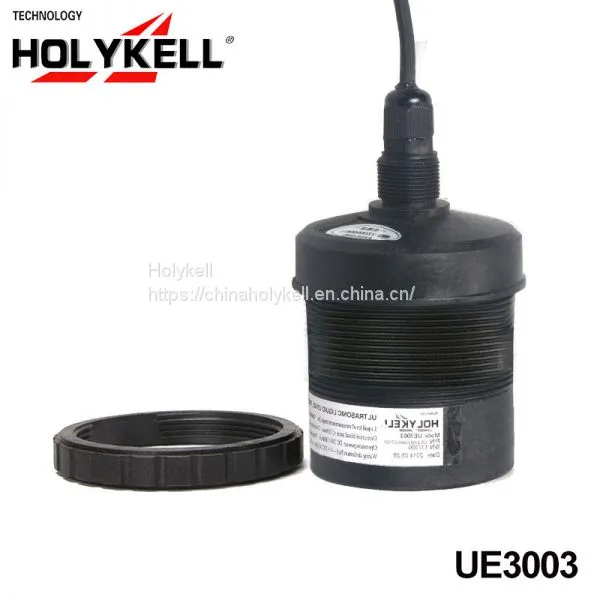

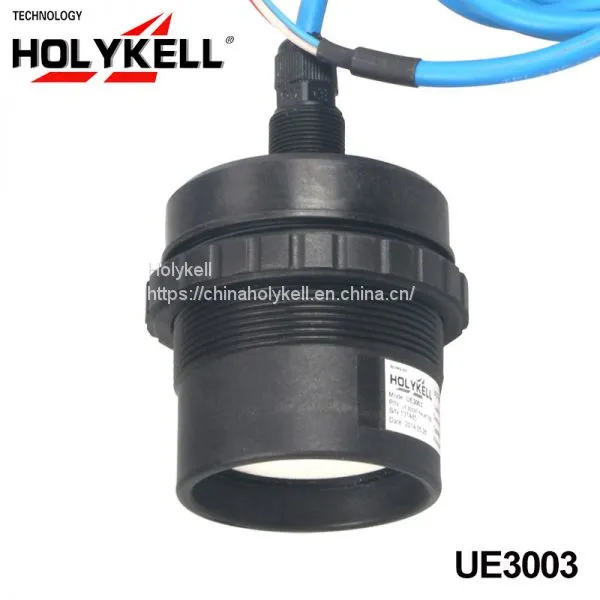

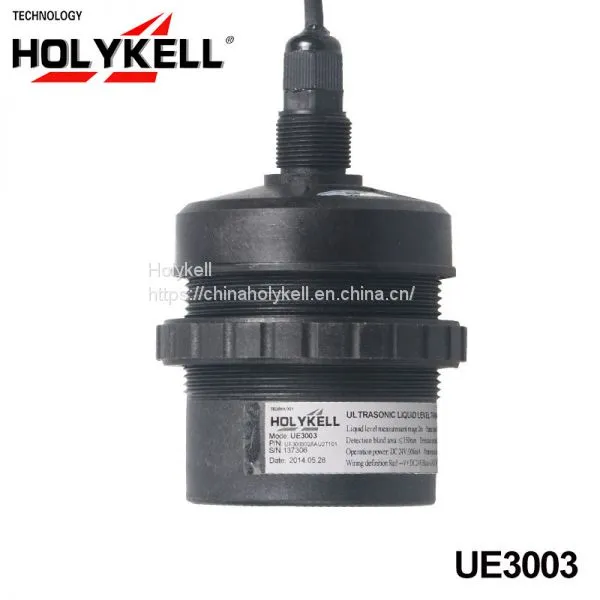

Ultrasonic level sensor Shell is made of solid texture and good NLEPF acoustic characteristics of synthetic material. The body is shape sophisticated aesthetics, waterproof, dust proof, and can adapt to the most of working conditions on site. On liquid cans, the walls, or equipment arm movement, it’s easy to install the UE3003 ultrasonic transmitter. There is no need of such tools as gongs nails, as long as there is a M68× 2.0 gongs hole. A very quick and easy installation, maintenance can be realized.

Why Choose Our Ultrasonic Level Sensor?

1.Support M68× 2.0 mm threaded into type installation and coil clamping type installation,

   the installation more convenient

2.Many model output optional customizable 4-20ma three-wire system, 1-5v, RS485 more customizable

3.Less than 9°C Beam angle design ,Resolution 3mm, less than 200ms responsible time to make sure more accuracy

4.Wide range of application,Sealed high-temperature toxic volatile,flammable and explosive of strongly corrosive liquid medium level measurement of non-contact ultrasonic sensors

5.Housing adopts the NLEPE synthetic material IP66 waterproof,Anti-Skid,Anti-corrosion,Anti-explosion structure

6.High quality terminal blocks ,Excellent anti-jamming is strong, long term stability and durability

7.Four highlighted LED display,Precise digital display,Clear reading ,Quick identity

What's the Specification Our Ultrasonic Level Sensor?

UE3003 Ultrasonic Level Sensors Specifications:

Power Supply: DC12V/300mA (UE3001); 24Vdc/300mA (UE3003, IP65-IP68 optional)

Range: 1,2,3,5 m, 7 m, 8m, 10m,12m, 15m.. (UE3001 Max 7 meters, UE3003 min 5 meters, max 15 meters optional.)

Operating temperature: 0 ~ 50 °C; (-20 to +70, -10 to +60°C Customized)

Storage temperature: - 40 °C ~ 85 °C

Blind Area: ≤ 300 ~ 800mm (according to different range and sensor)

Detection accuracy : 0.25 ~ 0.5% FS (at blind-fold drive away, 25 °C)

Output: 1: Voltage: 1 ~ 5V/ 0~5V

2: current: 4 ~ 20mA/ 0 ~ 20mA

3: serial port: RS485/ RS232

Protection class IP65 (default); IP67, IP68 (customized!)

Installation mounting size: M49 × 1.5 (UE3001), M68× 2.0 (UE3003).

Application attentions:

1) Measuring range and Requirements of blind zone.

2) Media type to be measured (Liquid or solid, such as: Water, sewage, mud, gasoline, diesel oil, toluene, sulfur

dioxide, ore,coal, cement, soybeans, wheat, corn, flour etc.)

If it is liquid: Is there liquid steam, mist, foam, wave, stirring, floating objects;

If it is solid: Is there a dust, granular or powder media is.

3) The minimum ~ maximum temperature and pressure of media.

4) Corrosion of media. If it is placed inside the jar, the jar needs to know the material, and if there is corrosion of the lining.

5) The need for anti-corrosion, explosion-proof, to split or an integrated one.

6) Working environment: exposure to the pond, cover the pond, lying tank, vertical tank, tank, pot is through atmospheric

pressure and so on.
