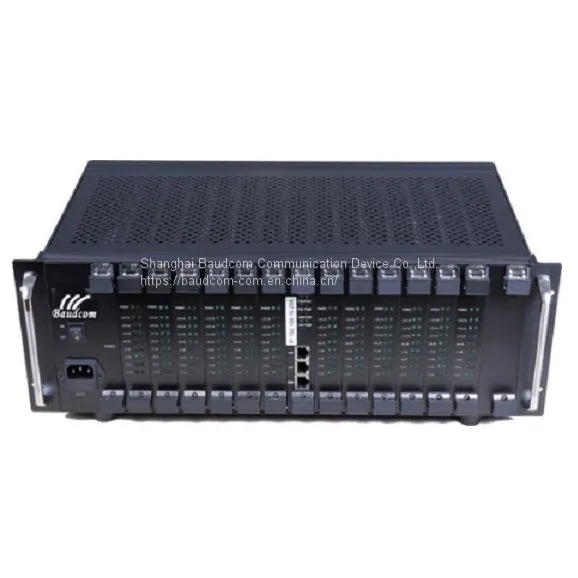

Help Center192 Ports Fxs Fxo Analog Voice VOIP Gateway / IPPBX
Related Products
Overview:
Analog Gateway/IPPBX locates at the interface between PSTN and IP to achieve the conversion between FXO/FXS and VoIP SIP，meanwhile complete the media stream transformation between the bearer channel of PSTN and IP.
Application:
Used for IPCC, IP Dispatch, Unify Communication, VoIP network, operators, and so on.
Specification:
· Signaling: SS7, PRI, R2, CAS, Q.SIG, V5.2, and DPNSS;
· VoIP Protocol: SIP and H.248;
· Codec: G.711 U-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726-16，G.726-32，GSM，GSM-EFR，ARM，ARM-WB, ILBC;
· Fax Protocol: T30, T38, pass through;
· Network Protocol: IP, NAT, ICMP, ARP, HTTP, BOOTP, FTP, TFTP, DHCP, PPPOE, SNMP, Diff-Serv;
· Advanced Voice Processing Technology: Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Echo Cancellation, DTMF, Caller ID, and Flexible input/output Gain Control.
Physical Capacity and Specification:
Application Topology:
Item |
BD-VOIP-192 FXS/FXO |
Analog fxs/fxo Port |
192 FXO\FXS |
E1 port (PCM) |
0-4 E1 |
VOIP IP Channels |
128 |
SIP Subscribers |
16-1024 |
Ethernet Interface |
2 (10/100/1000M Base-T |
CONSOLE |
1 (RS232 port） |
SIP Compatibility |
CISCO, Siemens, AVAYA, Huawei, ZTE, etc. |
Input voltage |
DC -48V or AC 110-240V(Redundancy) |
Power |
160W |
Telephone line transmission distance |
10KM |
Machine Dimension |
480mm*300mm*160mm (3.5U) |
Weight |
10.5KG |
Weight Work Environment |
0℃～50℃, Less 80% |
1. Basic application
2. Connection for two different places/offices via FXS VoIP Gateway
3. Function and Features of IPPBX
4. Solutions for IP call center
5.Example Application
