This series is single station mold-moving machine, high efficiency and stability, suitable for making 5-12L containers in small batch production. It adopts central-incoming extrusion die head which can be divided into single layer, double layer and transparent line type. Mold-moving adopts buffering throttle valve. Hydraulic system adopts differential design, mold-moving stable, high efficiency, and fast speed.
Die head: Special steel and center feed extrusion die head;
Extruder unit: adopt automatic temperature control unit of import,the screw united by
frequency motor,hard tooth surface gear box to achieve stepless speed regulation;
Clampling device: Across the basement type double linear guide and move mould
strengthen rigidity. Template is three bar with center clamping system
Hydraulic system: whole system adopt imported components, proportional control flow,
Fast response, more stable, power consumption without loss;
Electric controlling system: it adopts Japan programmable controller, touch
screen,the characteristic of it has direct manipulation and large information on board.
Control System
| Specifications | Unit | Single station |
| Machiner model | PXB65 | |
| Material | PE,PP,PVC,PA etc. | |
| Max container capacity | L | 5 |
| Number of die head | SET | 1,2,3,4,6 |
| Machine dimension ( L×W×H ) | M | 3.4x1.9x2.5 |
| Machine Weight | T | 4 |
| Clamping unit | ||
| Mold platen size ( W×H ) | MM | 338×380 |
| Max mold size ( W×H ) | MM | 338×350 |
| Platen opening storke | MM | 150-500 |
| Power | ||
| Oil pump driving total power | KW | 11 |
| Max driving total power | KW | 26 |
| Average energy consumption | KW | 15-18 |
| Blow pressure | Mpa | 0.6 |
| Extruder unit | ||
| Screw diameter | MM | 65 |
| Screw L/D ratio | L/D | 24:1 |
| Melting capacit for HDPE | KG/HR | 70 |
| Extruder power | KW | 15 |
| Die head | ||
| Max die-pin diameter | MM | 135 |
| Center distance of double die head | MM | 160 |
| Center distance of three die head | MM | 110 |
| Center distance of four die head | MM | 85 |

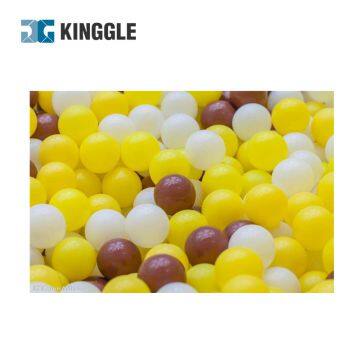

Suit product

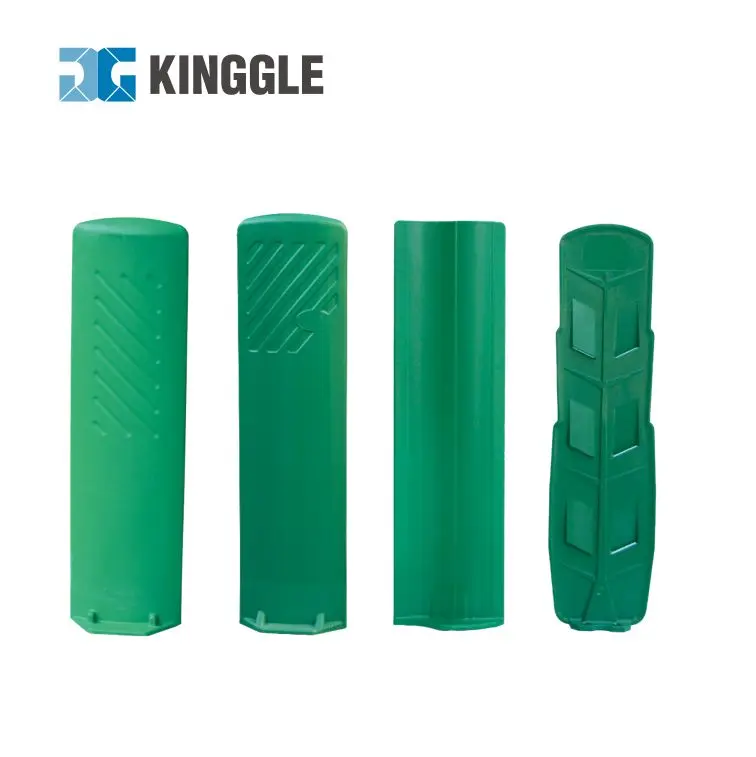

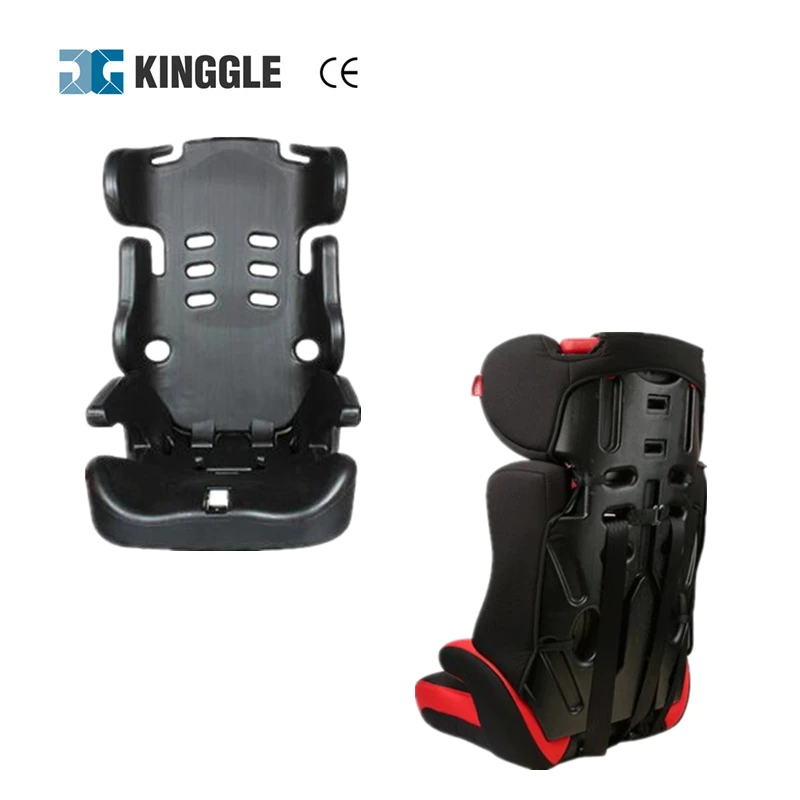

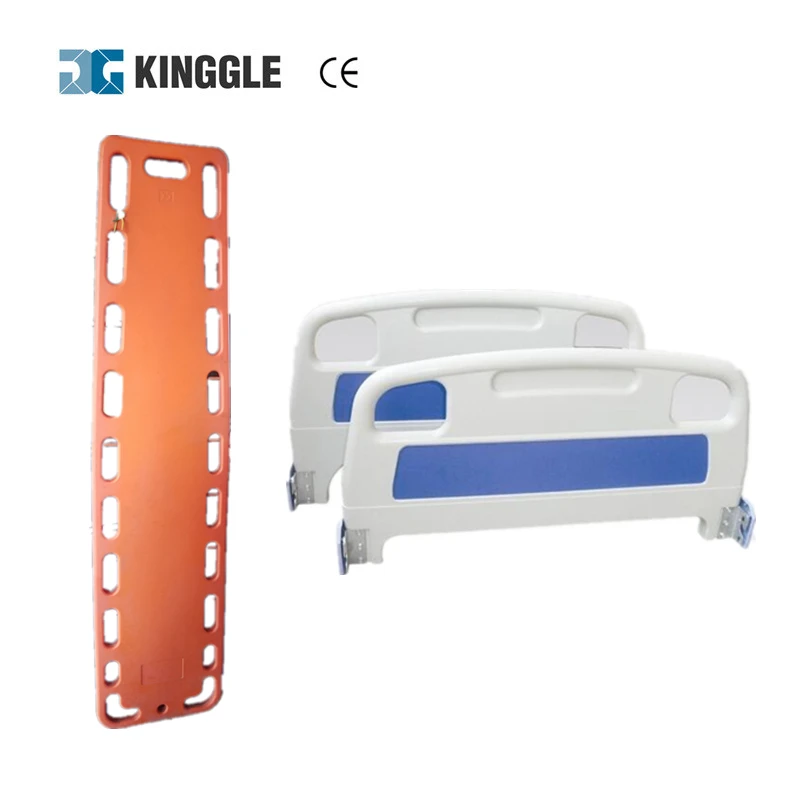

Other Product types
|
|
|
|
|
|
The warranty period for Kinggle machine is one year with a life long maintenance.
If the user requires special quality guarantee, other stipulated warranty period may be made after
mutual agreement.
1. Reply the email and take action in 24 hours; |
2. 100% Quality inspection before the shipment; |
3. Can trainning clients operator for free in seller`s factory |
4. Engineer overseas is avilable |
5. Blowing mould and injection mould made orginal |
6. Auxiliary machines for complate line. |
7.Custimized design as requirements. |
8. Introduce our engineer come to customer’s factory working! |
[1] Q: Are you a factory or trading company?
A: We are a factory.
[2] Q: Where is your factory located?
A: Our factory,near Shanghai & Ningbo port, Ningbo ,zhejiang .
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need”
Kinggle machinery factory focuses on quality,quality control from beginning to the end. Every piece of goods
is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee.
[5] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes , we can provide full blow molding machine line ,before and after sales service
[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
[7] Q: Can you offer big size blow molding machine? Can you make multilayers and multi-colors?
A: Yes,we can offer you up to 2000L blow molding machine,our factory have patent for the multilayers and multi-colors!
