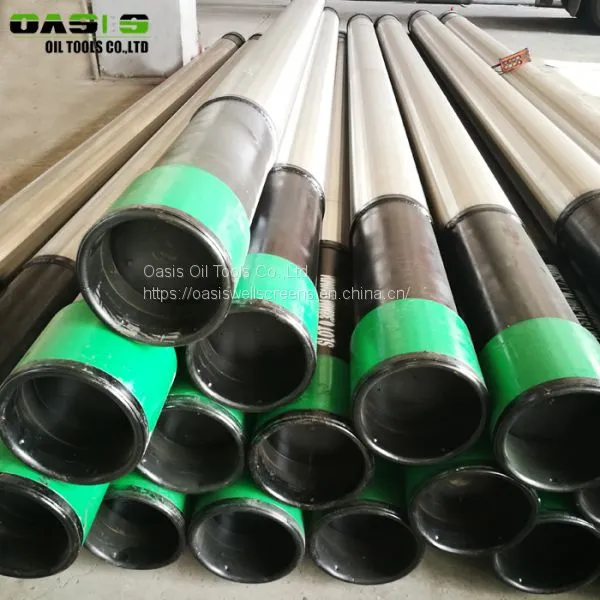

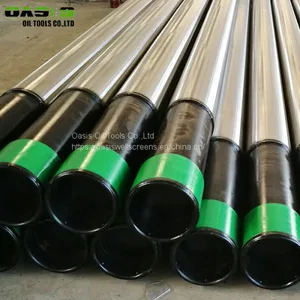

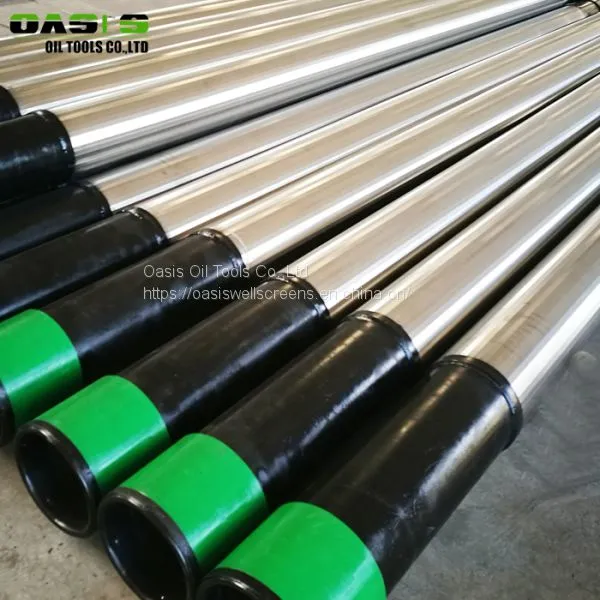

Stainless Steel Pipe Based Well Screens for Water Well Drilling

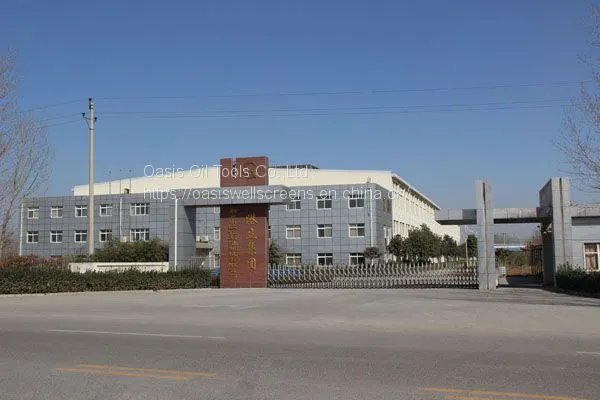

Company Profile:
Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City.After many years' efforts, now OASIS has developed into a professional and famous manufacturer, which design, manufacture and sell Stainless steel and galvanized carbon steel water well screens /johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens, and other water, oil and gas well filtering products as well as steel tubes and pipes and industrial parts.
Specifications of Stainless Steel Pipe Based Well Screens for Water Well Drilling
1.Material:Galvanized carbon steel, stainless steel (304,304L,316,316L etc.)
2.Diameter:168.3mm or other required size
3.Slot Size (mm): 0.5 or as per customers' requirement
4.Unit length up to 6m, 5.8m fit for the container
5.Open area 14% minimum
6.End Connection:Welding (beveled end), thread coupling(STC,LTC,BTC) or flange
7.Surface treatment:Galvanized, painted, polish, pickling & passivation,etc.
8.Packing:Bubble bag and woven bag, in bundle or unbundle or in wooden cases.
| Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request | |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | up to 6 meters. |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |

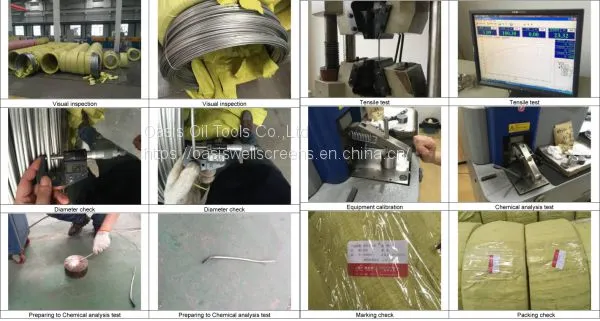

Raw Material Incoming Inspection of Stainless Steel Pipe Based Well Screens for Water Well Drilling
Prodcution Process of Stainless Steel Pipe Based Well Screens for Water Well Drilling

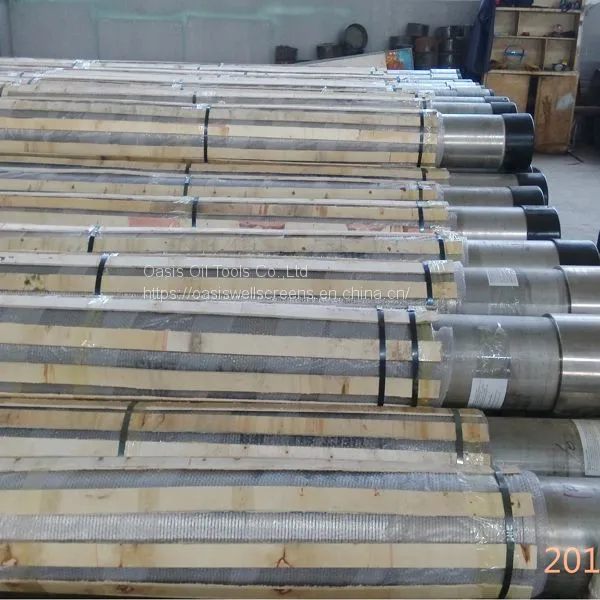

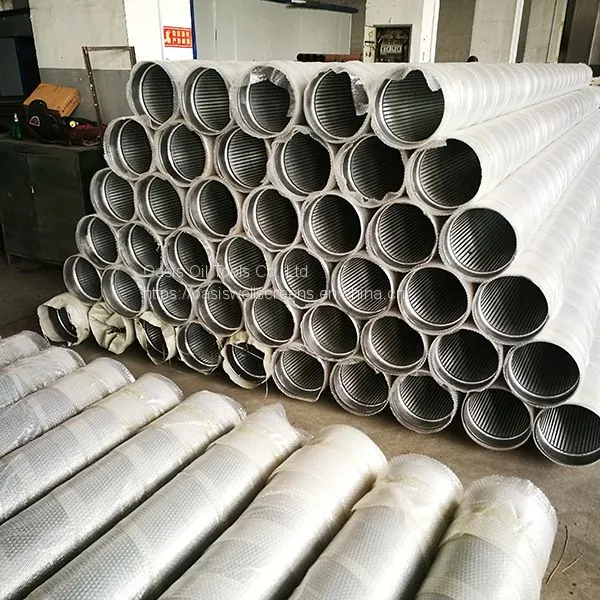

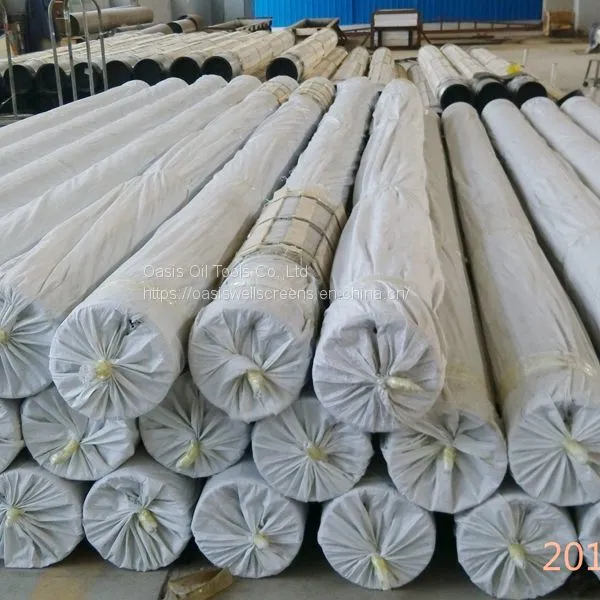

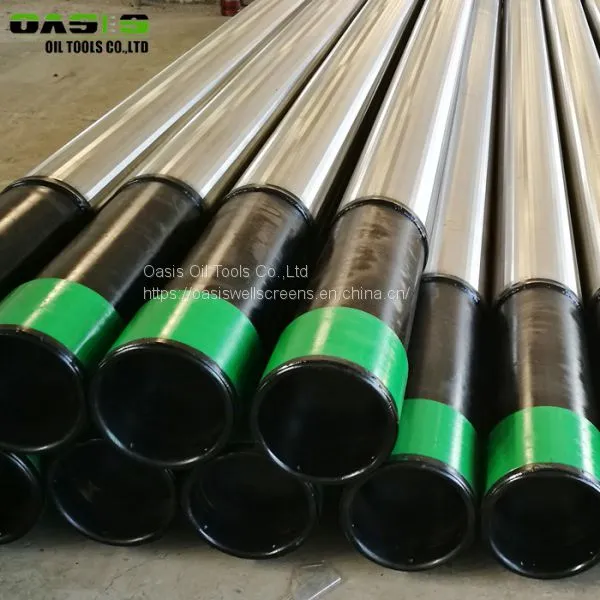

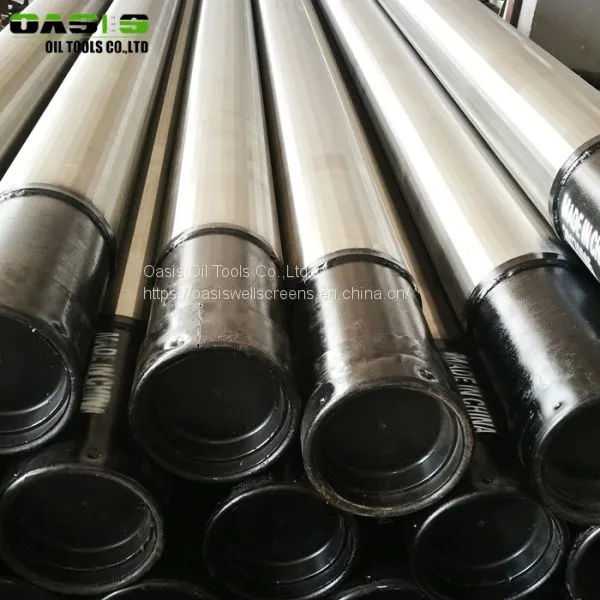

Product and Packing Details of Stainless Steel Pipe Based Well Screens for Water Well Drilling

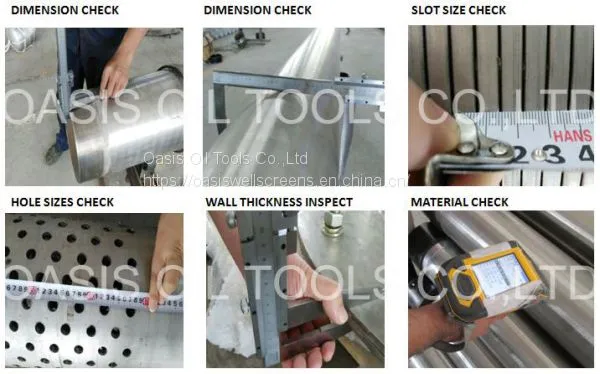

Inspection and Test of Stainless Steel Pipe Based Well Screens for Water Well Drilling:
1. All Dimensions of water well sand filter will be checked by our quality inspector, and they also can be inspected by Third Party Inspections or representative appointed by buyer.
2. Wall thickness of coupling material is inspected by Ultrasonic inspection method, and they also be made the Ultrasonic flaw detection
3. Do Destructive Collapse Test and collaspe Strength Test before shipment.
4. If required, the screens will be made pickling and passivation.
5. The whole manufacturing process can be monitored by Third Party Inspection Company and representative appointed by buyer.
6.The screens will be arranged the Pre-shipment Inspection if required.
Any needs for our Stainless Steel Pipe Based Well Screens for Water Well Drilling, please feel free to contact me.
