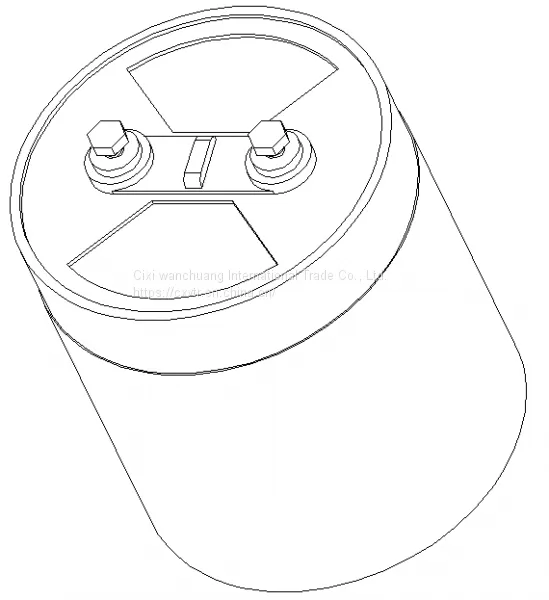

Help CenterMKMJ SERIES METALLIZED FILM PULSE CAPACITOR
Related Products
-
HDMI AM TO AF CABLE, MOLDING PLUGUS$ 0.5 - 999MOQ: 100 Pieces -
Oval Power CapacitorUS$ 0.5 - 999MOQ: 100 Pieces
-
DC SUPPORT ENERGY STORAGE CAPACITORUS$ 0.5 - 999MOQ: 100 Pieces
-
PE PP THICK BOARD EXTRUSION LINEUS$ 0.5 - 999MOQ: 100 Pieces
-
HDPE LARGE-DIAMETER STEEL WINDING PIPE EXTRUSION LINEUS$ 0.5 - 999MOQ: 100 Pieces
FOB Price: US $0.5 - 9,999 / Piece
· Min.Order Quantity: 100 Piece/Pieces
· Supply Ability: 10000 Piece/Pieces per Month
· Port: Ningbo/Shanghai
· Payment Terms: L/C,D/A,D/P,T/T
Summary
Metallized film pulsed (energy storage) capacitors can charge for a longer period of time and discharge in a very short time, resulting in a huge pulse power. The pulse power is obtained by a charged pulse capacitor bank, which is obtained by a short-term oscillation discharge of the main reactor. The pulse capacitor bank is a charging device with little power before the test. It is charged for a longer time and the oscillation discharge is only It is tens of milliseconds, which greatly improves the ratio of test power and power supply, and improves economic efficiency.
Application Area:
Widely used in magnetizing machines, demagnetizers, laser power supplies, medical devices, energy storage welding machines, etc.; DC high-voltage equipment, rectification and filtering device oscillation circuit, continuous pulse device, impulse voltage generator, inrush current generator, impact voltage divider And other non-continuous pulse devices.
Main Feature:
Low power consumption, suitable for high power, high current, high pressure, high surge applications;
· Has the best capacity and volumetric performance ratio;
Small change with temperature, long service life;
· Maximum peak voltage;
High energy storage, high pulse current capability
Self-recovery characteristics, stable performance;
Low inductance, low ESR;
• The housing material is stainless steel or cold rolled and easy to install.
Specifications: ·Capacitance Range：C=10μF～500μF；
·Capacitance Tolerance：±5% this could be lower as customer’s request.
·Rated Voltage：Un=1KV～5KV；
·Equivalent series resistance：ESR≤5mΩ
·Anti-peak voltage up to 80%；
·Charge and discharge times：Reach 2 million times
·Dissipation Factor：tgδ≤0.002（100Hz）；
·Operating temperature range：-40℃～+75℃；
·Application: Anywhere.
·Working Standard：JB/T8168 or as customer’s request.
Specification:
Model |
Voltage（KV） |
Capacity （μF） |
MFO(D)1K001007 |
1.0 |
1000 |
MFO(D)1K002007 |
1.0 |
2000 |
MFO(D)1K005007 |
1.0 |
5000 |
MFO(D)1K205006 |
1.2 |
500 |
MFO(D)1K201007 |
1.2 |
1000 |
MFO(D)1K202007 |
1.2 |
2000 |
MFO(D)1K505006 |
1.5 |
500 |
MFO(D)1K501007 |
1.5 |
1000 |
MFO(D)1K501507 |
1.5 |
1500 |
MFO(D)1K602006 |
1.6 |
200 |
MFO(D)1K605006 |
1.6 |
500 |
MFO(D)1K601007 |
1.6 |
1000 |
MFO(D)1K601507 |
1.6 |
1500 |
MFO(D)2K002006 |
2.0 |
200 |
MFO(D)2K005006 |
2.0 |
500 |
MFO(D)2K001007 |
2.0 |
1000 |
MFO(D)2K205006 |
2.2 |
500 |
MFO(D)2K201007 |
2.2 |
1000 |
MFO(D)2K502006 |
2.5 |
200 |
MFO(D)2K505006 |
2.5 |
500 |
MFO(D)3K002006 |
3.0 |
200 |
MFO(D)3K005006 |
3.0 |
500 |
MFO(D)4K002006 |
4.0 |
200 |
MFO(D)4K005006 |
4.0 |
500 |
MFO(D)4K502006 |
4.5 |
200 |
MFO(D)4K505006 |
4.5 |
500 |
MFO(D)5K002006 |
5.0 |
200 |
MFO(D)5K005006 |
5.0 |
500 |
The technical data is for reference only. We would design, produce other requested pulse capacitor. | ||
