Help CenterGeevo ab Valve, Split Butterfly Valve
Product Spotlights
Widly using in Pharmaceutical Industry, food industry, electrical industry, chemical industry and nuclear.
Related Products
-
Valve Sealing SeatNegotiableMOQ: 1 Set -
ab Valve, Sterile API Containment TransferUS$ 1 - 20000MOQ: 1 Set
-
Split Butterfly Valve, Powder Containment TransferUS$ 1 - 20000MOQ: 1 Set
-
CIP/SIP Sbv, Sterile Material Containment Transfer ValveUS$ 1 - 20000MOQ: 1 Set
-
Powder Containment Transfer ValveUS$ 1 - 20000MOQ: 1 Set
αβ Valve, split butterfly valve, ab valve -Conventional
Containment transfer technology
Fast and secure transfer for large quantities
Containment
Economic solution

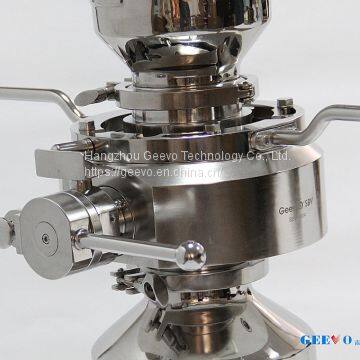

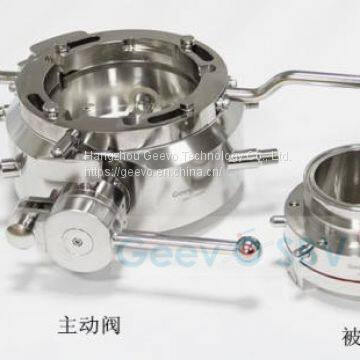

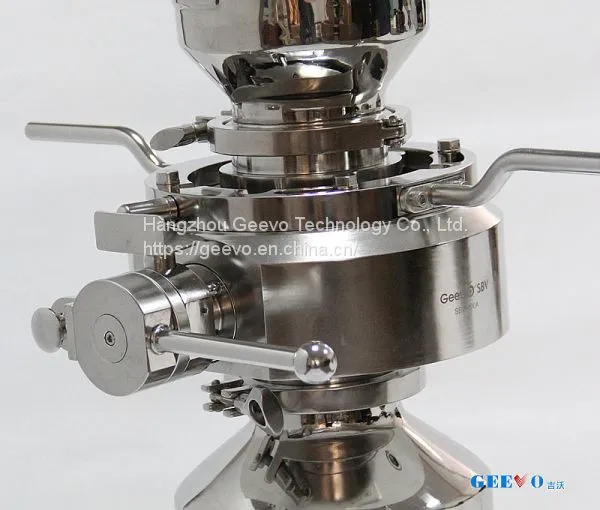

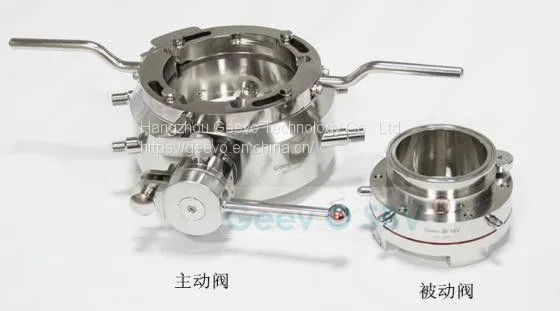

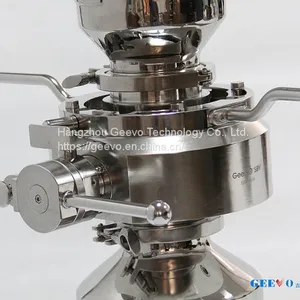

An Alpha Beta valve (Split butterfly valve) system is made up of an active and a passive split valve. The transfer of material from one container to another container is being carried on with seal condition, and the transfer process guarantees the sterile situation won't be destroyed or avoid being spread of the toxic materials in the container.
αβ valve -Conventional don't set isolation valve inlet and outlet, can't clean/sterilizer two disk exposed faces in place. People can wash and sterilization the exposed face by manual work to reach the normative requirement of material transfer.
Purpose of use
a. Protection of sterile product-Guarantee transfer process of sterile product avoiding being effected by outside microbe
b. Operator protection- Avoiding leakage of toxic materials during transfer process which is harmful for people
c. Eliminate loss of product yield during transfer
d. Effective dust control during transfer process
e. Reduce the potential of product cross-contamination
f. Save the cost on equipment
Application case
-Sterile API transfer and subpackage
-Isolator charging and discharging
-Contained dispensing, charging, discharging, sampling and milling
-Containment transfer of sterile rubber plug
-Transfer toxic product
Application
Pharmaceutical Biotechnology Chemical Food Beverage Nuclear CDC
Technical Parameter
- Valve disc surface sealing by metal to metal
-Body material: 316L stainless steel
-Sealing material: food grade FKM (meet FDA)
-Standard clamp interface, accept customized corresponding connection
-Outside of container operate valve switch and product transfer
-Comply with the new version of GMP, FDA, EU production requirements
Specification
Standard size: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm
Connections: PN6, PN10, ANSI#150, Tri-Clamp
Customized size: Accept customized non-standard size
Type |
SBV50 |
SBV65 |
SBV80 |
SBV100 |
SBV150 |
SBV200 |
SBV250 |
Imperial system |
2" |
3" |
3 1/2" |
4" |
6" |
8" |
10" |
External size of interface |
64mm |
91mm |
106mm |
119mm |
167mm |
218mm |
268.5mm |
