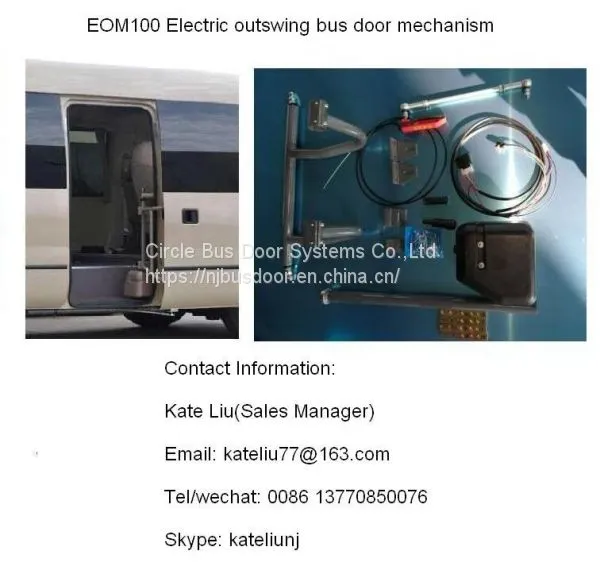

Help CenterElectric Swing Out Bus Door Opening Mechanism 12V/24 RH/LH, Bus Outswing Door Opener (EOM100)
Related Products
-
Pneumatic Out Swing Bus Door Opening Mechanism 12V/24V RH/LH, Bus Outswing Door Opener (POM100)US$ 100 - 500MOQ: 1 Piece -
Electric Outswing Bus Door Pump,emergency Release,anti-clamping(EOM100)US$ 100 - 500MOQ: 1 Piece
-
Pneumatic Folding Bus Door Opening Mechanism, Bus Folding Door Opener (BDM200)US$ 100 - 500MOQ: 1 Piece
-
Electric Folding Bus Door Opening Mechanism 12V/24V RH/LH, Bus Folding Door Opener (BDM100)US$ 100 - 500MOQ: 1 Piece
-
Pneumatic Bus Baggage Door System,Automatic Bus Luggage Door System (PLM100)US$ 100 - 500MOQ: 1 Set
Application: shuttle bus, light and medium coach, utility vehicle, limo-bus and midi-bus.
System Component: Rotary actuator assembly, Shaft assembly
1) The Actuator assembly consist of welding motor structure and unit assemblage of pivoted arm.
2) The shaft assembly is designed for easy installation and maintenance.
Product Feature
Operating principle:
1)Auto operation :It uses direct current motor as power supply, controlled by power switch. The axle of motor rotates clockwise(or anticlockwise).The rotation is decelerated by a turbine-worm gear and two pairs of other gears. When there is rotary moment on the output axes of operator, the door will be opened(closed).After the door and door frame touch, screw lifting mechanism of pivoted arm will begin work, the door will be lifted, and the four locks installed on the door and door frame will be locked.
2)Emergency release: In case of emergency, put the red handle in "manual" position, the door can be opened by hand easily.
3)Prevent from clipping: In the process of closing door, if something or somebody blocks it, the prevention from clipping will work immediately, and the door will open automatically.
Product Specification
Specified voltage DC12V DC24V
Electric motor specified power 40W 40W
Working speed 5r/min 5r/min
Max lifting height of the door 14mm 14mm
Rotary moment More than 1000N.m More than 1000N.m
Lifting load Less than 1000N Less than 1000N
Current of working Process of revolution-3.5A Process of revolution-3A
Process of lifting-MAX 7A Process of liftin-MAX 6A
Allowed ambient temperature -40°C~+55°C
Durability of mechanism 500000
Durability of electric 500000
