Help CenterHydraulic Extractor For Stop End Pipe Round Type 600mm-800mm for Diaphragm Wall Stop End Pipe Extractor
Related Products
-
840/760 mm Casing Drive Adapter With Cardanic Joint for Sany 285 Drill Rig Used for Bored PileUS$ 1000 - 3000MOQ: 1 Piece -
D1000 Casing Drive Adapter With Cardanic Joint for Sany 285 Rotary Drill Rig for Bored Pile ,secant PileUS$ 1000 - 3000MOQ: 1 Piece
-
D1500 Casing Drive Adapter With Cardanic Joint for Sany 285 Rotary Drill Rig for Bored Pile ,secant PileUS$ 1000 - 3000MOQ: 1 Piece
-
D1200 Casing Drive Adapter With Cardanic Joint for Sany 285 Rotary Drill Rig for Bored Pile ,secant PileUS$ 1000 - 3000MOQ: 1 Piece
-
D800 Casing Twister With Cardanic Joint for Sany 285 Rotary Drill Rig for Bored Pile ,secant PileUS$ 1000 - 3000MOQ: 1 Piece

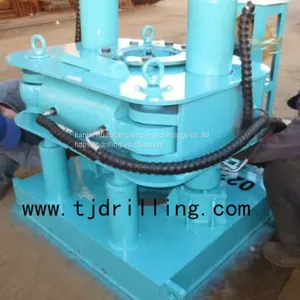

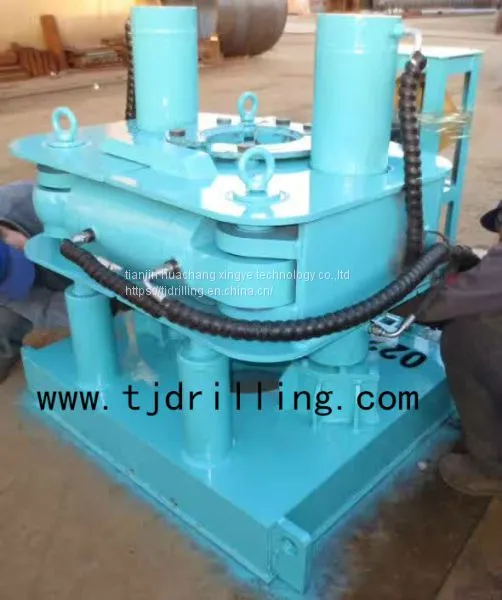

Hydraulic extractor for stopend pipe round stop end pipe size 800-2500mm we have two type diaphragm wall stop end extracor one is small type size from 600mm-800mm, another is large type size 800-2800mm hydraulic extractor has been designed for the extraction of stop end pipes from diaphragm wall foundation sunk to depths of up to 50/60 meters. The clamp assembly it’s in 3 articulated segments, constructed to provide appropriate tolerance and grip on the casing tube.
the following is 1200mm one 2, TECHNICAL SPECIFICATION
NAME UNIT PARAMETER REMARK
LIFT CYLINDER QUANTITY PC 4 CYLINDER MAX STROKE mm 1000 HOLD CYLINDER QUANTITY PC 1 MAX HOLDER FORCE t 150 MAX CASING DIAMETER mm 1200 RATED LIFT FORCE t 400 BELOW 30MPa
WEIGHT kg 6100 OUT SIZE(L×W×H) m 3x2.2x2M TRANSPORT SIZE
HYDRAULIC POWER STATION MOTOR POWER STATION
MOTOR TRIPLE-PHASE ASYNCHRONOUS MOTOR
POWER Kw 45
SPEED rpm 1500
FUEL SUPPLY L/min 100
OPERATION PRESSURE Bar 300
Hydraulic extractor for stopend pipe round stop end pipe size 800-2500mmOIL TANK CAPACITY L 850
Tianjin huachang xingye technology co ltd
Email info@tjdrilling.com whatsapp 008618902059907
Send Inquiry to This Supplier
