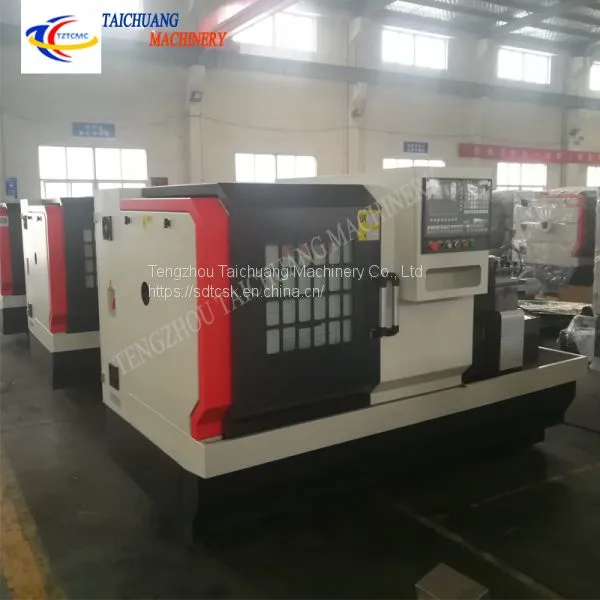

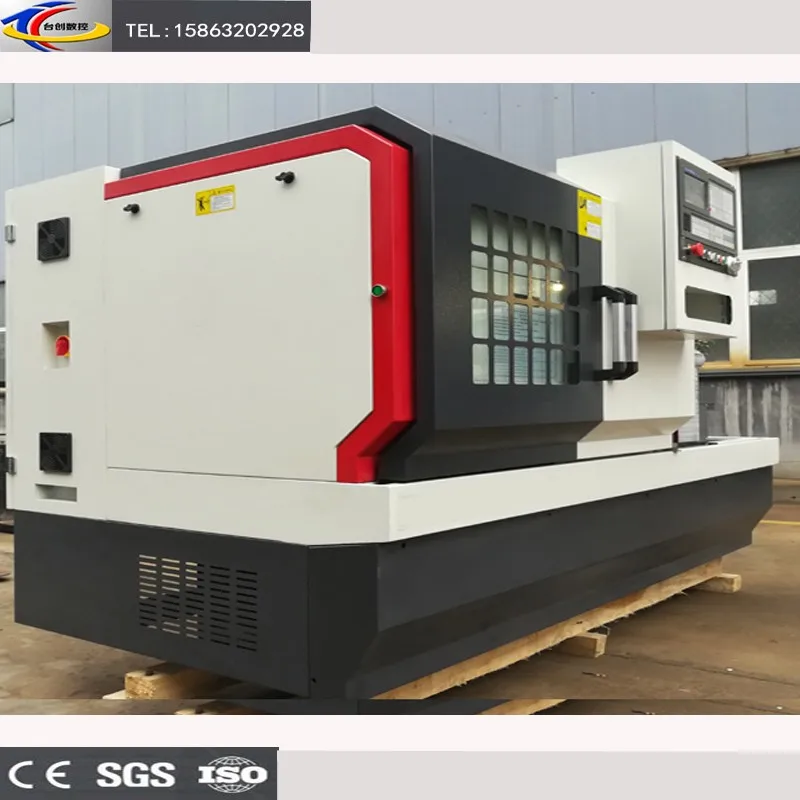

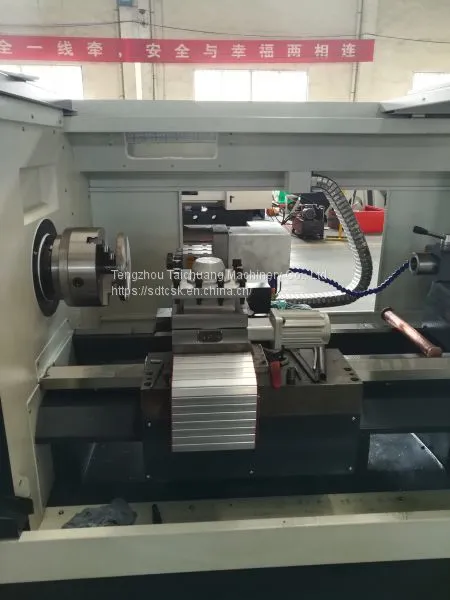

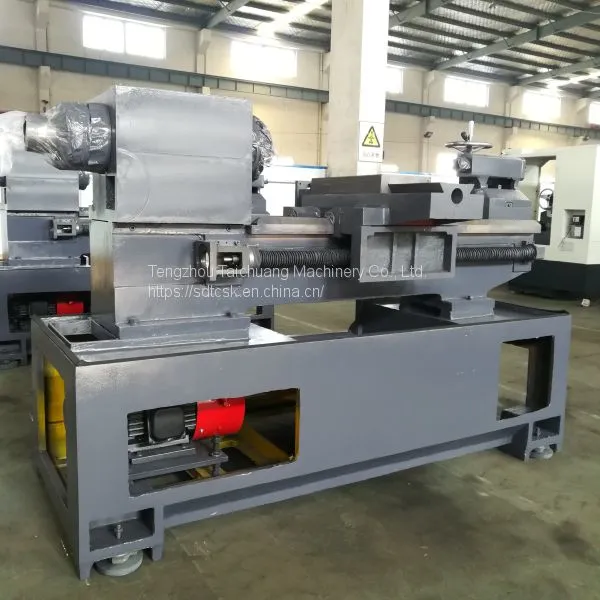

Model:mini cnc lathe machine tool CK6150 cnc machine
Main technical parameter
cnc lathe |
CK6150 |
|
Capability |
Max. swing dia. over bed |
500mm |
Max. swing dia. over cross slide |
250mm |
|
Max. cutting dia. |
500mm |
|
Max. processing length |
850mm/1500mm |
|
Spindle |
spindle bore |
130mm |
Spindle taper |
MT6# |
|
Spindle speed |
1800rpm |
|
Spindle nose |
A2-8/11 |
|
Main motor power |
7.5Kw |
|
X/Z axis |
X/Z travel |
300/900 1600mm |
X/Z mini setting unite |
0.001mm |
|
X/Z motor torque |
4/6N.m |
|
X/Z repeatability |
0.005/0.005mm |
|
X/Z position accuracy |
0.006/0.006 m/min |
|
Tailstock |
Tailstock sleeve dia. |
75mm |
Tailstock sleeve travel |
200mm |
|
Tailstock taper |
MT5# |
|

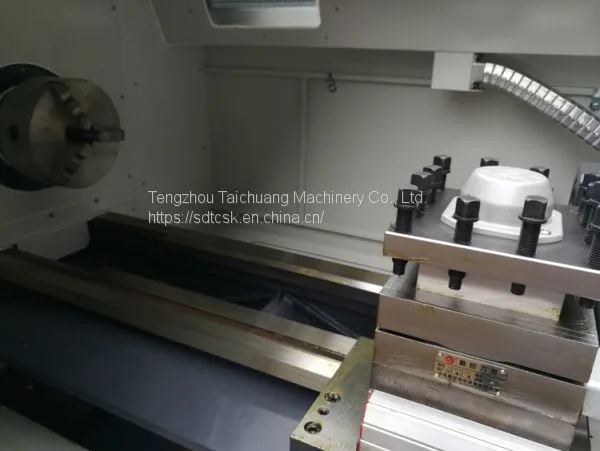

Tool holder |
Type |
4-position electric type |
Tool bar size |
25*25mm |
|
Tool holder repeatability |
0.004 |
|
Dimension |
2950*1520*1750mm |
|
Net weight |
2850kg |
|
Tengzhou Taichuang Machinery Co., Ltd. is a production enterprise specializing in the production of many series of products, such as lathe, milling machine, drilling machine
and so on. There are more than 100 employees, including 6 senior engineers and 43 technicians.
The main products are: CNC lathe, CNC milling machine, machining center, lathe, milling machine, drilling machine.
Hot-sale product
A: We are factory.
Q:Can you provide customized machine or SPM (Special purpose machine)?
A:Yes, We can customize machines according to customer requirements.
Q:What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period
of 12 months, starting on the machine’s bill of lading date.
Q: How long is your delivery time?
A: Normally the delivery time is about 20-30 working days. All our machines are
packed with sea worthy package.
Q: What is your terms of payment ?
A: 30 percent of the payment in advance, pay full payment before delivery.
