Heavy Duty Wire Mesh Container – Foldable & Stackable Design
Two wire containers stacked and two wire containers foldable.

WMC-01: Wire containers are stackable and foldable.

Wire mesh container, also called wire container, collapsible wire container, is made of low carbon steel wire with hot dipped galvanized or colorful PVC coating surface, which is anti-corrosion and rust.

These wire containers are mainly used in warehouse, supermarket or other application scenarios to store or transport goods. They are foldable and stackable design for saving space and transportation cost especially in return travel or long-time wire containers storage.

In addition, folding wire containers with mesh opening are visible, so there is no need to open the container to confirm what goods it is inside the container.

We are a professional supplier of wire mesh container, we can produce and customize wire containers according to your requirements:

  • Appearance design.

  • Door design.

  • Foot design.

  • With sign board or not.

  • With lid or not.

Appearance Design

Folding wire containers are mainly divided into 2 types:

  • General type. General type is most widely used and can meet your general needs.

  • Wire containers with PP sheet type. PP sheet type is mainly used to avoid loss of small items.

A silver wire container with J leg on white background.

WMC-02: General type.

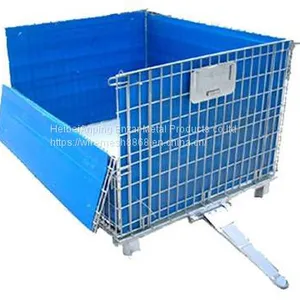

A silver wire mesh container with blue PP sheet on white background.

WMC-03: PP sheet wire container type.

Door Design

Wire containers can be divided into 4 types according to door design. They are as follows:

  • 1/2 drop gate.

  • Full drop gate.

  • Full drop gate on both sides.

  • Swing gate.

A silver wire container with 1/2 drop gate open on white floor.

WMC-04: Wire container with 1/2 drop gate.

A silver wire mesh container with full drop gate open on ground.

WMC-05: Wire container with full drop gate.

A silver wire mesh container with full drop gates open on ground.

WMC-06: Full drop gates open.

A silver wire container with two swing gates open on opposite sides on ground.

WMC-07: Swing gates.

Foot Design

Wire mesh containers can be divided into 2 categories according to the base feet. They are as follows:

  • J-leg base feet.

  • J-leg base feet with wheels.

  • Forklift base feet with J-leg.

  • U-leg base feet.

  • Wooden pallet.

  • Whole wooden pallet.

A wire container with J-leg on ground.

WMC-08: J-leg base feet.

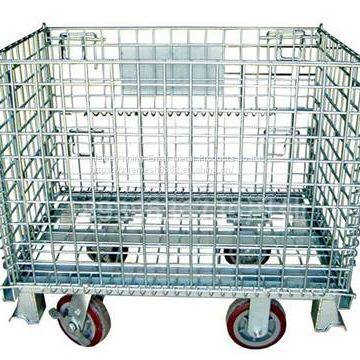

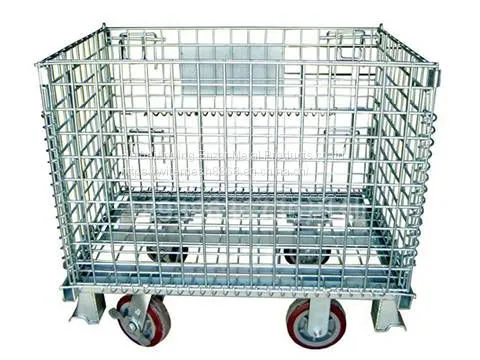

A wire mesh container with J-leg and wheels on white background.

WMC-09: J-leg feet with wheels.

A folding container with forklift and J-leg feet.

WMC-10: Forklift and j-leg feet.

A wire container with U-leg feet on white background.

WMC-11: Wire container with U-leg feet.

A wire container with forklift wooden pallet.

WMC-12: Wire container with wooden pallet base.

A folding wire container with whole wooden pallet and forklift on ground.

WMC-13: Wire container with whole wooden pallet base.

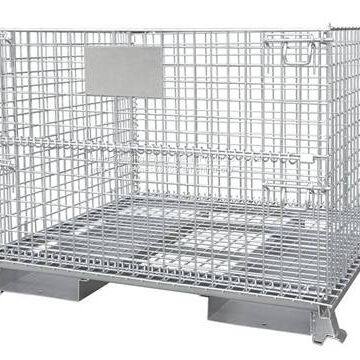

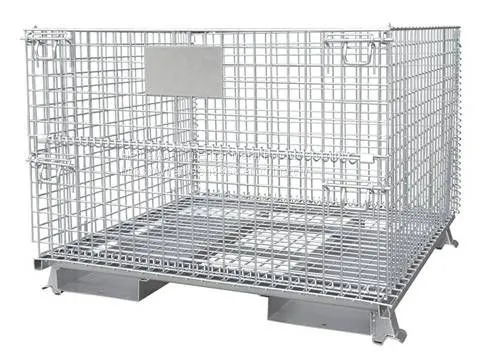

With Signboard or Not
A wire container with signboard on ground.

WMC-14: With signboard.

A wire container without signboard on white background.

WMC-15: Without signboard.

With Lid or Not

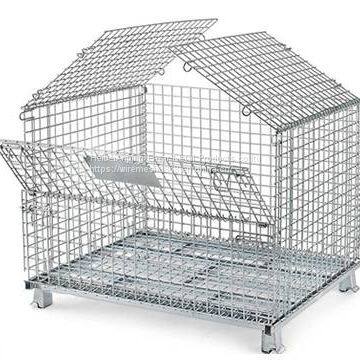

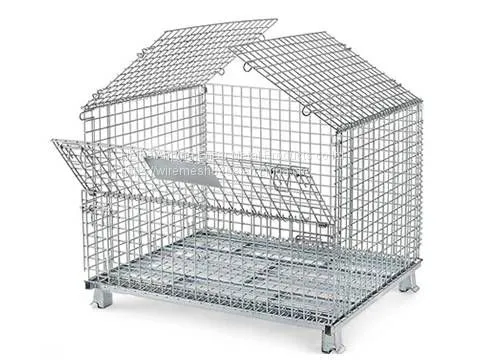

A wire container with lid in one hand on ground.

WMC-16: With lid.

A wire container without lid on white background.

WMC-17: Without lid.

Features

  • Full welded wire container for high load capacity.

  • Electro-galvanized, hot-dip galvanized, PVC coating or painting surface treatment for corrosion and rust resistance.

  • Foldable and stackable design for saving space and transportation cost.

  • Mesh opening structure for high visibility of content.

  • Drop gate for convenient content access.

  • High strength and low carbon steel wires are for fireproof.

  • Long service life.

A full welded wire mesh container and detailed picture of wire mesh on white background.

WMC-18: Full welded wire container for high load capacity.

A silver wire mesh container and detailed picture of sliding lock on white background.

WMC-19: Sliding lock for easy connection with drop gate.

A silver wire mesh container and detailed picture of u-shape groove at the bottom.

WMC-20: U-shape groove to avoid side panel sliding.

A wire container and a folding wire container on white background.

WMC-21: Wire mesh container is foldable to save space and transportation cost.

Specification

The Dimension of Wire Mesh Container
Item External Dimension (L × W × H) (mm) Internal Dimension (L × W × H) (mm) Wire Diameter (mm) Mesh Opening (mm) Loading Capacity (kg)
CWMC-01 800 × 600 × 640 750 × 550 × 500 4.8 50 × 50 400
CWMC-02 800 × 600 × 640 750 × 550 × 500 5.3 50 × 50 600
CWMC-03 800 × 600 × 640 750 × 550 × 500 5.6 50 × 50 700
CWMC-04 800 × 600 × 640 750 × 550 × 500 5.8 50 × 50 800
CWMC-05 800 × 600 × 640 750 × 550 × 500 5.8 50 × 100 600
CWMC-06 800 × 600 × 640 750 × 550 × 500 6.3 50 × 50 1000
CWMC-07 1000 × 600 × 640 950 × 550 × 500 6.0 50 × 50 1000
CWMC-08 1000 × 800 × 840 950 × 750 × 700 6.0 50 × 50 1200
CWMC-09 1200 × 800 × 840 1150 × 750 × 700 6.0 50 × 50 1200
CWMC-10 1200 × 1000 × 890 1150 × 950 × 750 6.0 50 × 50 1500
CWMC-11 1000 × 800 × 840 950 × 750 × 700 4.8 50 × 50 600
CWMC-11 1000 × 800 × 840 950 × 750 × 700 5.3 50 × 50 800
CWMC-12 1000 × 800 × 840 950 × 750 × 700 5.6 50 × 50 1000
CWMC-13 1000 × 800 × 840 950 × 750 × 700 5.8 50 × 50 1200
CWMC-14 1000 × 800 × 840 950 × 750 × 700 5.8 50 × 100 1000
CWMC-15 800 × 600 × 640 750 × 550 × 500 6.4 50 × 100 800
CWMC-16 1000 × 800 × 840 950 × 750 × 700 6.3 50 × 50 1500
CWMC-17 1000 × 800 × 840 950 × 750 × 700 6.4 50 × 50 1500
CWMC-18 1000 × 800 × 490 1000 × 800 × 350 6.4 50 × 50 1000
CWMC-19 1200 × 1000 × 890 1150 × 950 × 750 6.4 50 × 50 2000
CWMC-20 1200 × 800 × 840 1150 × 750 × 700 6.0 50 × 50 1500
CWMC-21 1200 × 1000 × 890 1150 × 950 × 750 5.6 50 × 50 1300
CWMC-22 1200 × 1000 × 890 1150 × 950 × 750 5.8 50 × 50 1500
CWMC-23 1200 × 1000 × 890 1150 × 950 × 750 5.6 50 × 100 800
CWMC-24 1200 × 1000 × 890 1150 × 950 × 750 5.8 50 × 100 1000
CWMC-25 800 × 500 × 540 750 × 450 × 400 4.8 25 × 50 500
CWMC-26 1200 × 1000 × 890 1150 × 950 × 750 6.3 50 × 50 2000
CWMC-27 1200 × 1000 × 890 1150 × 950 × 750 5.6 50 × 100 800
CWMC-28 1000 × 800 × 840 950 × 750 × 700 4.8 50 × 50 500
CWMC-29 1200 × 1000 × 890 1150 × 950 × 750 4.8 50 × 50 500
CWMC-30 1200 × 1000 × 890 1150 × 950 × 750 6.0 100 × 100 500
CWMC-31 1000 × 800 × 840 950 × 750 × 700 6.4 50 × 100 1000
CWMC-32 1200 × 800 × 840 1150 × 750 × 700 6.4 50 × 100 1000
CWMC-33 1200 × 1000 × 890 1150 × 950 × 750 6.4 50 × 100 1200

Application

Wire mesh container is widely used in warehouse, supermarket and other commercial industries, such as food, construction and clothing industries to store or transport equipment, clothing, parts and so on.

A wire mesh container is filled with parts.

WMC-22: Wire container with parts.

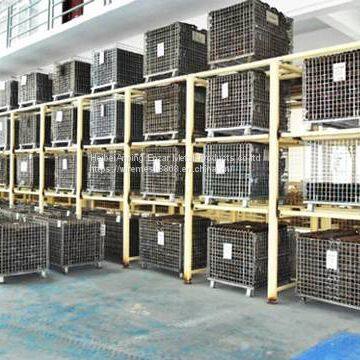

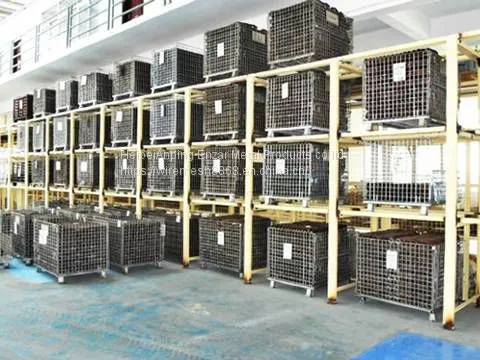

Many folding wire containers is filled with good in big ware house.

WMC-23: Wire containers lined on shelf.

6 wire containers are filled with auto parts.

WMC-24: Wire container with auto parts.

Wire container is filled with posts in a corner.

WMC-25: Wire container with posts.

Many wire containers lined stacked in supermarket.

WMC-26: Wire containers in supermarket.

Several wire containers are filled with clothing.

WMC-27: Wire containers with clothing.
