365nm Area LED UV Glue Curing Lamp

365nm Area LED UV Glue Curing Lamp photo-1

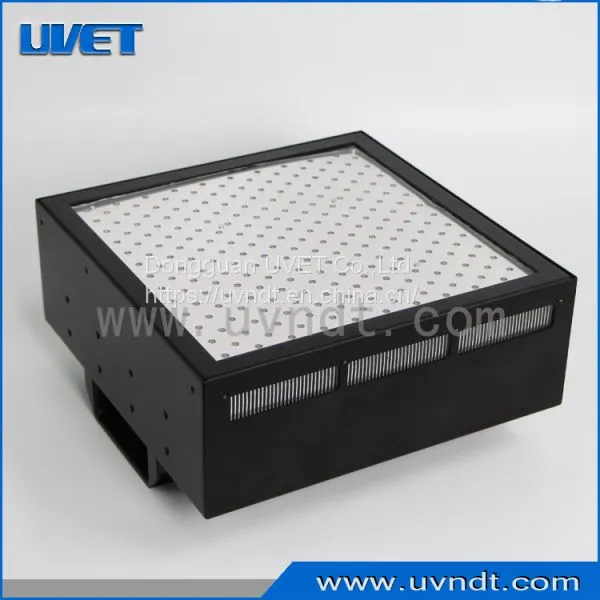

365nm Area LED UV Glue Curing Lamp photo-2

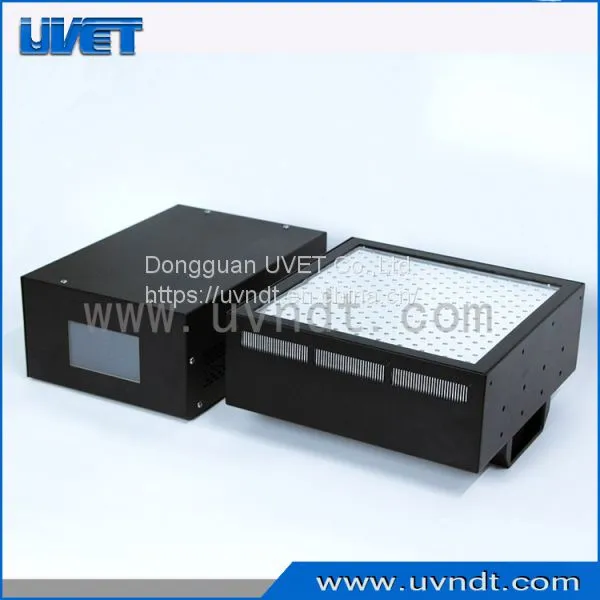

365nm Area LED UV Glue Curing Lamp photo-3

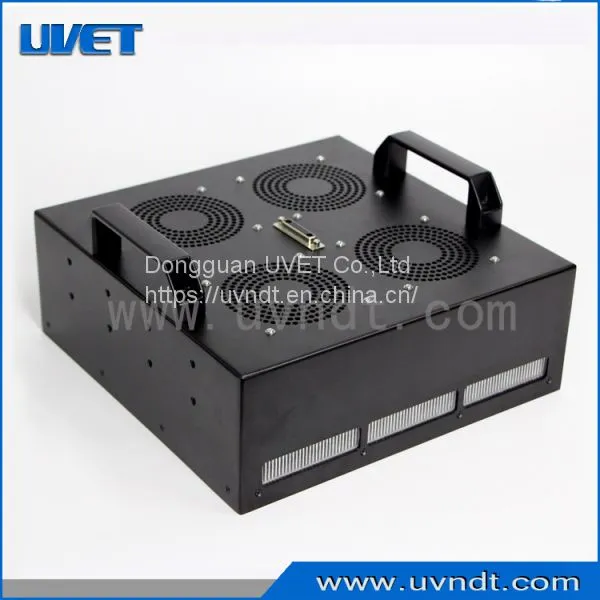

365nm Area LED UV Glue Curing Lamp photo-4
US$ 10 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
UVET
Place of Origin:
China
Model Number:
UVSN-250L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
5 days
Brand Name UVET
Place of Origin China
Model Number UVSN-250L
Rated Power 950W
Voltage Other, 100~240V

UV LED Head Specification:

Size of the window

260×260  mm

Power

Dimensions

300(L)×300(W)×110(H)   mm

Distance

10mm

Cooling

Fan cooling

Wavelength

365nm

Material/Weight

Black Sheet   Metal /About
  2.5Kg

UV Intensity (mW/cm^2 )

850 @EIT

Monitoring Methods

Recognition,   Temperature

LED Life

20000H



Controller Specification:

Dimensions   (mm)

330(L)*230(W)*130(H)

Power

50W

Cooling

Fan cooling

Power   Input

100-240V AC 50-60HZ

Material/Weight

Black Sheet Metal/
  About 6.5Kg

LED   Head Number

One, independently control

Set   Lock

Built-in passwords change
  function

Display   and Operation

Touch screen

RS232   Serial
  Communication

Parameters setting

Control   Method

Connected with MCU, PLC and
  other automatic equipment to
  control and feed back the work
  sate

Error   Warning

Overheat, fault warning

LED   Cumulative Time

Record accumulated using   time

Heat   dissipation

Fan cooling

Fan   cooling

Fan cooling

Product Tags: LED UV lamp , UV glue curing lamp , area UV curing , UV curing lamp , UV LED curing lamp , 365nm UV curing lamp
