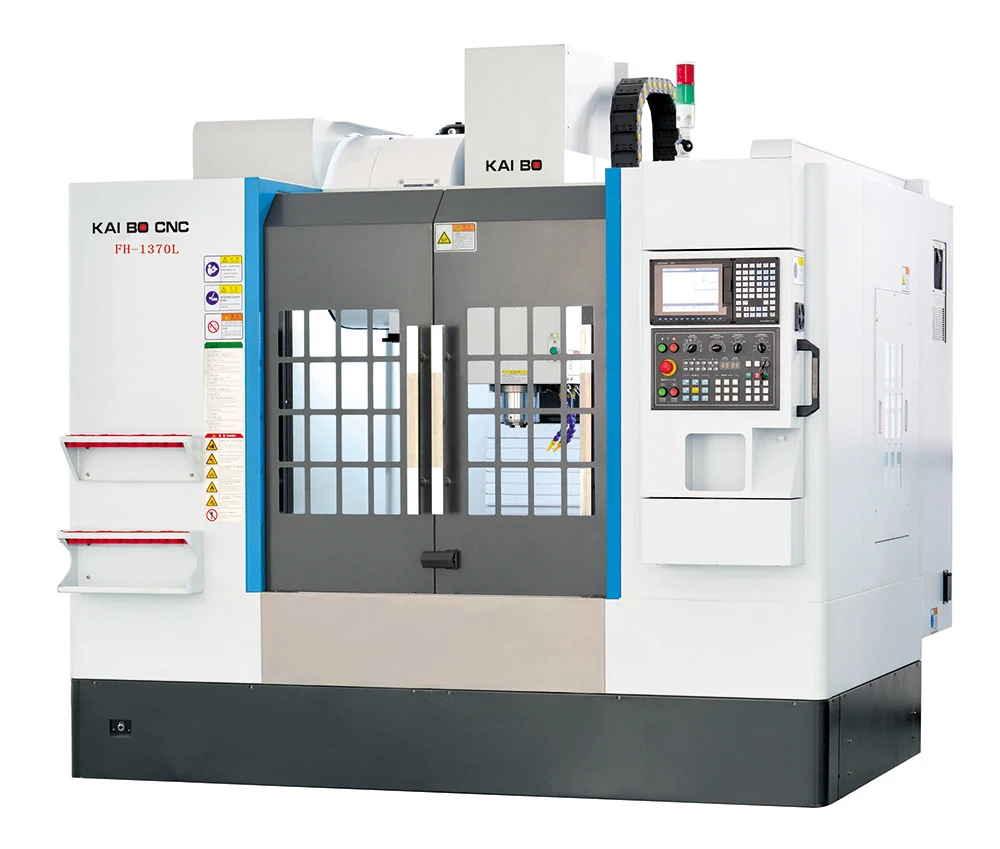

FH-1370LChina used cnc vertical automatic working machining center
Standard features:
1. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification liquid through or spray nozzle
2. Gantry structure: The double column is whole part, greatly increase machine rigidity.
3. Quality assurance: Each device before leaving the factory, we will test the cue with laser interferometer
4. SYNTEC control system: from Taiwan with high performance and competitive price
5. Servo motor and drives: from Japan with high precision and long life
7. Main axle:7.5kw high precision variable frequency main axle turns machining into a kind of artistic model.
Application:
Precision,complex parts processing;periodic repetitive production parts processing; multi station, muti process centralized parts prcessing
Option parts:
1.The working range can be customized as per your requests;
2.Control system: Weihong(Syntec or FAGOR) or as your request
3.Can be 3 axis and 4 axis or 5 axis universal.
4.Different linear guide, precision ball screw, servo motor, system components as your request
WELCOME TO KAIBOCNC:
| Parameter/Model | FH-1370L | |
| Accuracy | Positioning accuracy | 0.01/300mm |
| Repeat positioning accuracy | 0.01mm | |
| Worktable | Worktable size | 1400*700mm |
| T-slot size | 6T-18-125mm | |
| Max. load | 1000Kg | |
| Travel | X/Y/Z axis travel | 1300/700/650mm |
| Spindle nose to worktable | 100-750mm | |
| Spindle center to Column | 755mm | |
| Feed | Max. feeding speed G00 | 30m/min |
| Max. working speed G01 | 8m/min | |
| X/Y/Z axis motor power | 3.0/3.0/3.0kw | |
| Spindle | Spindle motor power | 11kw |
| Spindle Max. speed | 12000rpm | |
| Tool holder | BT40 | |
| Tool Magazine | ATC type | Arm type |
| ATC capacity | 24pcs | |
| Common | Power supply and total capacity | 3P/380V/50Hz/25KVA |
| Machine weight | 8600Kg | |
| Dimension | 3600*2600*2700mm | |
| Main parts | Controller | Syntec 21MA/Taiwan |
| AC servo motor(Driver) | Yaskawa/Japan | |
| Spindle inverter | Inovance/China | |
| Guide way | Hiwin,PMI/Taiwan,Rexroth/German | |
| Ball screw | Hiwin,PMI/Taiwan | |
| Electronic hand-wheel | EHDW-BA5S-1 Future/Taiwan | |
| Lubrication system | ISHAN/Taiwan | |
| Oil Coolant Chiller | Parsonthor /China | |

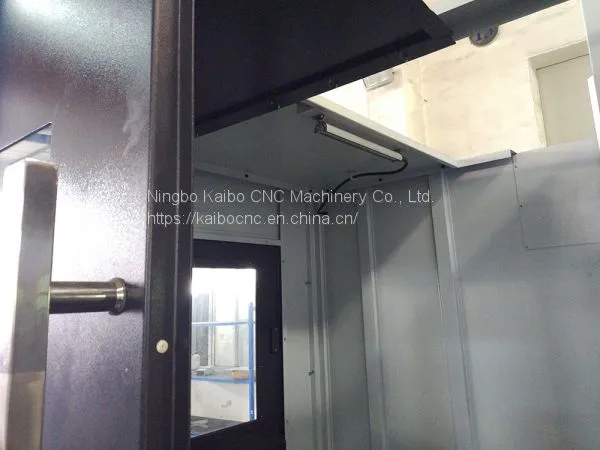

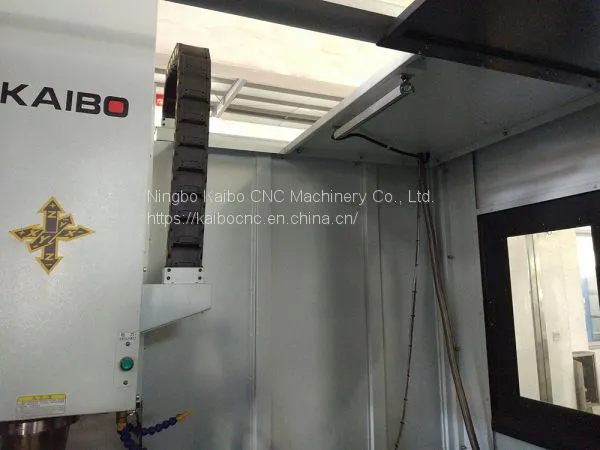

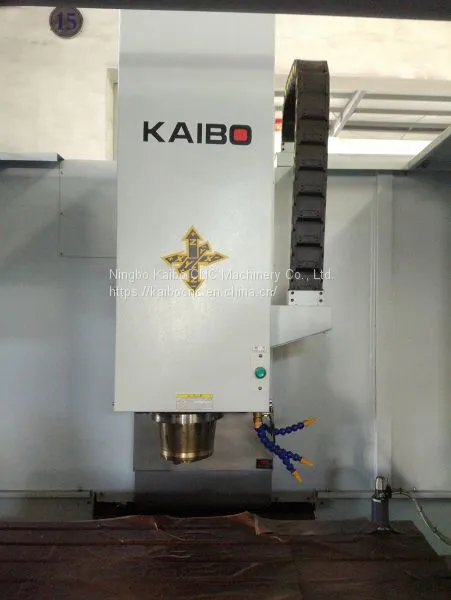

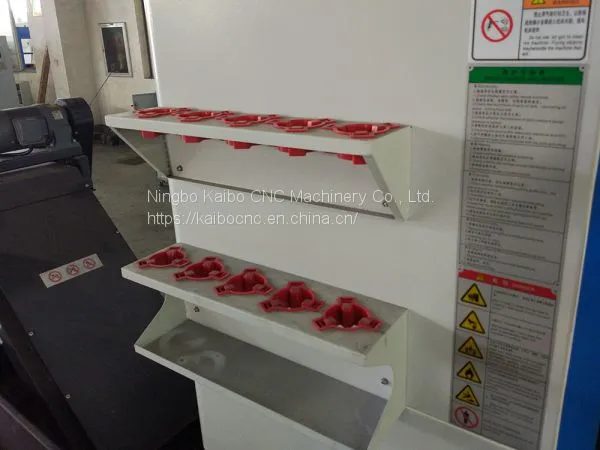

Pictures of Machine
Packed In Wooden Case, Standard packing for Mould Making Machine
Technical Services
Kaibo, being both a Molding Machine manufacturer and trading company in China, can also provide you with the best solutions for your production line and your business in or from China. We manufacture a wide range of CNC Machines, such as:
-CNC Engraving Milling Machine
-CNC Lathe
-CNC Vertical Machine Center
-Tapping Machine
-Gantry Milling Machine
Customer Service
1.Kaibo guarantees continuous and ongoing technical support for all of our products, and an technical enquiry of our machines can be replied within 24 hours.
2.Spare parts, in their majority, can be supplied within 48hours after confirmation.
3.The warranty period of Kaibo's machine tools is 12 months from the date of completion of installation and comissioning.
4.At Kaibo we provide our Customers With all the details, including machinery details, their operation, and technical support.
A.CNC Mahinces choice
1. What is workpiece size?
If Workpiece is 300x500, Just need to choose the worktable is greater than or equal to 300x500mm machining type.
2. what is Parts material?
Such as steel,aluminium alloys,metal, etc.
3. What is the processing process?
Our company's CNC machine tool products, different models have different characteristics, such as DC6060 suitable for shoe mould processing, DC1090 widely applicable.
4. How to choose the best fit for your machine?
If you have special request for the machine tool configuration,And the budget is limited,We can also according to your request to
change the configuration.
Thus please provide your machining drawing, we are very glad to design a specific process solution for you and recommend a proper cnc machine model.
5. Does your company accept customized offer, we have special need?
KAIBO is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
B.Training and maintenance
1.In order to improve production efficiency,before the contract signed,you can send someone to our factory for professional CNC CNC programming and operation training.
2.Warranty is 12 months which begins from the day when the machine arrived at the importer’ s port.
If the device can 't work normally,once we get your notice, we will send engineers to your factory for processing. If it is artificial damage,you need to charge a cost.
3. Each CNC machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought.
1. With over 21 years manufacturing experience, Over 50 Core Engineers are growing up with
factory over 20years.
2. Each Machine is strictly in accordance with ISO and CE.KAIBOCNC has been named China
famous brand, designated as the national standard setter by GB.
3. Quality Assurance, Timely delivery, Quick Service. Each year produce over 2000pcs,360
staffs,26 after-service teams.
