Help Center8ft LED Tube Light 40W UL Approved
Related Products
-
Sype B LED T8 Tube Light 1200mm16w Retrofit Tube Light ETL DLC AprrovedUS$ 4.50 - 5.00MOQ: 100 Pieces -
Bypass LED T8 Tube Light Retrofit Tube 1200mm18w ETL DLC AprrovedUS$ 4.50 - 5.00MOQ: 100 Pieces
-
High-quantity LED Tube Light T8 22W Tube Light Manufacturer NY City Led Light WholesaleUS$ 5.00 - 5.50MOQ: 100 Pieces
-
Ballast Compatible LED Tube Type A or Type B 18W UL DLC Approved T8 Tube LightUS$ 5.50 - 5.80MOQ: 100 Pieces
-
LED Waterproof Fish Tank Lamp Storage Lamp T8 Waterproof Tube 1.2 Meters 18 WattsUS$ 6.0 - 6.5MOQ: 50 Pieces
Features
1. Wide input voltage: 100-277V.
2. High efficacy, 105lm/W for frosted PC cover, 115lm/W for clear PC cover.
3. PF>0.9, CRI>80.
4. UL approved.
5. 3 years warranty.
Parameter
Model No. |
PT-T88FP40W |
|
Size |
Dia.26*2367mm |
|
Wattage |
40W |
|
LED Qty |
240pcs |
|
LED Type |
SMD2835 |
|
Luminous Flux |
Frosted |
4200lm±5% |
Clear |
4600lm±5% |
|
CRI |
>80 |
|
CCT |
2800-3200K 4000-4500K 5000-5500K 6000-6500K |
|
Lighting Angle |
120 Degree |
|
Input Voltage |
AC100-277V |
|
Frequency |
50/60Hz |
|
PF |
>0.9 |
|
Wire Connection |
Two Ends Powered |
|
Material |
Aluminum+PC |
|
Endcaps |
FA8/G13/R17D |
|
IP Rate |
IP40 |
|
Working Temperature |
-20~55℃ |
|
Storage Temperature |
-40~60℃ |
|
Lifespan |
50000h |
|
Warranty |
3 Years |
|
Certificates |
UL |
|

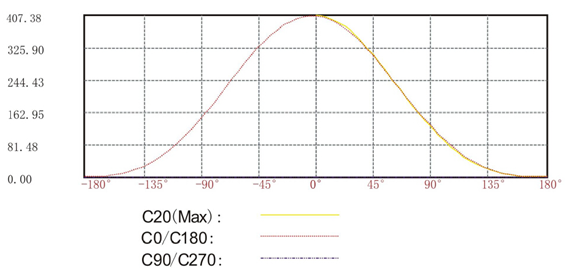

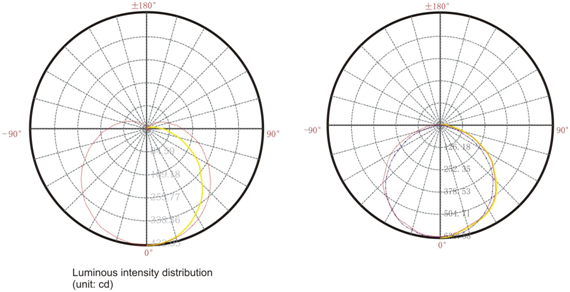

Luminous Intensity Distribution

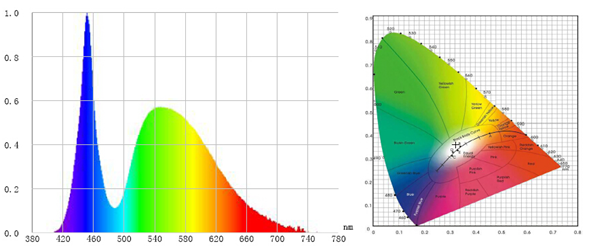

Spectrogram
Installation Guide
1. Turn off the electricity.

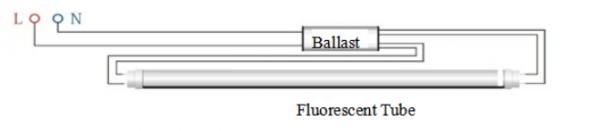

2. Remove the fluorescent tube.
3. For magnetic fixture, put the LED tube on directly.

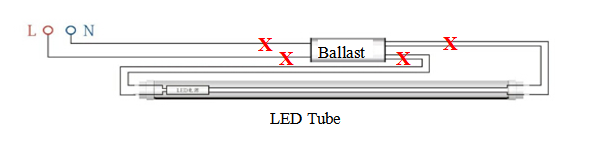

For Electronic fixture, remove or bypass the ballast and then put the LED tube on.
4. Rotate the LED tube in the right light angle.
Notice
1. Cut off the electricity before installation.
2. Installation can only be done by qualified electrician.
3. Input voltage is AC100-277V. Pls kindly confirm the voltage before installation.
4. If the tube can’t work normally, pls contact our customer service.
5. It will be out of warranty if damage is caused by personal mistake.
