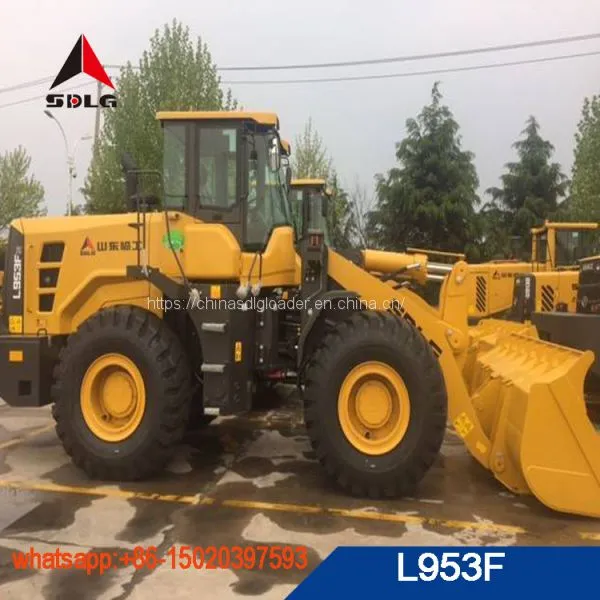

SDLG L953F Wheel Loader

Name: SDLG L953F Wheel Loader
Brand: SDLG
SKU: 159003156
Availability: InStock

US$ 40000 - 60000 MOQ: 1 Unit

Key Specifications

Brand Name:

SDLG

Place of Origin:

China

Model Number:

L953F

Shandong Senxin Trade Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Brand Name SDLG

Place of Origin China

Model Number L953F

Type Front Loader

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Warranty one year

Condition New

Dimension(Long * Breadth * High) 8050×3024×3423 mm

Moving Type Wheel Loader

Rated Load 5 T

Item	Specifications	Item	Specifications
Overall dimension		Emission standard	GB20891-2007(stage II)
LxWxH	8050×3024×3423 mm	Min.fuel-consume ratio	215g/kw.h
Wheelbase	3000 mm	Transmission system
Min.ground clearance	534 mm	Torque converter	Single-stage four-element single-turbine hydraulic torque converter
Max.dumping height	3040 mm	Torque converter
Dumping distance	1150 mm	Transmission type	Planetary power shift
Dumping angle	-45°	Gears	Forward 2 reverse 1
Wheel tread	2250 mm	Speed at forward gear Ⅰ	0～13 km/h
Steering angle	35°	Speed at forward gear Ⅱ	0～38 km/h
Horizontal crossing radius	6995 mm	Speed at reverse gearⅠ	0～17 km/h
Min.turning radius	6040 mm
Overall parameters		Hydraulic system of working device
Bucket capacity	3.2m³(Optional 2.7-4.5m³)	Type	Pilot control
Rated load	5000kg	Total time	≤10.0 s
Operating weight	17100kg	Brake system
Max.tractive force	≥165 kN	Service brake type	air over hydraulic disc type
Max.breakout force	≥175kN	Parking brake type	Electro-hydraulic control internal expanding shoe brake
Tipping load	≥110 kN	Steering system
Engine		Type	load sensing full hydraulic articulated steering
Model	WD10G220E23	System pressure	16 MPa
Type	Inline, water-cooled, dry cylinder liner, direct injection	Fill Capacity
Rated power	162kW	Fuel	260 L
Rated speed	2000 r/min	Hydraulic oil	240 L
Engine displacement	9726ml	Engine	20 L
Cylinder bore/stroke	126/130mm	Transmission	45 L
Max.torque	980 N.m	Drive axle	26×2 L
		Braking system	4L
