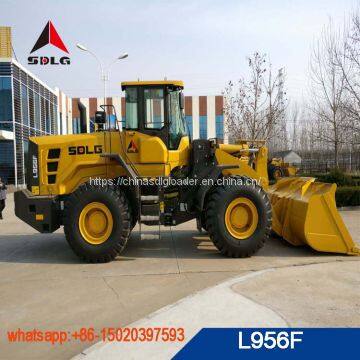

SDLG L956F Wheel Loader,5 Ton Loader L956F

Name: SDLG L956F Wheel Loader,5 Ton Loader L956F
Brand: SDLG
SKU: 159212259
Availability: InStock

US$ 54000 - 65000 MOQ: 1 Unit

Key Specifications

Brand Name:

SDLG

Place of Origin:

China

Model Number:

L956F

Shandong Senxin Trade Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

QingDao

Delivery Detail:

Delivery time depends on order quantity.

Brand Name SDLG

Place of Origin China

Model Number L956F

Type Front Loader

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Warranty One year

Condition New

Dimension(Long * Breadth * High) 8180*3024*3423mm

Moving Type Wheel Loader

Rated Load 5ton

Item	Specification	Item	Specification
Overall dimension		Min.fuel-consume ratio	≤ 215g/kw.h
LxWxH	8180x3024x3423 mm	Emission standard	GB2089-2007 China Phase II
Wheelbase	3200mm	Transmission system
Min.ground clearance	534mm	Torque converter	Single-stage 4-element double-turbine hydraulic torque converter
Max.dumping height	3040mm	Transmission type	Planetary power shift
Dumping distance	1095mm	Gears	Forward 2 reverse 1
Dumping angle	-45°	Speed at forward gear 1	0~13km/h
Wheel tread	2250mm	Speed at forward gear 2	0~38km/h
Steering angle	35°	Speed at reverse gear 3	0~17km/h
Horizontal crossing radius	7230mm	Hydraulic system of working device
Min.turning radius	6325mm	Type	Hydraulic pilot control
Overall parameter		Total time	≤ 10.0s
Bucket capacity	3.0m³	Brake system
Rated load	5000kg	Service brake type	Gas-cap oil-clamp disk
Operating wight	17200kg	Parking brake type	Electric pneumatic internal expansion
Max.tractive force	165kN	Steering system
Max.breakout force	≥ 175kN	Type	Load-sensing fully hydraulic articulated steering
Tipping load	≥ 110kN	System Pressure	16MPa
Engine		Fill capacity
Model	WD10G220E23	Fuel	260L
Type	Inline,water-cooled,direct injection,dry cylinder liner	Hydraulic oil	240L
Rated power/speed	162kw/2000r/min	Engine	20L
Engine displacement	9726mL	Transmission	45L
Cylinder bore/stroke	126/130mm	Drive Axle	2x26L
Max.torque	986 N.m	Brake system	4L
