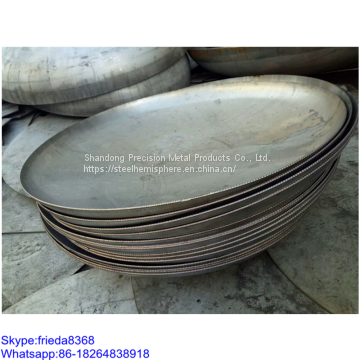

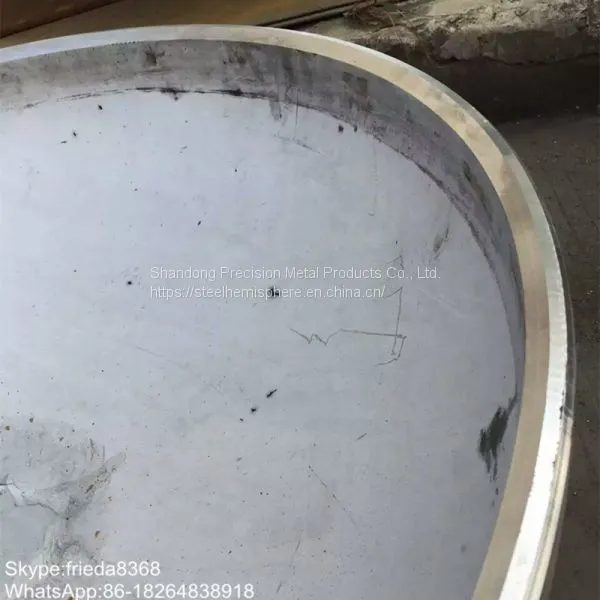

Steel Ellipsoidal Head/Dish End for Pipe Fittings and Pressure Vessels
Item : |
Steel Ellipsoidal Head/Dish End for Pipe Fittings and Pressure Vessels |
Diameter: |
12.7mm--10000mm |
Thickness: |
2mm--100mm |
Reduction Ratio: |
about 10% |
Material: |
Carbon stee(A3,20#,Q235,Q345B,16Mn), Alloy steel(15Mo3 15CrMoV 35CrMoV 45CrMo), |
Stainless steel (304,321,304L,316,316L), etc | |
According to customers requirement (If you can use Chinese material is the best.) | |
Technology: |
Hot pressing, cold pressing |
Surface Treatment: |
Sand Blasting, Transparent oil, Rust-proof oil, Galvanizing |
Test: |
UT,RT,MT,PT,ET |
Applicable Standard |
ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB |
Certificate: |
ISO9001 ,ISO14001,OHSAS18001 |
Applications: |
Such as: oil, chemical industry, water conservancy, electric power, |
boiler, machinery, metallurgy, sanitary construction etc. | |
Product Character |
Rustproof, good corrosion resistance, anti-wearing, good-appearance, excellent mechanical properties. |
Connection |
Butt-welding |
Packaging: |
Standard seaworthy export packing: Plywood Box, Plywood or Steel Pallet or as per customers requirement |
Delivery time: |
According to customers requirement |
OEM,ODM |
Available |
Others: |
1. Special design available according to your drawing. |
2. Anti-corrosion and high-temperature resistant with black painting | |
3. All the production process are made under the ISO9001:2000 strictly. | |
4. A conformity rate of ex-factory inspection of products. |
Production Process of Heads:
Customized Carbon Steel Ellipsoidal Head/Dish End for Pipe Fittings and Pressure Vessels
Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation
Shandong Precision Metal Products Co.,Ltd is a specialized manufacturer of tank head. With over 15 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.
The main products of the company are: shell plate, elliptical head,torispherical heads,spherical dished heads, flat heads, spherical head, expansion joint, corrugated furnace and non-standard parts, and all kinds of stock heads are available for customers. The products are sold to more than 20 provinces and cities and regions in China and exported to foreign countries.
♦ Small order advantage, flexibly in dealing with orders;
♦ Quality: Strict control of raw materials and the production process;
♦ Advanced technology,best quality,customer satisfaction,reputation first,good after-service;
♦No cracks , delamination, inclusion ,and other defects;
1.No cracks,delamination, inclusion ,and other defects;
2.The warranty time is 6 months,except the wearing parts;
3.We provide the best service based on professional and sincerely attitude.
Torispherical Head (also called torispherical dish end or torispherical ends) is widely applied for pressure tanks to storage liquids and gasses. The torispherical head consists of a spherical surface, a cylindrical edge of a certain height, and a transition section connecting the above two parts with a radius of curvature smaller than the radius of the sphere. Our asme torispherical head can be made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The stress distribution of torispherical dish head is not as uniform as elliptical head, but the manufacturing processing of the torispherical head is easier. However, torispherical dish end is the better option when the elliptical head of the mold processing is difficult. We can fabricate torispherical ends in most popular sizes and thicknesses.
Customized Carbon Steel Ellipsoidal Head/Dish End for Pipe Fittings and Pressure Vessels
6 pieces packed on a pallet for Large Spherical Outdoor Decorated steel firepit sphere
Wooden cases ,wooden pallet plastic bag or as per customers requirement
Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:sales03(AT)
Frieda
A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.
A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.
A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.
A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
