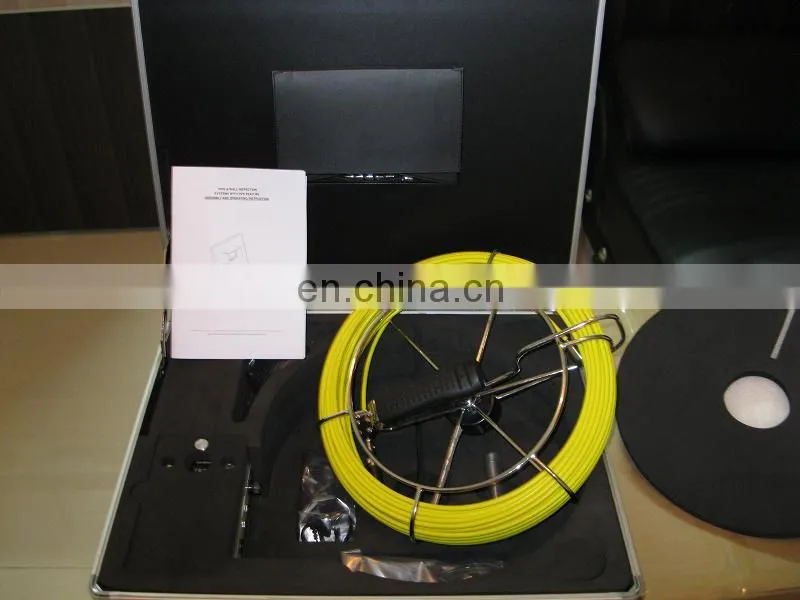

Underwater Inspection Pipe Camera TEC-Z710 Pipe Inspection Detector
Specification |
|

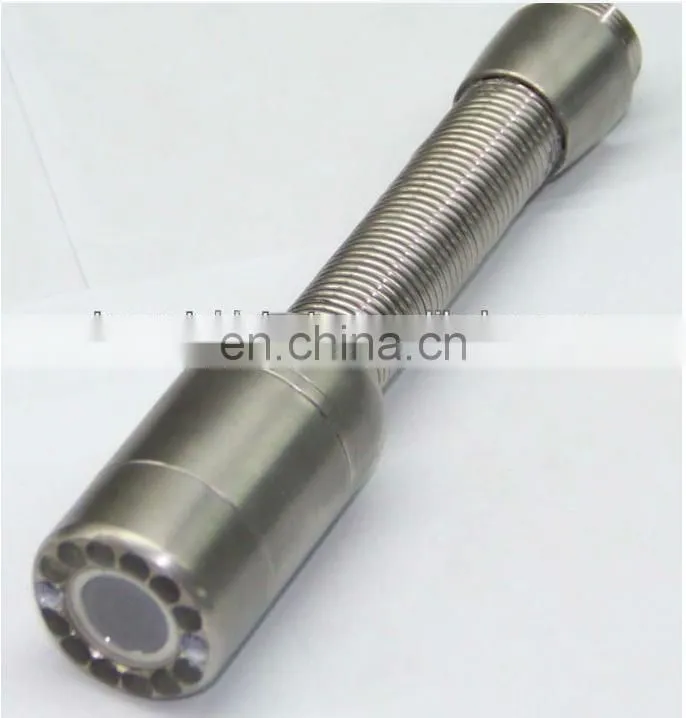

camera
|
1. camera size:23mmx120mm front size:45mm |
2.Camera case material:stainless steel house stainless steel 304 |
3. Camera glass material:sapphir glass |
4. sensor size:1/4 inch |
5.Total Pixels:PAL:720X576 NTSC: 720X480 |
6. view angle:120°. |
7. camera light:12PCS white LEDS. |
8. Special gold point touch connector |
9. waterproof:IP68 |
10.camerawork current:100MA camara power supply:DC 12V |
11. LEDS ADJUASTABLE. |
12.Work temperature:-10°C-50°C |
|
monitor
|

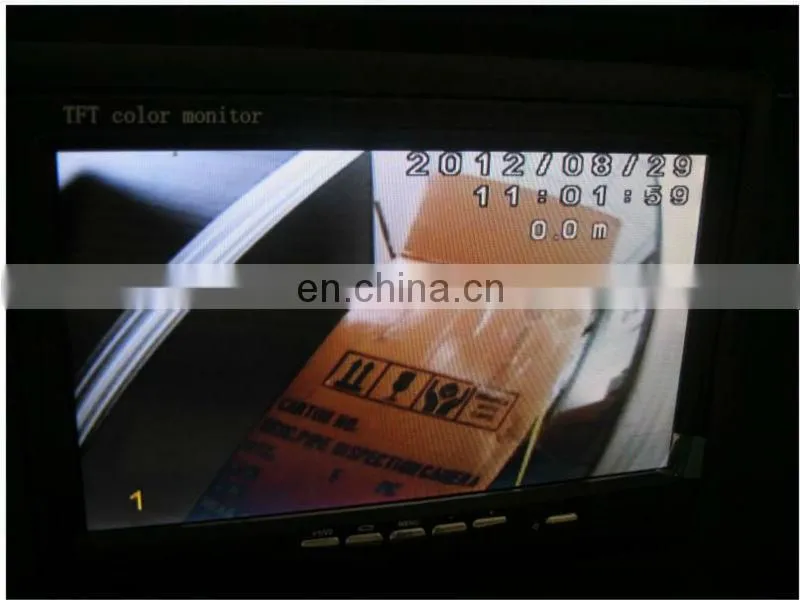

1. monitor size: 7inch TFT color monitor |
2. monitor Total Pixels:1440X234 |
3. monitor power supply:DC 12V |
4. osd language: english |
5. up,down left,right adjustable. |
6. 16:9 4:3 model |
7. sunshade includ |
8. waterproof connector |
9. Work temperature:-10°C-50°C |
|

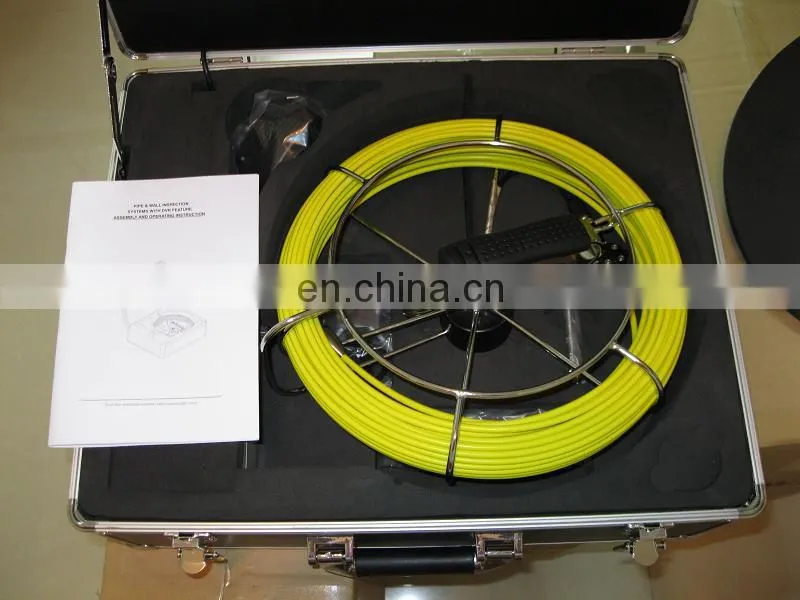

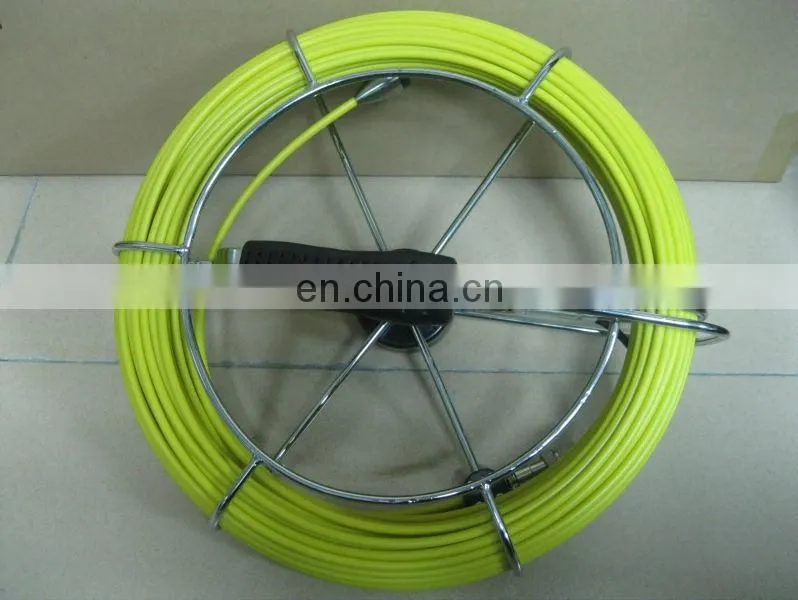

Cable wheel
|
Cable size:320MM(diameter)X110(h) |
Wire material: fiberglass rod |
Fiberglass length:20M( standard) |
Fiberglass diameter:4.8MM |
Fiberglass color:yellow |
battery |
Battey pype: 12V 4000MAH rechargable li –ion battery(18650) |
Used time : 7 hours. |
charger |
Input: AC90-260V output: DC 12V 1000MA |
Output cable length:1.5M |
DC plug diameter :2.1MM |

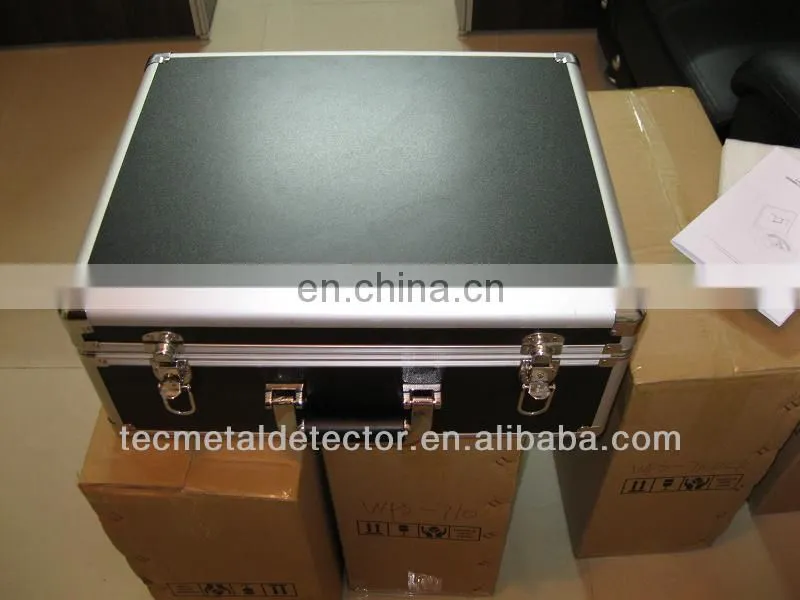

box |
box material:fire protection |
Box size:48cm x 39cm x 19.5cm |
|
SKIDS size |
1. SKIDS1: Φ40MM |
2. SKIDS2: Φ80MM |
|
Weight and cartoon size |
net weight: 7.5KG |
gross weight: 9.5KG |
Shipping:
1.By Worldwide Express:DHL,Fedex,EMS,UPS,TNT,etc
2.By air or by sea,if the goods weight over 45kg,then by these two ways are economical.
Why choose us?
The Service We Provide - We Take Care Of Your Order
Quality Control
1>All products must go through four checks before manufacture processing.
2> Full check after every individual process finished.
3>Full check after production half-done.
4>Spots check after production packaged before shipping.
Punctual delivery time:
1>We put your order into our tight production schedule, ensure your punctual delivery time.
2>Production / inspection report before your order packed.
3>Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
1>We respect your feed back after receive the goods.
2>We provide 12-24 months warranty after goods arrive.
3>We promise all spare parts available in lifetime use.
4>We lorge your complain within 48hours.
OEM Service
1> we accept all OEM service,if quantity is big,OEM is free of charge,if not,we will charge a little OEM Cost.
CE Certification
