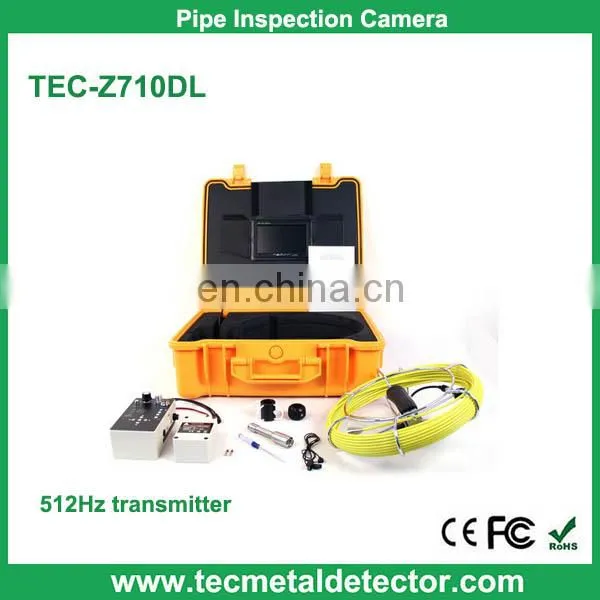

50m Cable Pipeline Inspection Camera, Drain Pipe Sewer Camera with 512 Hz Transmitter TEC-Z710DL
Specification |
camera |

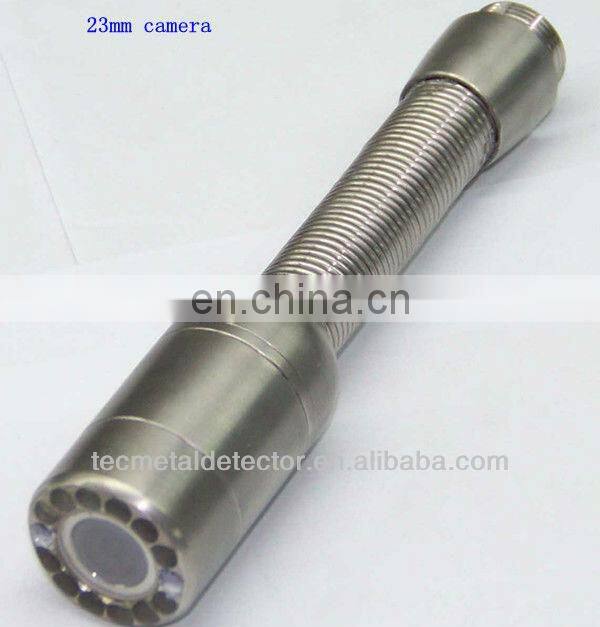

1. camera size:23mmx120mm front size:45mm |
2.Camera case material:stainless steel house stainless steel 304 |
3. Camera glass material:sapphir glass |
4. sensor size:1/4 inch |
5.Total Pixels:PAL:720X576 NTSC: 720X480 |
6. view angle:120°. |
7. camera light:12PCS white LEDS. |
8. Special gold point touch connector |
9. waterproof:IP68 |
10.camerawork current:100MA camara power supply:DC 12V |
11. LEDS ADJUASTABLE. |
12.Work temperature:-10°C-50°C |
monitor |
1. monitor size: 7inch TFT color monitor |
2. monitor Total Pixels:1440X234 |
3. monitor power supply:DC 12V |
4. osd language: english |
5. up,down left,right adjustable. |
6. 16:9 4:3 model |
7. sunshade includ |
8. waterproof connector |
9. Work temperature:-10°C-50°C |

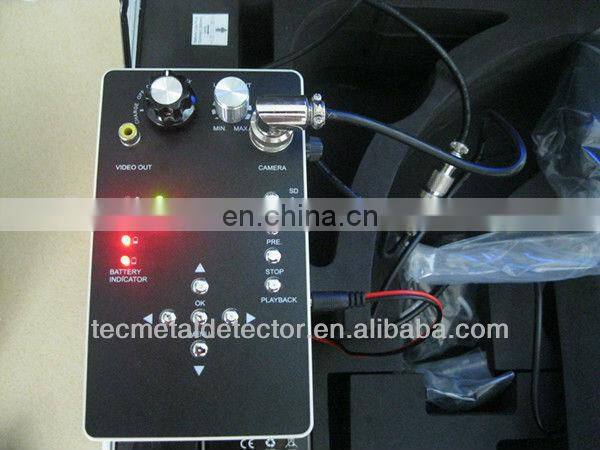

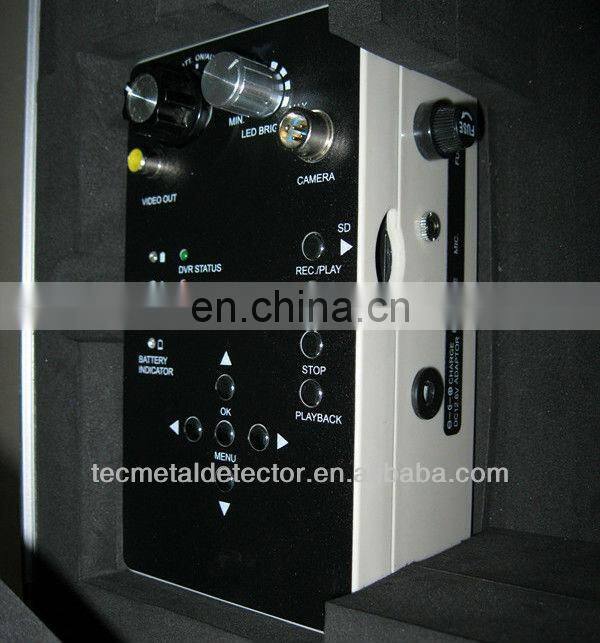

DVR |
1. DVR power supply: 12V |
2. DVR work current: 200MA |
3. storage medium:SD card (max 32G) |
4. dagital clock and dagital calendar |
5. DVR Total Pixels: 720X576 (D1) |
6. picture snap and movie record |
7. movie format: AVI |
8. audio record (yes) |
9. double earphone output |
Audio input unit |
1. micphone |
2. clip type |
512HZ FM Transmitter |
frequency: 512HZ |
distance: 5m |
modulation: FM |

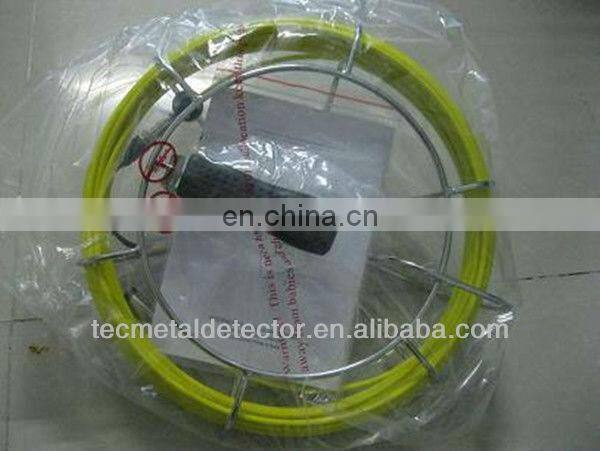

Cable wheel |
Cable size:320MM(diameter)X110(h) |
Wire material: fiberglass rod |
Fiberglass length:20M( standard) |
Fiberglass diameter:4.8MM |
Fiberglass color:yellow |
battery |
Battey pype: 12V 4000MAH rechargable li –ion battery(18650) |
Tatal work time : more 7 hours. |
charger |
input: AC90-260V output: DC 12V 1000MA |
Output cable length:1.5M |
DC plug diameter :2.1MM |

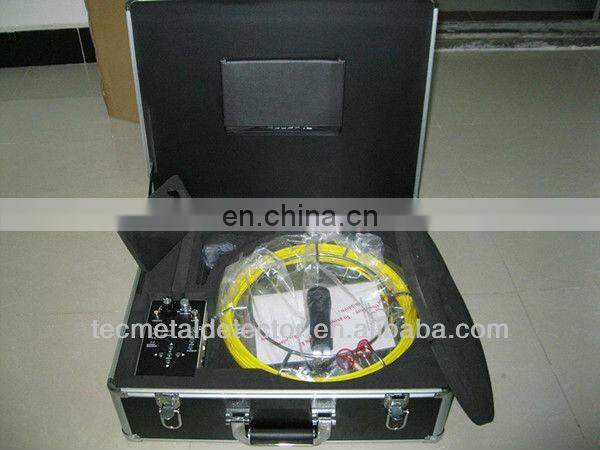

box |
box material:fire protection |
Box size:48cm x 39cm x 19.5cm |
|
SKIDS size |
1. SKIDS1:material POM Φ40MM |
2. SKIDS2:material POM Φ80MM |
|
Weight |
net weight: 7.5KG Single |
gross weight: 12KG Single |
