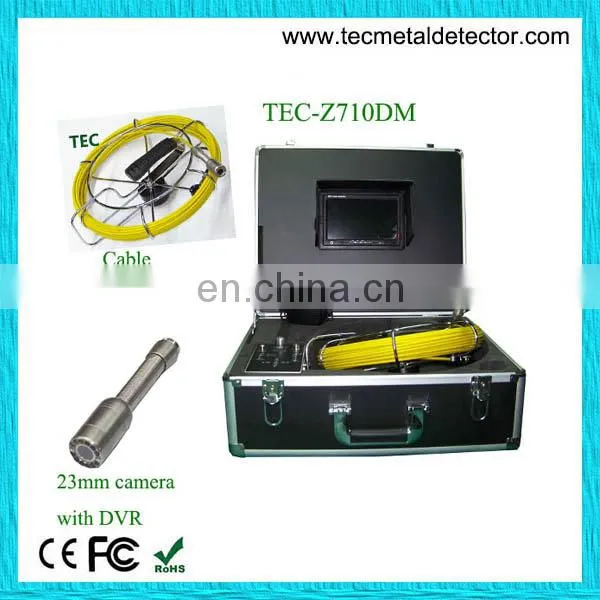

High quality industrial video pipe inspection camera, cctv sewer inspection camera system TEC-Z710DM
The Brief Introduction of Pipe Inspection Camera:
- Color CMOS Stainless Steel Camera with 12pcs LED Lights
- 120 Degree View Angle
- 1 Year Warranty
- Can work with 20M to 100M(optional) fiberglass cable
- Waterproof IP68
- Portable aluminum case
- Skid included, AC & Battery operated
For sewer drain pipe & wall inspection!
Latest version from factory!

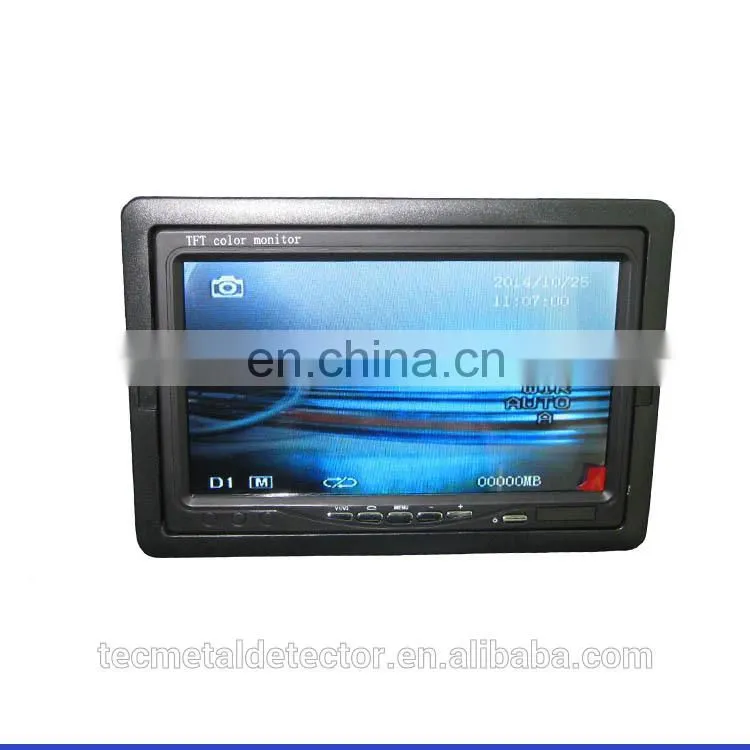

Monitor specification:
1.7" Color monitor
2.monitor Total Pixels: 800(H) X 480(V)
3.monitor power supply: DC 12V
4. OSD language: English (10 languages available)
5.up, down left, right adjustable
6.16:9 model
7. Built in sunshade
8.Operating Temperature: -20°C-60°C
9.Portable aluminum case
11.Battery: 12V 4000MAH, rechargeable li –ion or Lead-acid
12.Used time : 7 hours
13.Charger: Input: AC90-240V , output: DC 12V 1000MA

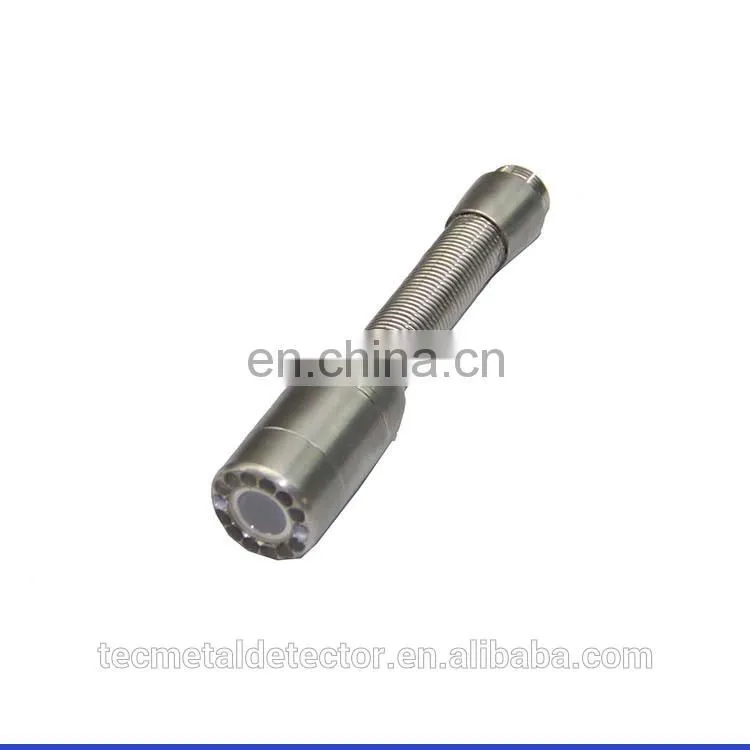

Camera Specification:
1. camera size: 23mm x 120mm, front size:45mm
2.Camera case material: stainless steel 304
3. Camera glass material: sapphir glass
4. sensor size: 1/3 inch CMOS
5.Total Pixels: 1000 TVL HD
6. view angle: 75 degree
7. camera led light: 12PCS white LEDS
8. Leds adjustable
9. Special gold point touch connector
10. Cable length: 20/30/40/50 meters (optional)
11. camerawork current: 100MA
12. camera power supply:DC 12V
13. waterproof: IP68
14. Work temperature: -10°C-50°C

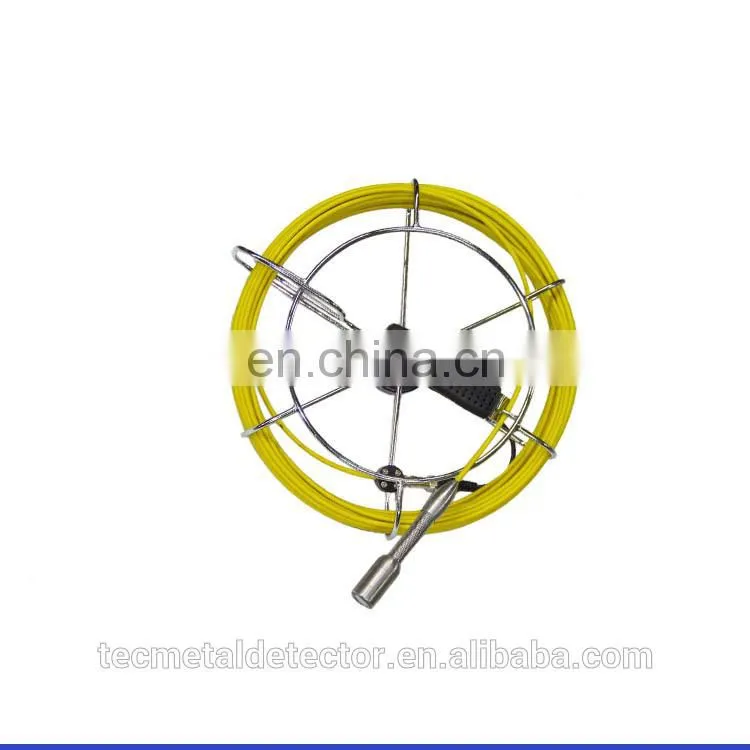

Cable Wheel:
1. Cable size: 320MM(diameter) x 110(h)
2. Wire material: fiberglass rod
3. Fiberglass length: 20M to100M ( optional)
4. Fiberglass diameter: 4.8MM
5. Fiberglass color: yellow

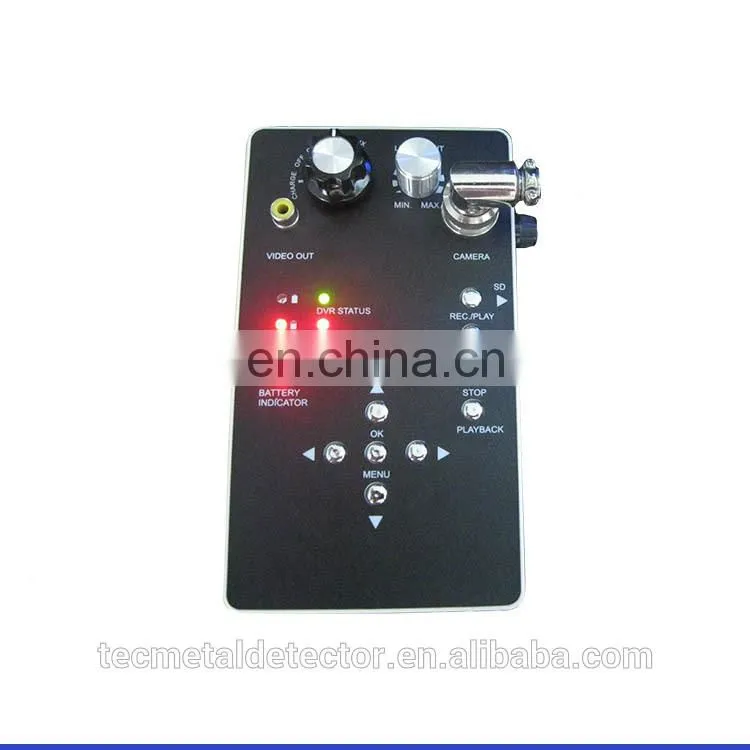

CONTROL BOX&DVR
1.DVR Power Supply: 12V
2.DVR Work Current: 200MA
3.Storage Medium: SD card (max32G)
4.Digital Clock and Digital Calendar
5.Battery Level Display
6.Total Pixels: 720*567(D1)
7.Picture Sanp and Movie Record
8.Movie Format: AVI
9.Microphone Audio Record
10.Stereo Earphone Output
Battery
1.Battery :12V 4000MAH rechargeable li-ion battery(18650)
2.Used Time: >260minutes
Charger
1.Input: AC100-240V~50/60Hz
2.Out Put: DC 12V/1000MA
3.DC Plug Diameter: 2.1m
SKIDS Size
1.SKIDS1: Φ40mm
2.SKIDS2: Φ80mm

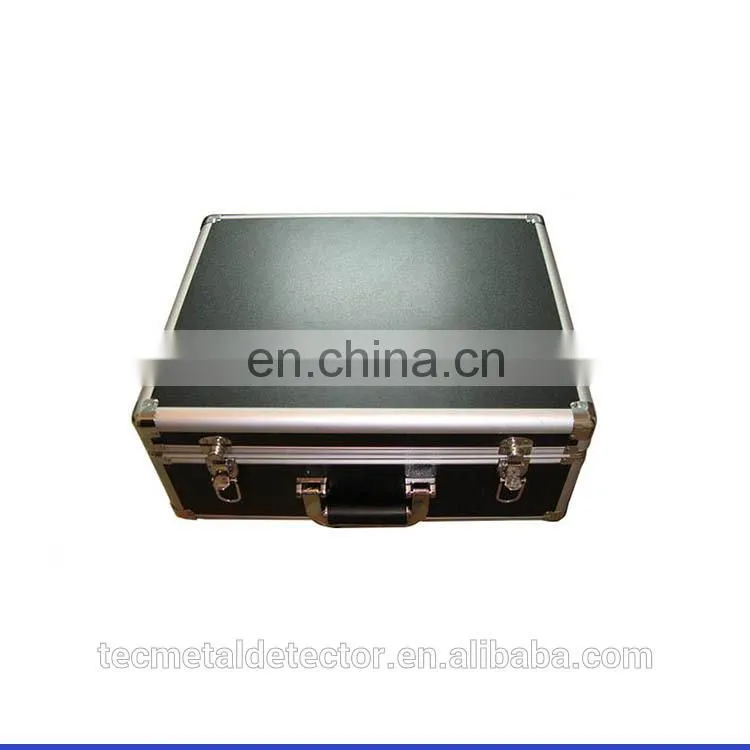

Aluminum Box
1.Case Size: 480(L)*415(W)*200mm(H)
2.Case Material: Fire board + aluminum alloy
3.Empty Case Weight: 3.4KG
4.Case Color: Black
We also supply Engineering box!!!
Package List:
1 x 7" inch color TFT LCD monitor
1 x pipe camera with 20m/66ft cable
1 x dc 12v battery charger
1 x Portable aluminum case
1 x 12v sealed lead-acid rechargeable battery
1 x connector (for battery charging only)
1 x remote control
1 x instruction manual
- 1.By Express:DHL,Fedex,UPS,EMS,TNT,Aramex,etc
- 2.By Air or Sea(in large quantities)
After sales service:
1. We respect your feed back after receive the goods.
2. We provide 12-24 months warranty after goods arrive.
3. We promise all spare parts available in lifetime use.
4. We lorge your complain within 48hours.
OEM Service
We accept all OEM service,if quantity is big,OEM is free of charge,if not,we will charge a little OEM Cost.
Feedback
1.We will make all efforts to accommodate your need.
2.If you are satisfied with our products, please confirm and leave your positive feedback. we will do the same for you. Thanks!
3.If you are not satisfied with the item when you received it, please contact us and we will resolve it for you as soon as possible
4.Welcome your suggestions. Your support and concern will give us more strong power to do better
