Color Steel Double Layer Roofing Tile Forming Equipment

Botou Xianfa Roll Forming Machine Factory

Our factory was established in 1996, we are the professional manufactory of roll forming machine. The main products are trapezoidal sheet roll forming machine, corrugated sheet roll forming machine, glazed tile roll forming machine, double layer roll forming machine ......

We have passed ISO9001 quality certification and European CE security certificate.

Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions’ customers.

We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request.We believe that our cooperation will create bright future.

Quick Detail

1.Suitable to process: Color steel plate

2.Width of the plate: 1250mm

3.Rollers: Upper layer:12rows Down layer:14rows

4.Dimensions: 8.2*1.55*1.91m

5.Power: 4+4.5KW

6.Thickness of the plate:0.3-0.7mm

7.Diameter of the roller:Φ70mm

8.Weight: 5.6T

9.Voltage: 380V 50Hz 3phases

10.Hydraulic: 40#

11.Processing precision: Within 1.00mm

12.Control system: PLC control

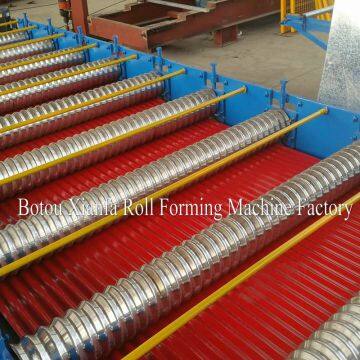

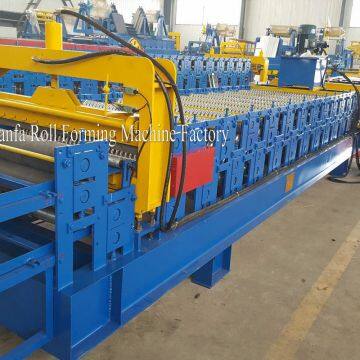

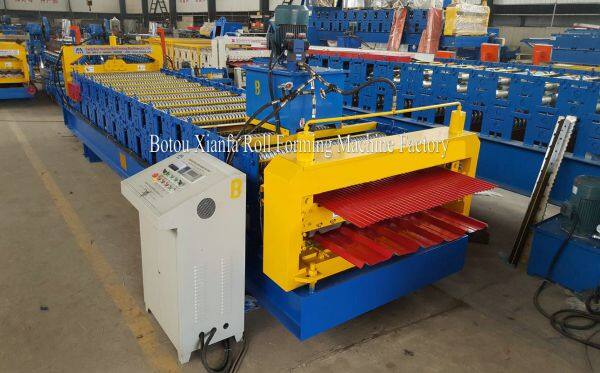

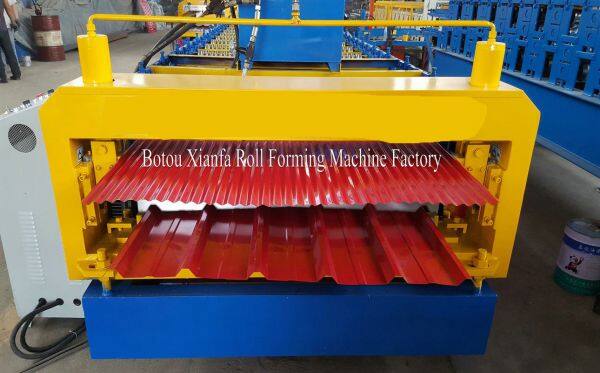

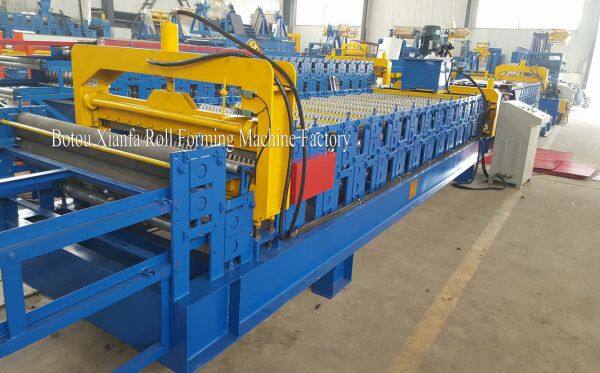

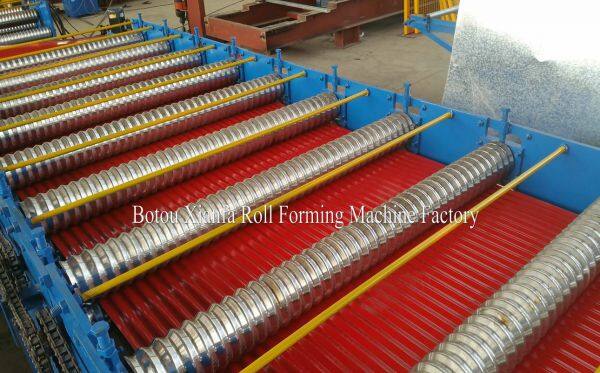

Machine Components

Packaging & Shipping

1.We have professional technicians for loading

  Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 40 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

Certification

Our service

Why Choose Botou Xianfa Roll Forming Machine Factory

1) Q: Do you have after sales support?

   A: Yes, we are happy to give advice and we also have skilled technicians available across the world

We need your machines running in order to keep your business running.

 2)Q: How do your machines compare with other big companies in this market?

   A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?

   A: Yes, we will. The core of our company culture is honesty and credit

Xianfa is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4)Q:What can you do if the machine broken?

A:Our machine's warranty period is 12months,if the broken parts can't repair

we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period

we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q:Can you be responsible for transport?

A:Yes,please tell me the destination port or address we have rich experience in transport.

6) Q:Can you supply the raw materials?

A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
