18.5KW THREE PHASE SUBMERSIBLE MOTOR PUM AC MOTOR SPEED CONTROLLER

Fit for the common sites and concise machines that has no special requirements including air compressor, pump, fan, medical apparatus and instruments, small machines, etc. YX3 Series Squirrel Cage Asynchronous Motor *Totally enclosed fan cooling * Squirrel cage * Conforms to the IEC standard * Efficiency * Energy saving * High starting torque * Low noise * Slight vibration * Light weight * Reliable and convenient operation * Easy maintenance Operating Conditions: Ambient temperature: -15°C≤θ≤...

·  Model Number:YX3-160L-2

·  Type:Asynchronous Motor

·  Frequency:50HZ/60HZ

·  Output Power:18.5KW

·  Protect Feature:Totally Enclosed

·  Phase:Three-phase

·  AC Voltage:380

·  Efficiency:IE 3

·  Color:Blue

·  Speed:2945RPM

·  Protection class:IP54/IP55

·  Housing:Cast Iron

·  Structure:B3/B5/B35

·  Voltage:220/380V /660V 230/400V/690V 440V

·  Winding:100% Cooper Wire

·  Cooling method:IC411

·  Function:Drving

Fit for the common sites and concise machines that has no special requirements including air compressor, pump, fan, medical apparatus and instruments, small machines, etc.

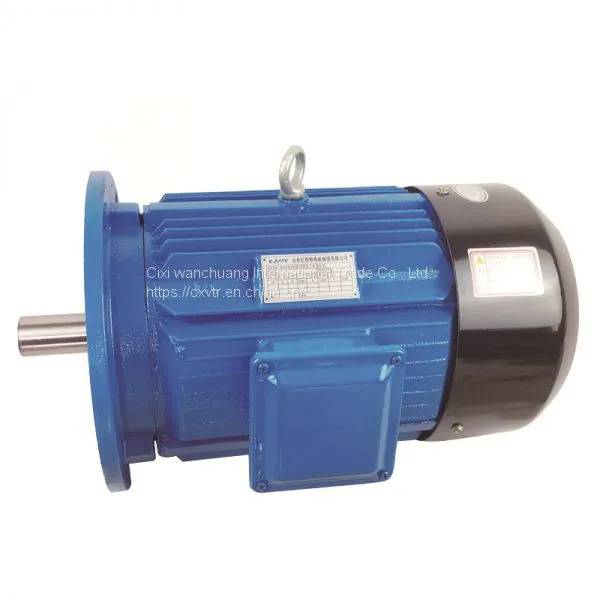

YX3 Series Squirrel Cage Asynchronous Motor
*Totally enclosed fan cooling
* Squirrel cage
* Conforms to the IEC standard
* Efficiency
* Energy saving
* High starting torque
* Low noise
* Slight vibration
* Light weight
* Reliable and convenient operation
* Easy maintenance

Operating Conditions:
Ambient temperature: -15°C≤θ≤40°C
Altitude: not exceed 1000m
Rated voltage: 380V or any voltage between 220V-760V.
Rated frequency: 50HZ, 60HZ
Protection Class: IP44, IP54 ,IP55
Insulation Class: B, F, H
Cooling method: IC411
Duty: S1 (continuous)
Connection: Star connection for up to 3KW, delta connection for 4KW and above.
Mounting Type: IM B3 (Foot Mounted) / IM B5 (Flange Mounted) / IM B35 (Foot & Flange Mounted)
Remarks: Motors can be equipped with PTC, for frame size 160 and above also can be equipped with re-greasing system. Terminal box on top , right and left are available. Key way can be closed type or opened type. Right side or left are available.

Range Of Performance:
80~355MM Frame Size
0.75~315KW     2 poles
0.55~315KW     4 poles
0.37~250KW     6 poles
2.20~200KW     8 poles

We insist that quality and honesty come first.
We will be very happy to answer your questions in 24 hours.
If you have any inquiry or requirements, Please feel free to contact us, We are looking forward to the opportunity of serving you.
How to order：
Please provide the product you need parameters:
1. You need the product name
2. You need the amount of products
3. You need the material of products
4. You need the product specifications
Because it is convenient we can more quickly to give you a quotation. Thanks!
Variety of models can customize according to your specification requirement.
Welcome to visit our factory at any time!
