Small Size Light Curtain Sensor

Name: Small Size Light Curtain Sensor
Brand: CALT
SKU: 158996172

US$ 1 - 399 MOQ: 1 Set

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

CALT

Model Number:

ELG series

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name CALT

Model Number ELG series

Usage Other, safety light curtain

Theory Other, safety light curtain

Output Digital Sensor

Small size light curtain sensor

Products feature

1.Whole process shelf-checking, adopt international advanced technology ,Good seismicity, stable property;

2.High resolution ratio can protect fingers, palms and body;

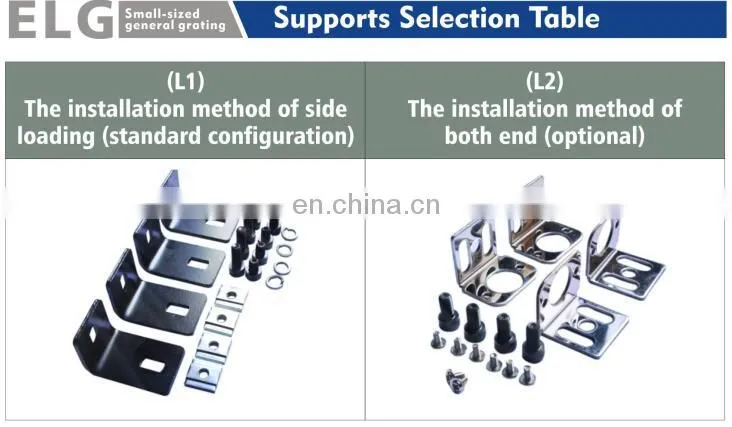

3. Various simple and convenient ways to install,The optic axis easy to alignment;

4. Strong anti-light and electromagnetic interference;

5. Low power dissipation design,Short response time and high reliability;

6. Small volume ,the dimension just 27*35MM

Protective height	60-2000mm(conventional)	Work environment temperature	-10℃-55℃
Beam pitch	5mm/10mm/20mm/40mm	cross section dimension	35*27mm
Optical axis number	4,6,8,10……	Work environment humanity	when temperature at 200C,humanity less than 85%
Mains input	DC24V	current output	≤300mA
Power dissipation:	<5W	Anti light disturb	10000Lux(incident angle I>5°)
Response time	less than 10ms	Dielectric strength	ACl 500V.60S.no breakdown or flicker
Isolation resistance	≥100MΩ	Protective distance	0-2000mm

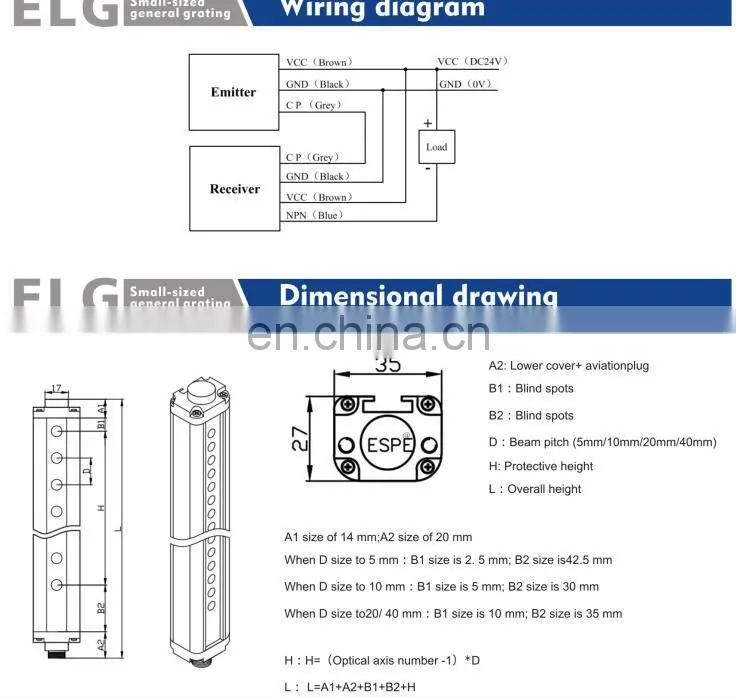

output mode	NPN / PNP / Relay normally open / Relay normally closed (optional)
