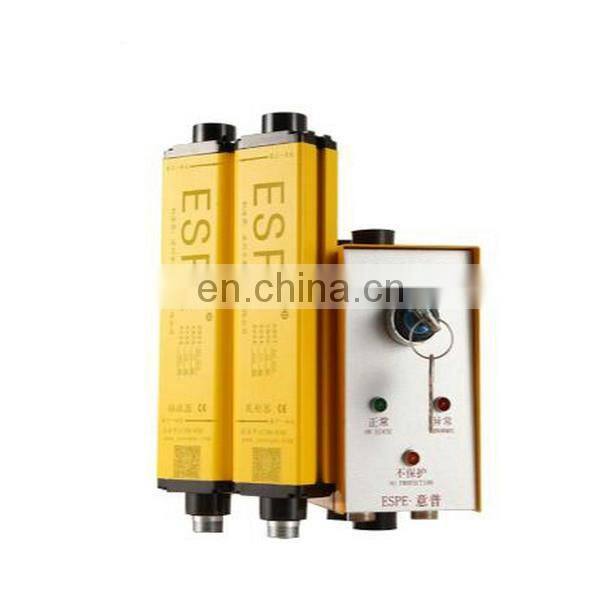

ESA series safety light curtain with External controller
Products’ feature
1. Referring Europe standards to design major component and using the world well-known imported original packing products, the safety performance and the technology has reached to international advance level.
2. Perfectly self-testing function uses double loop to output signal, response time less than 15ms,the relay life span longer than 1million times.
3. Strong anti light and electromagnetism interference capability. SMD paster design, various anti seismic measures, good seismicity, high stability.

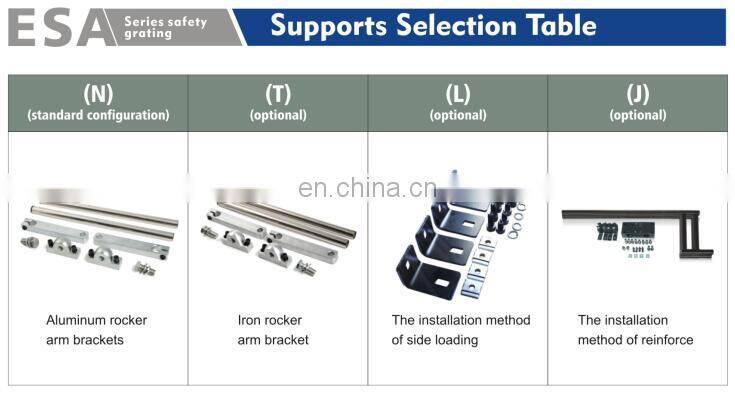

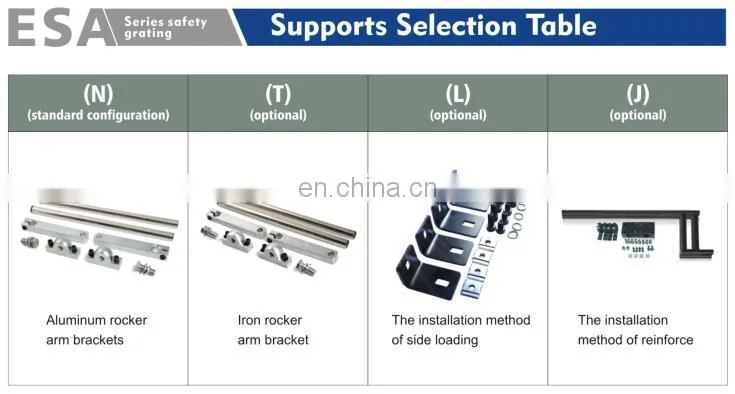

4. Low power dissipation design. Various mounting bracket, flexible way to install, many kinds boundary dimension for choose. It can be according to the clients’ needs to order special mounting bracke

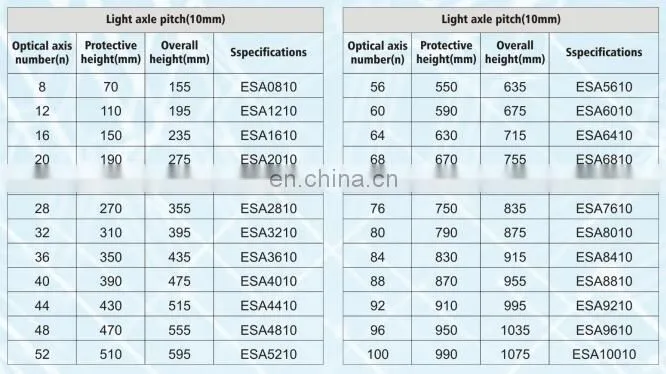

Technical parameters

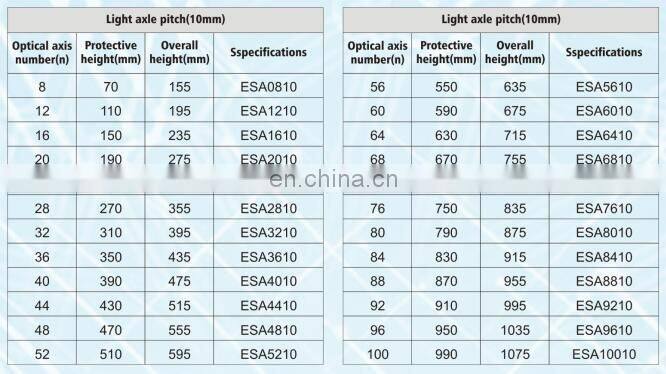

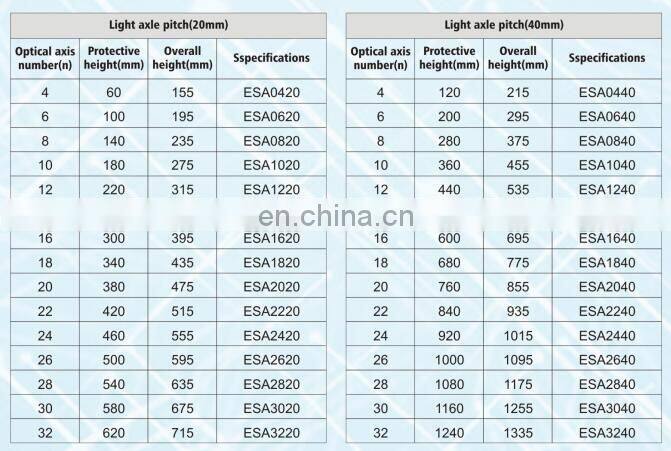

Protective height |
60-2000mm(conventional) |
Work environment temperature |
-10℃-55℃ |
Beam pitch |
10mm/20mm/40mm |
The storage environment temperature |
-25℃-70℃ |
Optical axis number |
4,6,8,10…… |
Work environment humanity |
when temperature at 200C,humanity less than 85% |
Mains input |
AC110V~220V,AC380V |
Relay life span |
1million times. |
Power dissipation: |
<15W |
Output contact rating |
AC380V/5A |
Response time |
less than 15ms
|
Anti light disturb |
10000Lux(incident angle I>5°) |
Isolation resistance |
≥100MΩ |
Dielectric strength |
ACl 500V.60S.no breakdown or flicker |
cross section dimension |
35*50mm |
Protective distance |
A:0-5m; B:5~10m; C:10-15m |

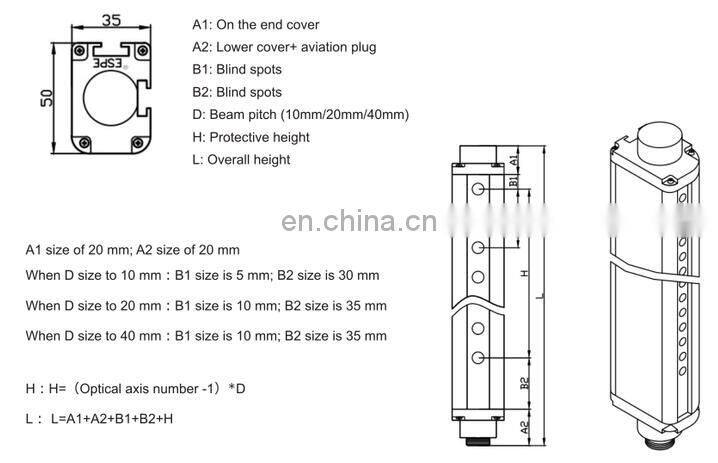

Dimensional drawing:
