CALT volume weight measure light curtan sensor
Long detection range and easy to align.
High resolution with 3.5mm detection distance
Easy to align
Working Principle:
MYD series Measurement Light Curtain consists of transmitter and receiver, the light emitted by the transmitter direct to the receiver formed the light curtain system. Placed between the transmitter and the receiver object will block part of the light that it cannot reach all parts to corresponding receiver devices. MYD series measurement light curtain use synchronous scanning to identify blocked channel. First, a light beam is emitted by the transmitter and at the same time the corresponding receiver find the light beam. After finishing scan the channel found by the receiver, then turn to the next channel until all the scans have been completed. When the scan is complete a cycle, the system will record which channel through and which channel are blocked. According to the definition of the system outputs signal, this signal can be analog signal or switching signal.
Technical parameter
Measure Distance:
MYD□□A1 series: 0-500mm
MYD□□A1 series: 0-500mm
MYD□□A5 series: 0-1000mm
MYD□□10 series: 0-3500mm
MYD□□20series:0-3500mm or 0-10000mm
MYD□□40 series: 0-3500mm or 0-10000mm
Measuring Height: 70mm-2660mm
Beam pitch: 1.25mm, 2.5mm, 5mm, 10mm, 20mm, 40mm, 80mm
The minimum size of object: 1.25mm, 2.5mm, 5mm, 10mm, 20mm, 40mm, 80mm
Power supply: 24VDC
Power consumption: < 15W
Ambient Temperature: -10-50ºC
Environment humidity: RH≤85%(20ºC)
Response time: <20ms
Insulation resistance: >100MΩ
Dielectric strength: AC 1500V/60S
Anti-light Interference: 10000Lux( incident angle≥5º)
Explanation: Transmitter and receiver section size is 35x42mm
H: Detection height
A: Shape length
B: Shape length (include cable joint)
H(mm)= (No. of beam = N )x( axis distance=D)
Width 10mm: A(mm)= H+45; B(mm)= H+72
Width 20mm: A(mm)= H+53; B(mm)= H+58
Note: All the dimension only for reference, actual size please refer object.

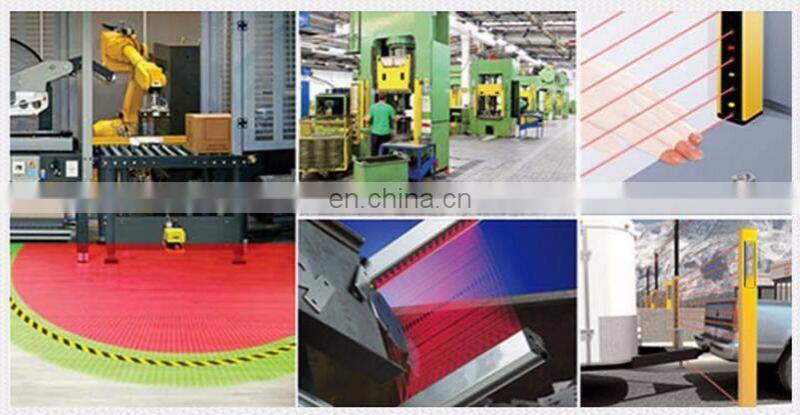

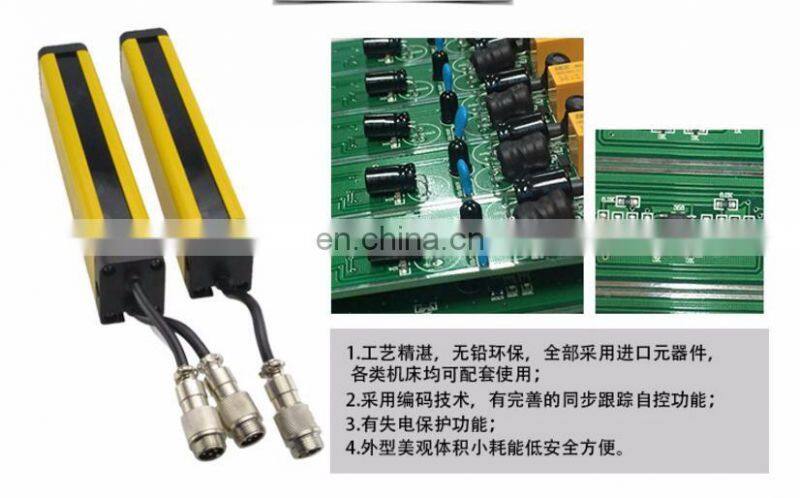

High precision MYD Series Measuring Light
Curtain used in high precision detection and

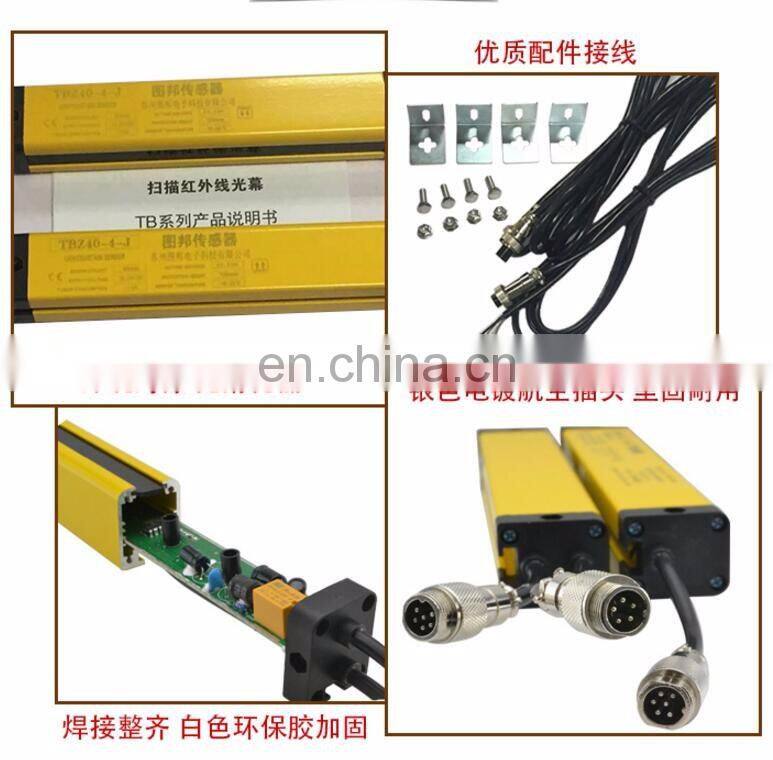

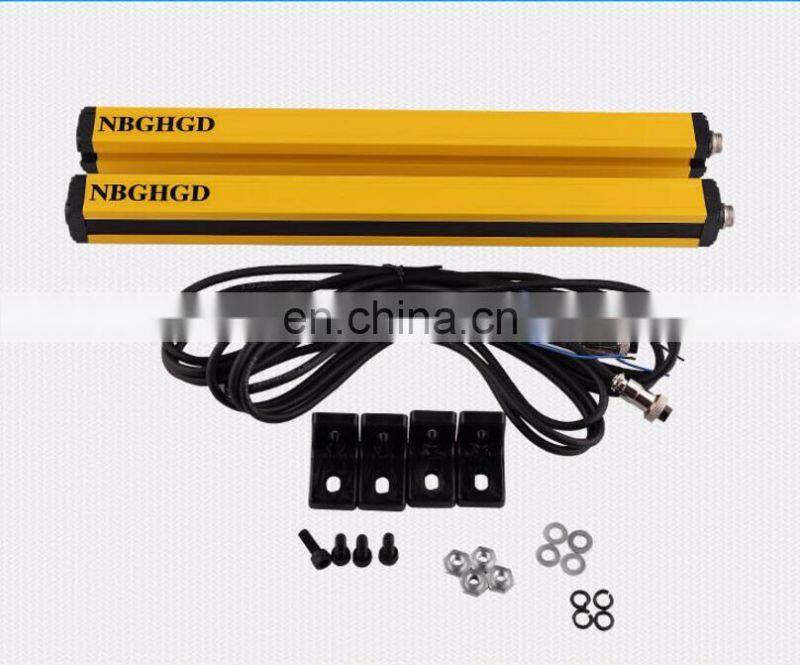

measurement. Including online detection, dimension measurement, contour detection, precision correction, holes detection, shape detection, edge and center positioned, tension control, part count, online product size detection and above similar detection and measurement. Each system includes a pair of high resolution light curtain and two cables.
