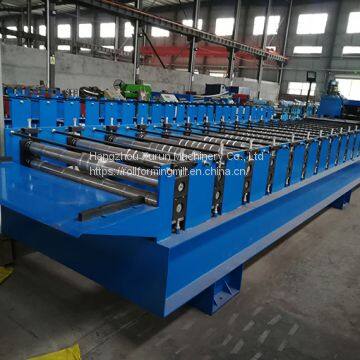

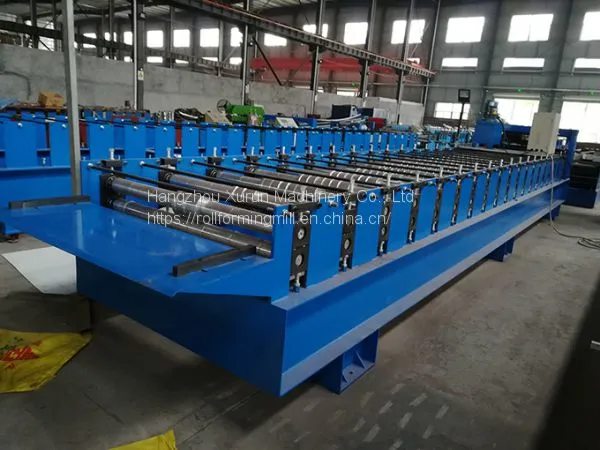

Roof Panel Roll Forming Machine for New Design Metal Work Steel Roof Panel Sunroof Sheet Park Leisure Pavilion
US$ 20000 - 50000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XURUN
Place of Origin:
China
Model Number:
Roof Panel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
40 days
Related Products
-
Roof Panel Roll Forming Machine for New Design Metal Work Steel Roof Panel Sunroof Sheet Park Leisure PavilionUS$ 20000 - 50000MOQ: 1 Set -
IBR Roof Panel Roll Forming MachineUS$ 18000 - 60000MOQ: 1 Set
-
IBR Roof Panel Roll Forming Machine Metal Profile MachinesUS$ 18000 - 60000MOQ: 1 Set
-
XR11-106-1060 Trapezoidal Roof Panel Roll Forming Machine Metal Profile Lines IBR Sheet Forming MachineUS$ 18000 - 60000MOQ: 1 Set
-
Roll Forming Machine IBR Roof Panel Trapezoidal Roofing Sheet Roll Forming Line Metal Profile MachinesUS$ 18000 - 60000MOQ: 1 Set
Brand Name
XURUN
Place of Origin
China
Model Number
Roof Panel
Use
Roof
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
3 years
Weight
About 6 tons
Dimension(L*W*H)
9m x 2m x 1.5m
Production Capacity
3m/min
Condition
New
Voltage
380V
Power(W)
10.5KW
Type
Tile Forming Machine
Tile Type
Colored Steel
PPGI Galvanized Steel Type Sunroof Roll Forming Machine
Profile drawing:
Effective width: 1099mm
Coil width: 1200mm
Thickness: 0.4-0.6mm
Equipment list:
| 1 | 5-ton Manual Uncoiler | 1 set |
| 2 | Entery Guide | 1 set |
| 3 | Rollformer (19 pairs of roller stations) | 1 set |

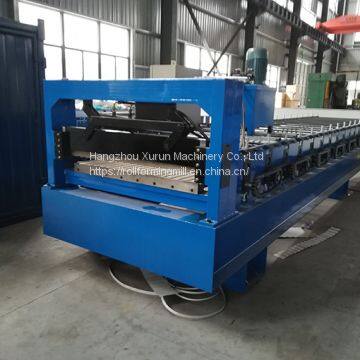

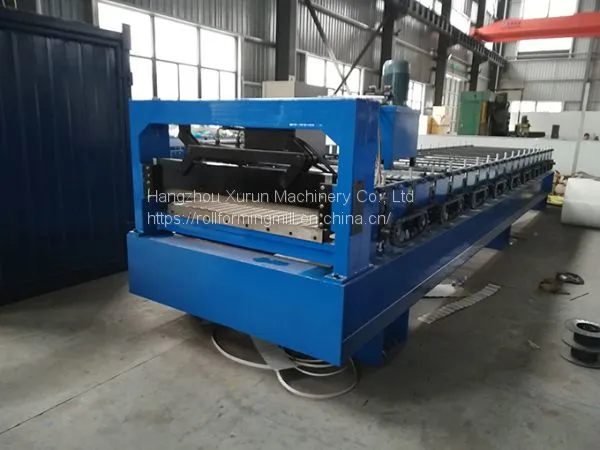

| 4 | Hydraulic Cutting Device | 1 set |
| 5 | Run Out Table ( 2 meters length) | 2 pcs |

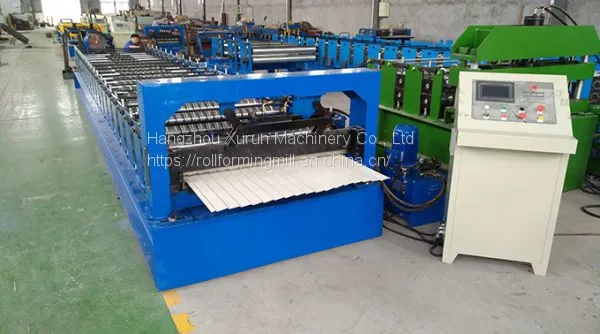

| 6 | PLC Control Panel ( Mitsubishi, Japan brand) | 1 set |
| 7 | Hydraulic Station (2.2KW) | 1 set |
Main parameters:
| 1 | Max. Coil width | 1099mm |
| 2 | Material thickness | 0.4-0.6mm |
| 3 | Raw material | Galvanized steel, PPGI steel |
| 4 | Yield strength | 235 Mpa |
| 5 | Roll station | 19 pairs to form (subject to final design) |
| 6 | Roller material | #45 steel, hard chromed coated |
| 7 | Shaft material | #45 steel, Equal ASTM 1045, modified treatment and high frequency quenching |
| 8 | Shaft diameter | D76mm solid shaft |
| 9 | Forming speed | 12~15m/min |
| 10 | Line speed | 7~8m/min |
| 11 | Transmission system |
AC moter, speed reducer, roller chains and sprockets Chain size: #16A-1 |
| 12 | Cutting type | Stop to cutting, hydraulic cutting |
| 13 | Cutting tolerance |
≤±2.5mm ( length≤ 5000mm) ; ≤±3mm ( 5000mm |
| 14 | Cutter blade |
Cr12 steel, quenched treatment, hardness HRC55-60, wear-resistance Blade thickness 20mm |
| 15 | Electric Elements |
PLC control panel, transducer imported from Mitsubishi, Japan brand. Other elements are from famous suppliers of China. |
| 16 | Voltage | 380V/50Hz/3PH Control: AC220V/DC 24V or as per customer's requirement |
| 17 | Power |
Main moter power: 5.5 kw Hydraulic station power: 2.2 kw |
| 18 | Machine Frame | 400H Welded steel plate |
| 19 | Side wall thickness | 20mm |
| 20 | Machine gross weight | Approx 6 tons |
| 21 | Machine dimension |
About 9.5 x 2m x 1.5m Layout approx 18.5m x 2m x 2m |
| 22 | Packing | 1 x 40'GP container |
