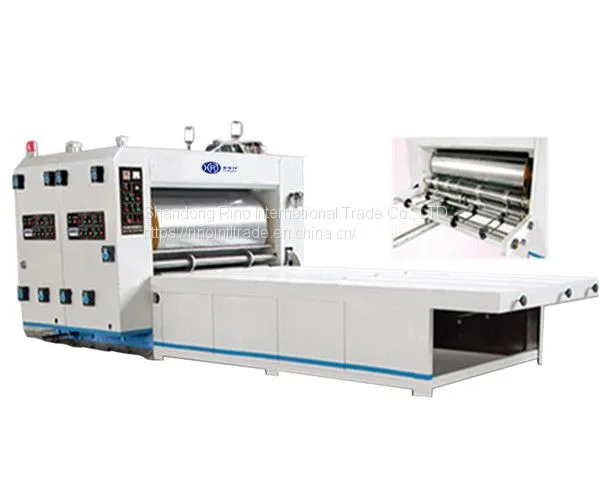

Longway board flexo printer
Printing Machine
Chain-drive feeder printing machine
model |
HP5-1650 |
HP5-1850 |
HP5-2000 |
HP5-3000 |
Print area |
2400*1450 |
2400*1600 |
2400*1850 |
3000*1800 |
Maximum speed |
60pcs/min |
60pcs/min |
60pcs/min |
60pcs/min |
Total power |
5.5kw |
5.5kw |
7.5kw |
11.5kw |
Specification
1.To adopt chain type paper feeding way, both side limit blocked by ruler, to ensure the paper slotting accurately.
2.Phase structure adopts planetary gear type, 360 degrees electrical adjustment, digital displaying.
3.All transmission adopts cross slide block structure, spray type lubricating circulation oil, gears are keyless connection, eliminate the connection gap.
Paper feeding unit
1.Cardboard dimension adopts guide screw adjuster, easily and quickly；
2.Adjustable worktable, suitable for every kind paperboard;
Printing unit
1.All the axle and roller was used the high grade steal , computer dynamic balance; eliminate the centrifugal effect, plated with rigid chrome and grinded surface.
2.Printing phases was adopted the planetary gear structure, the electric digit 360 adjustment , show the digit(stop, running can adjustment).
3.Printing roller landscape orientation was adopted the touch screen control, and electric digit adjustment, the adjustment scope is 20mm.
Hot sale various high quality Carton Cardboard Machine, Folder Gluer Machine, Lead Edge Feeder Printing Machine, Automatic Die-cutting Machine, Manual Die-cutting Machine, Gift Box from China leading manufacturer. Our Carton Cardboard Machine are high quality, cost effective and deliver more benefits. Welcome to choose us!
