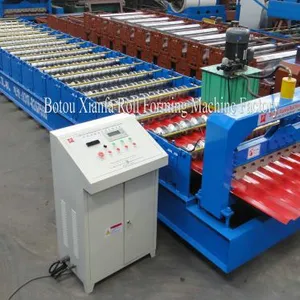

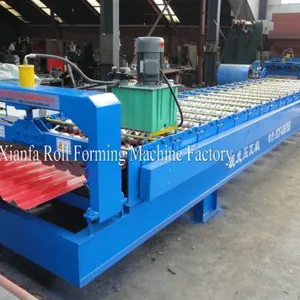

IBR Alu Zinc Wall Board Making Machine
- 20 Set / Sets per Month
- Tianjin New Port
- 30 days
- Drain Pipe Application culvert pipe making machine
- Centrifugal spinning Concrete Pipe Machine
- Suspension Roller concrete pipe making machine in Indonesia
- Horizontal suspension roller concrete pipe making machine
- Prestressed Concrete Pipe Manufacturing Plant in Kenya
- customized cement culvert pipe machine
Product Details
Brand Name: | XF | Place of Origin: | China | Model Number: | XF21-136 |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1year | Weight: | 3900KG |
Dimension(L*W*H): | 8.58*155*1.51m | Production Capacity: | 0-15m/min | Voltage: | 380V 50Hz 3phases |
Certification: | ISO/CE/SGS | Application: | wall | Features: | easy operation |
Power(W): | 4+4KW | Automatic Grade: | Automatic |
Product Description
Botou Xianfa Roll Forming Machine Factory
Our factory was established in 1996, we are the professional manufactory of roll forming machine. The main products are trapezoidal sheet roll forming machine, corrugated sheet roll forming machine, glazed tile roll forming machine, double layer roll forming machine ......
We have passed ISO9001 quality certification and European CE security certificate.
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions’ customers.
We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request.We believe that our cooperation will create bright future.
Quick Detail

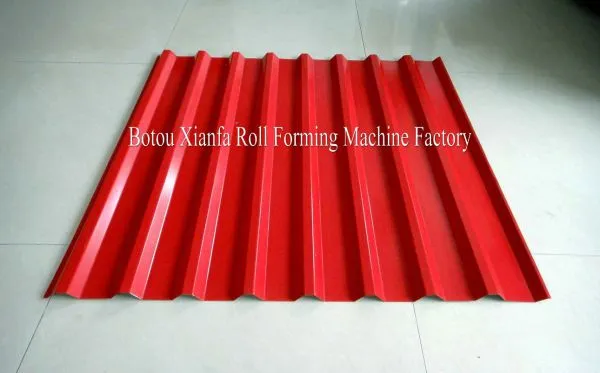

1.Suitable to process: Color steel plate
2.Width of the plate: 1250mm
3.Rollers: 18rows
4.Dimensions: 8.58*1.55*1.51m
5.Power: 4+4kw
6.Thickness of the plate:0.3-0.7mm
7.Diameter of the roller:Φ70mm
8.Weight: 3900KG
9.Voltage: 380V 50Hz 3phases
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC control

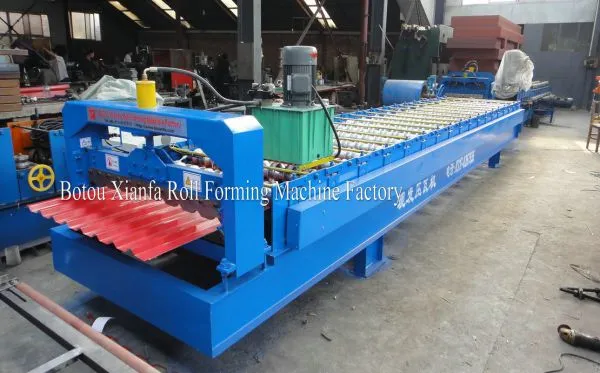

Machine Components
Manual Uncoiler | Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5000KG.Inner diameter: 500-508mm |

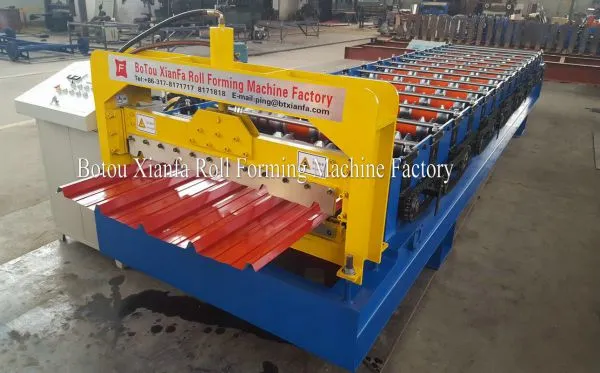

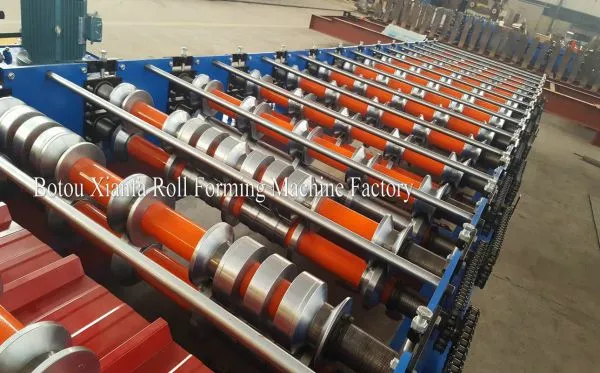

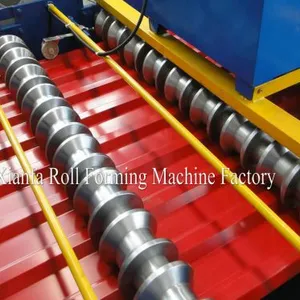

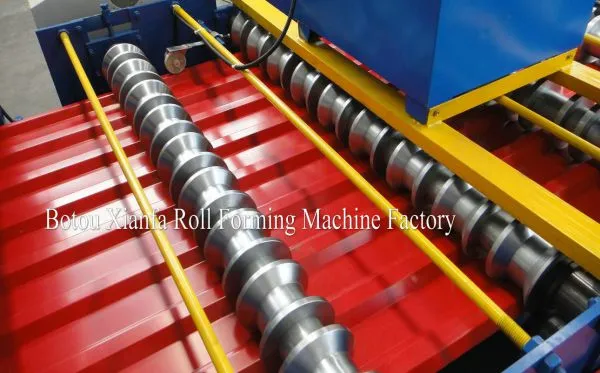

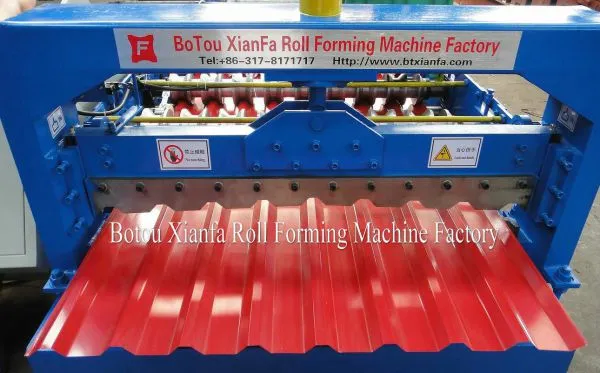

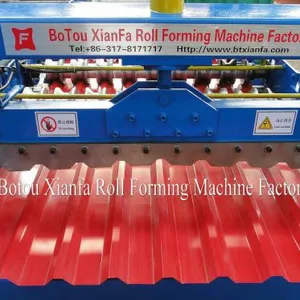

Main Roll Forming Machine | Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. |

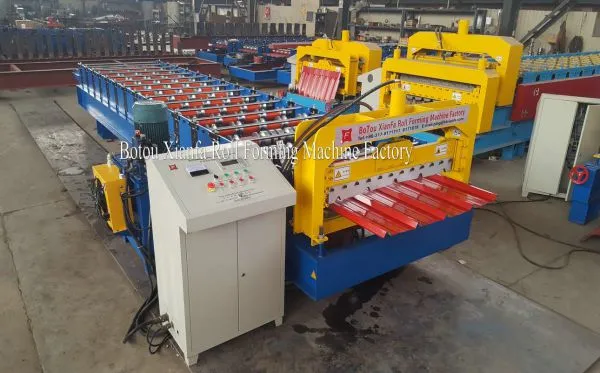

Hydraulic System AND Computer Control Cabinet | Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC: EURA(Can customize as customer require) |

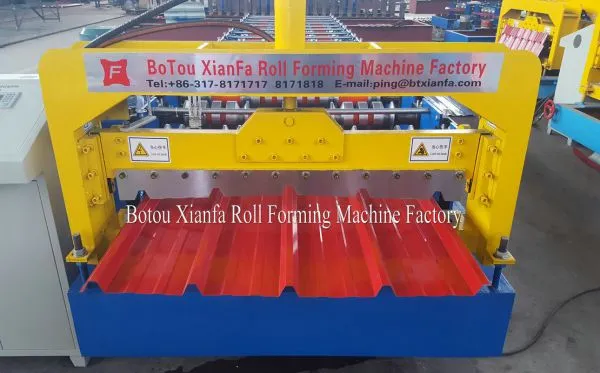

Shearing Mechanism | It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
Output Table | It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. |

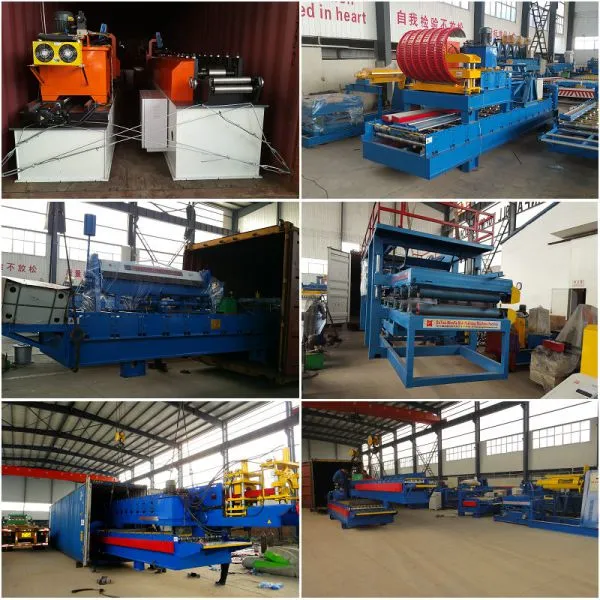

Packaging & Shipping
1.We have professional technicians for loading
Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
Certification
Our service
Why Choose Botou Xianfa Roll Forming Machine Factory
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world
We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
Xianfa is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
