Brake chamber Single brake chamber T24
Brake chamber also known as pump, its role is to transform the pressure of compressed air into the brake camshaft rotational mechanical force, to achieve the braking action.
Brake chamber consists of an intake port, the cover, the diaphragm, the bearing plate, the return spring, the shell, the push rod, connecting fork, and the composition of the clip bolt.
Specification:
1) Working pressure: 800kPa
2) Maximum working pressure: 1MPa
3) Pushrod stroke: 0 - 64mm
4) Ambient temperature: - 40 ~ +80°C
6) Surface finish: 100hrs clear or yellow zinc plated, Black powder coating

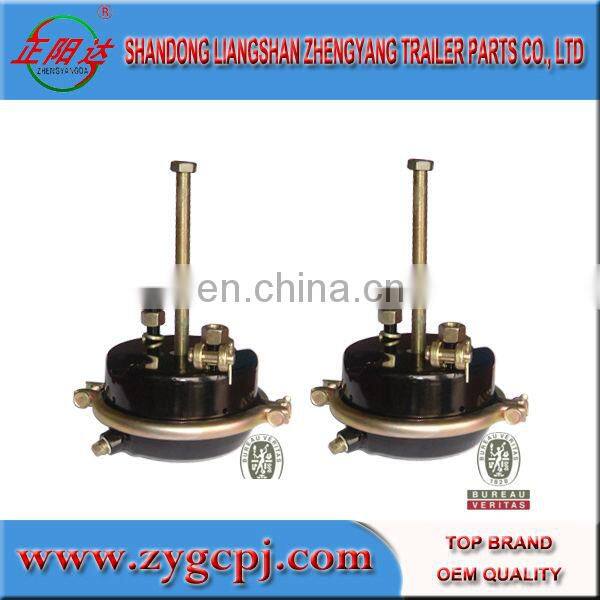

T24 single air chamber for semi trailer/single brake chamber

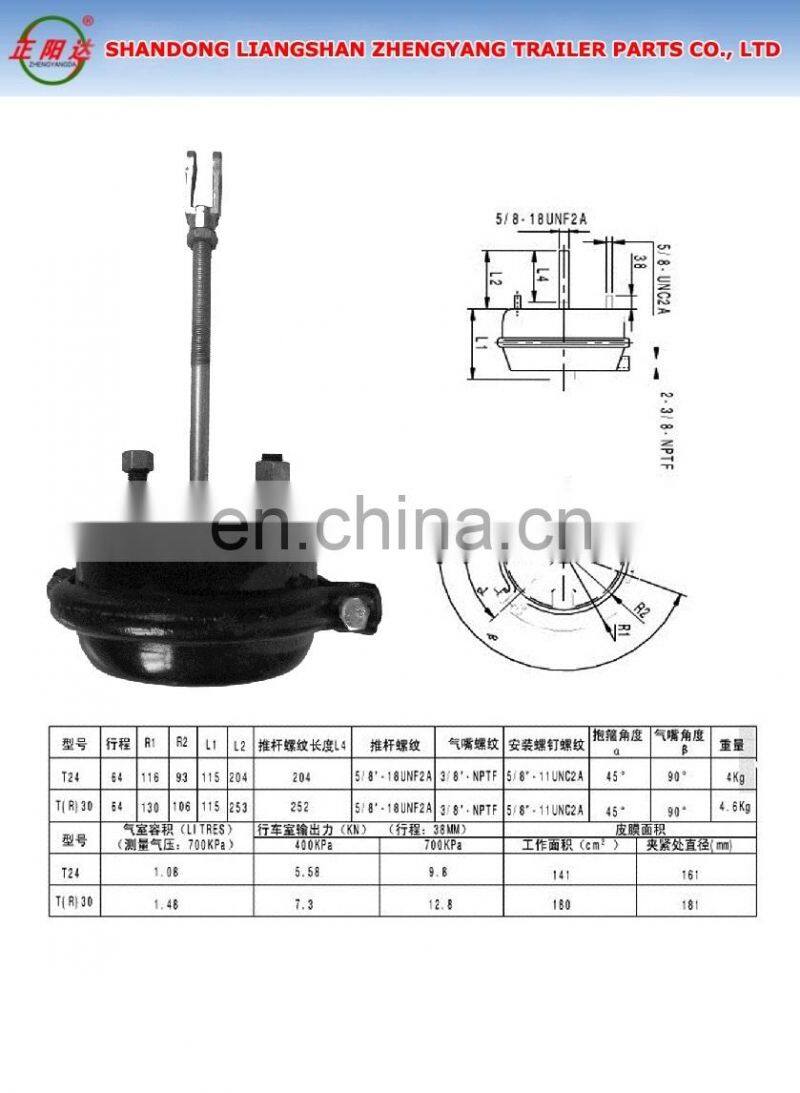

Model No.:T24
Stoke: 64
Port thread: M16*1.5
Bolt thread: M16*1.5
Bolt Centre:120.7
Push rod thread: M16*1.5
Push rod length: 270mm
Material: SPHC steel
Weight:3.8kg
Trailer Parts Superstore offers a wide selection of direct replacements for all popular air brake chambers and diaphragms. All brake chambers have a fully threaded shaft for maximum adjustability and includes mounting hardware. All diaphragms are made from a rubber/neoprene blend and are fabric reinforced for extra strength and long life.
We are a professional manufacture of semi trailers and trailer parts, such as:
1. Axles (American and German, BPW and type, spoke axle, low loader, concave axle)
2. Suspension (bogie, spoke bogie, American suspension and German suspension)
3. Fifth wheel (2”and 3.5”)
4. King pin (2”and 3.5”, weldable and Bolton)
5. Landing gear (inboard gear and outboard gear)
6. Other components like twist container locks, screw locks, brake chamber, wheels and other
Components are available.
If any products meet your interest, please inform us, specific catalogue will be send at once. Hope to cooperate with you!
