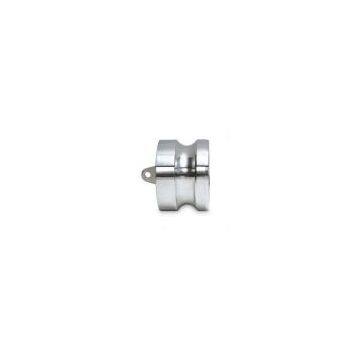

S1-Stainless Steel Camlock Coupling

S1- Stainless steel Camlock coupling (cam and groove quick coupling)

coupling stainless steel Camlock coupling
Standard: Our camlock coupling are made to standard of A-A-59326 (previously called MIL-C-27487) or DIN 2828.
Casting method: Investment casting
Sizes available: From 1/2" to 6"
Types available: A, B, C, D, DC, DP, E, F, DD, AA, DA
Body material:CF8M casting (SS316)
CF8 casting (SS304)
Other material are available on request
Cam levers:We use stainless steel cam levers.
Pins, Rings and Safety clips:
We use stainless steel Pins, Rings and Safety clips.
(Note: Safety clips are only available when required by the client, the client have to pay additional if need safety clips)
Sealings:NBR EPDM Viton PTFE envelop gasket Other materials are available on request.
Threads: NPT
BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT)
