2 stories recycling portable prefab houses
1. Introdcution :
When build single floor house,we only need rigel panel.

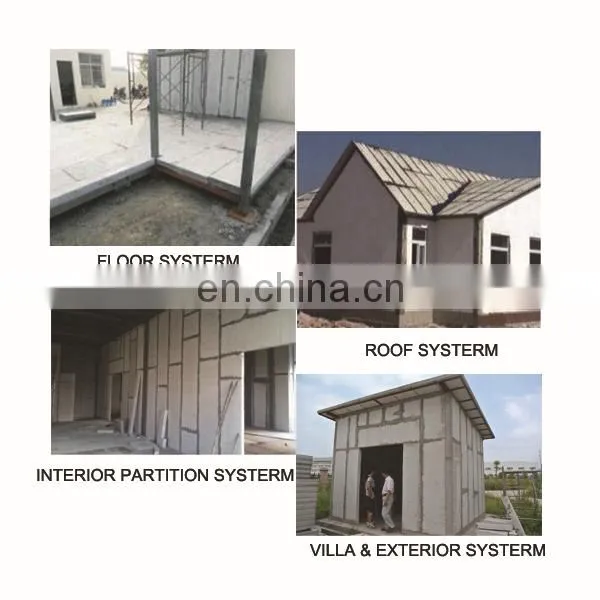

When build double or more floors, we will build the concrete or steel frame first. Then build the rigel panel as the exterior and interior wall. And,The roof system , floor system and wall body of Rigel Prefab House are all made by rigel lightweight eps cement sandwich panel , it has the advantages of fast construction , beautiful , durable and environmentally-friendly .
The house's design &decoration can be made according with customer's requirement and we will provide complete designing & installation drawings , installation guide and send engineers to provide with projects
2. Main Material of Prefab House :
|
main material
| |||||
| steel structure and wall body | wall structure frame | U shape steel frame | roof&ceiling | steel roof truss | C steel or steel structure |
| concrete frame | roof panel | eps cement sandwich panel or color steel sandwich panel | |||
| exterior | eps cement sandwich panel | roof tile | strip slate or glazed tile | ||
| exterior wall decorative board | imitation brick texture wall | ceiling | PVC panel or gypsum board | ||
| interior wall | eps cement sandwich panel | floor | floor lateral support | round steel or concrete | |
| interior wall decorative material | tile | floor girder | H steel | ||
| panel used in kitchen & toilet | eps cement sandwich panel | floor panel | eps cement sandwich panel | ||
| comer post | suquare tube or concrete | floor decorative board | tile or composite wooden floor panel | ||
| wall pillar | rectangular tube or concrete | toliet ground tile | tile | ||
3.Description of EPS Cement Sandwich Panel :
|

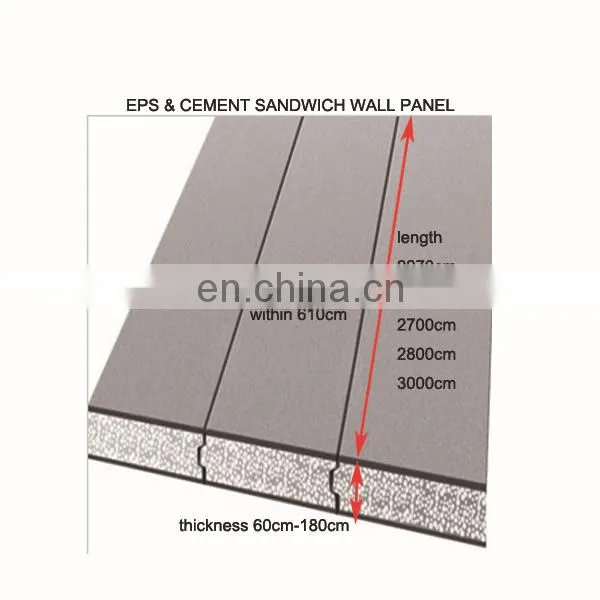

EPS cement sandwich wall panel
| |

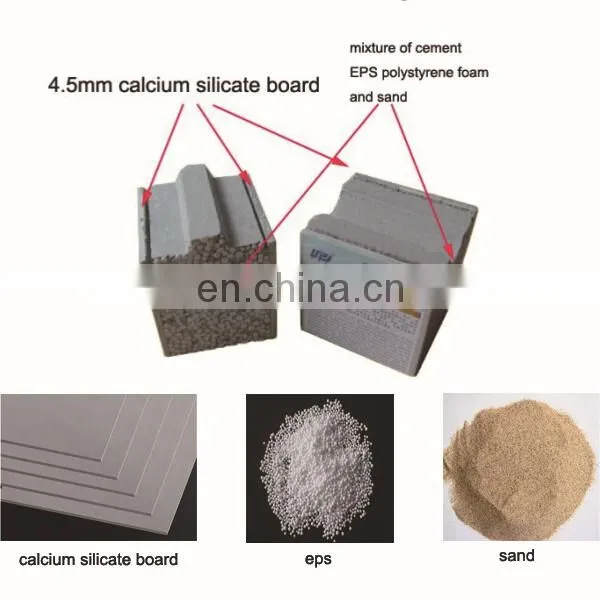

| 1.Composition: •Core materials: cement, EPS, sand and additives. •Surface materials: cement calcium silicate board. |
|
| 2.Specification: •Thickness: 60, 75, 90, 100, 120, 150, 180mm •Width: 610mm •Length: 2270mm--3000mm (custom-made length can be made for volumn order). |
|
| 3.Usage: Interior wall, exterior wall,roof and floor on steel or concrete structure. For various buildings, additions or renovations. |
|
|
4.Characteristics: •Energy-saving, lightweight, and environmental protection |
|

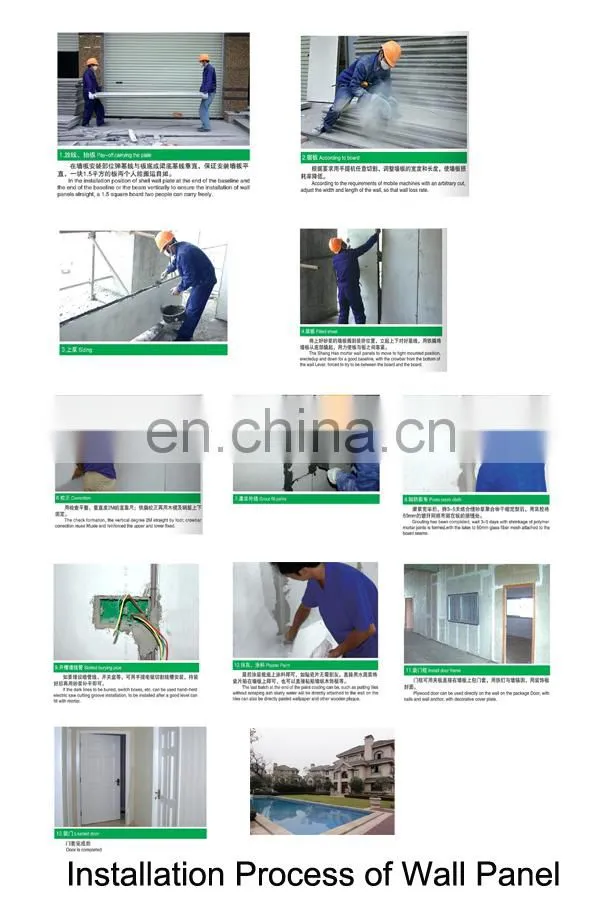

4. Install process of EPS Cement Sandwich Panel

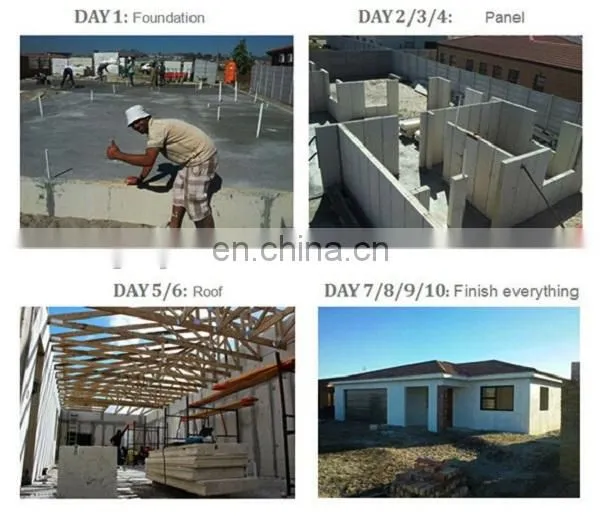

5. Install process of prefab house

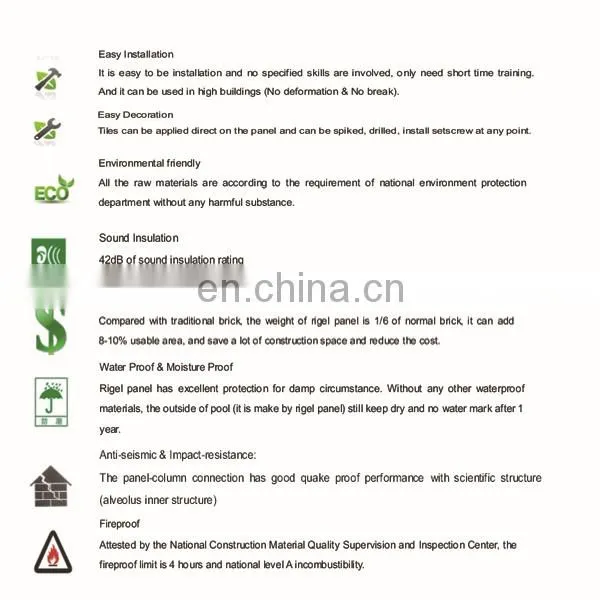

6. Advantages of Prefab House
The main wall building material is from EPS & cement sandwich wall panel, which will make the prefab house
- 96% ENERGY SAVING warm preservation of DQ Panel
- 300% FAST INSTALLATION
- 39% LABOUR COST SAVING
- 8 GRADE ANTI-SEIMIC
- 240 MINS FIRE PROOF (1000 degree)
- 70 YEARS LIFE SPAN

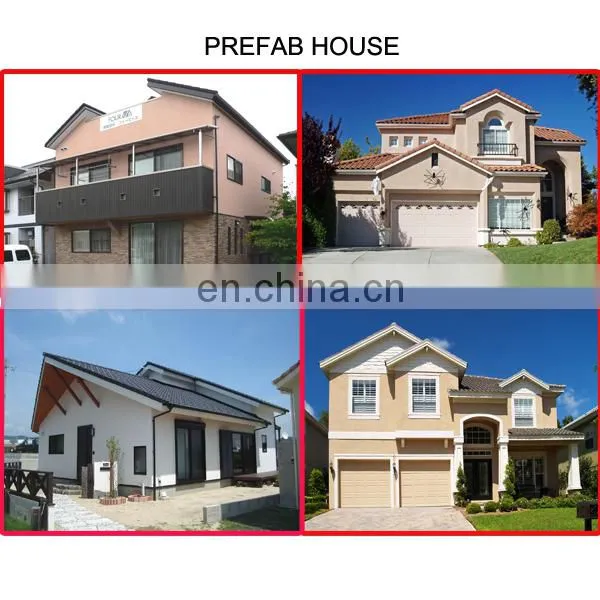

7. Sample of Prefab House
2 stories recycling portable prefab houses

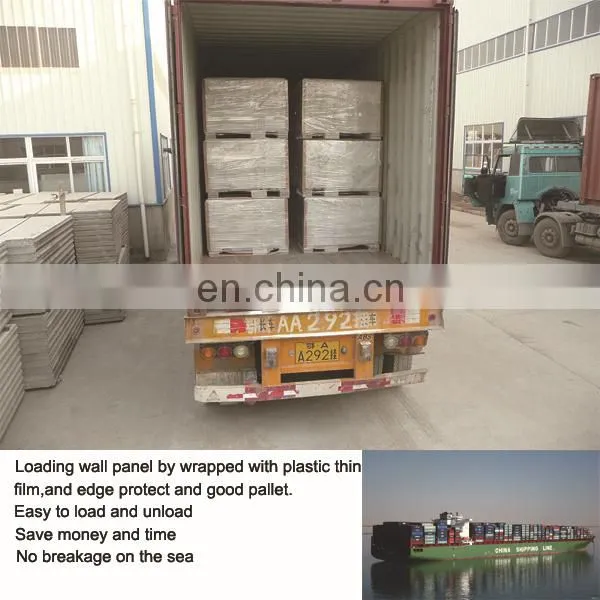

| Item | Specification(mm) | Loading 20GP | Loading 40HQ | ||
| Quantity | Weight | Quantity | Weight | ||
|
EPS&Cement sandwich panel |
2270×610×60mm | 436m²/315pcs | 18000kg | 565m²/409pcs | 26000kg |
| 2270×610×75mm | 349m²/252pcs | 17500kg | 481m²/349pcs | 25900kg | |
| 2270×610×90mm | 287m²/207pcs | 15900kg | 419m²/304pcs | 25769kg | |
| 2270×610×100mm | 262m²189pcs | 16900kg | 376m²/273pcs | 25935kg | |
| 2270×610×120mm | 212m²/153pcs | 15000kg | 340m²/247pcs | 25441kg | |
| 2270×610×150mm | 174m²/126pcs | 16000kg | 287m²/208pcs | 26000kg | |
| 2270×610×180mm | 137m²/99pcs | 14800kg | 230m²/167pcs | 25885kg | |

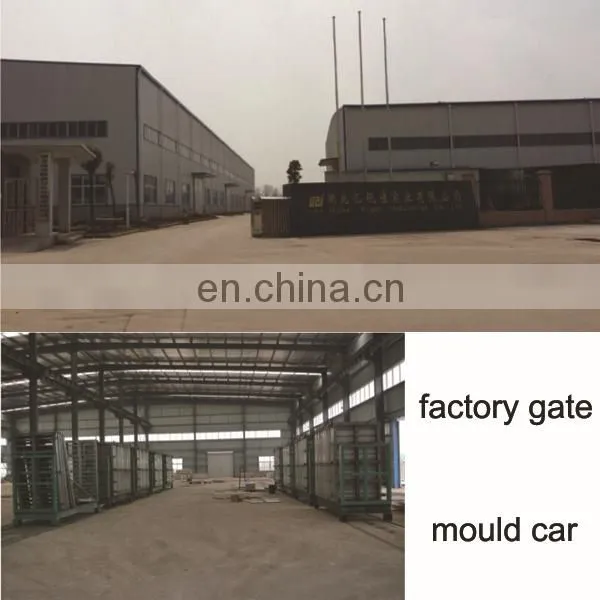

Hubei Rigel Industrial Co.,Ltd is one of the biggest manufacturers in the East Lake New-Tech Development Zone of Wuhan, integrating the development, production, sale and installation of light weight energy saving panels and relevant machines.The production base is located in the Ezhou Economical Development Zone. The company invested in more than RMB15,000,000,the factory area is 30,000 square meters, and annual output can reach up to 500,000 square meters of panels and 100 sets of machines. Now there are more than 200 professional personnel for Research, Management, Sale and Construction and can provide excellent technical support and after-sales service.
♥ If you want to know more information about our products welcome to contact us in any time, And welcome to our company!
Hot-line: 0086-15807158212
Lydia is at your service in 24 hours.
Skype: rigelpanel_2
