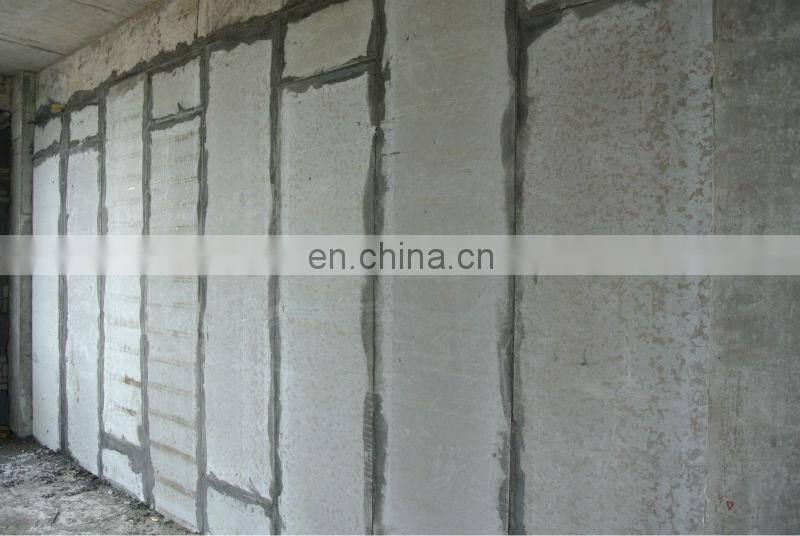

Exterior wall interior wall panel insulation boards wall divisions

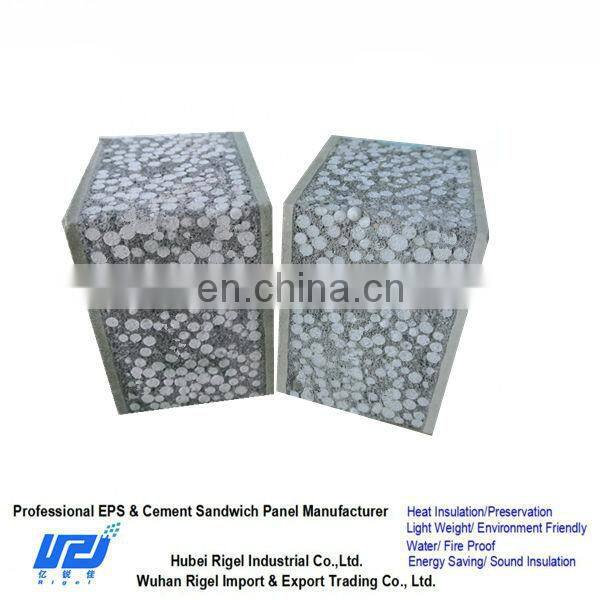

1.EPS sandwich panel of professional supplier in China Construction Material
2..Flatter surface,Cost saving
Composition: Calcium silicate board(face panel) + Cement and Eps(core)+Calcium silicate board(face panel)
Dimension: (L×W×T): 2270-3000mm×610mm×60/75/90/100/120/150/180mm
Application: Any interior and exterior partition on steel or concrete structure building. Or factory, hotel, school, hospital, office, shopping mall, apartment, gym, conference center, and rebuilding project.
Advantages of Rigel Panel:High Intensity,Solid Heart,Thin body,Waterproof,Fireproof,Sound Insulation,Heat presercation,Dampproof,Quakeproof,can be nailed,hanged,sawed,can be faced to the ceramic tiles.
Features:
| Environment friendly | All the materials have no pollution in produce, no waste in installation |
| Energy-saving | The core material of Rigel panel is the EPS polystyrene grain which has good heat preservation function,can reduce the cost of the electric. It is the best choice for energy saving. |
| Light weight | The weight of the Rigel wall panel is 10 times lighter than the traditional blocks |
| Cost saving | Thin body of Rigel wall panel can save the area 8-10% compared with the traditional thick blocks. At the same time, the construction cost can be reduced. |
Waterproof and dampproof | The test shows that make a water container with Rigel wall panel and fill the water. Without any waterproof facing after one year and the outside of the pool keep dry and no water mark. There is no bead on the surface in the wet climate |
| Fire-proof | Rigel panel has good fireproof performance.Tested by the National Construction Material Quality Supervision and Inspection Center, the fireproof limit is 4 hours and national level A incombustibility |
| Sound insulation | Rigel wall panel can reduce 39db-50db |
Dry way construction | Rigel wall panel make it easy to clean up the fabricating yard after installation |
| Quakeproof | Rigel wall panel is larger and lighter than the traditional block, it can reduce the weight on the foundation, so when earthquake comings, the panel will not easily destroyed. |
High efficiency | Achieved the assembly installation, the speed is 6-7 times higher than the traditional blocks, and the worker can do more in the same time |

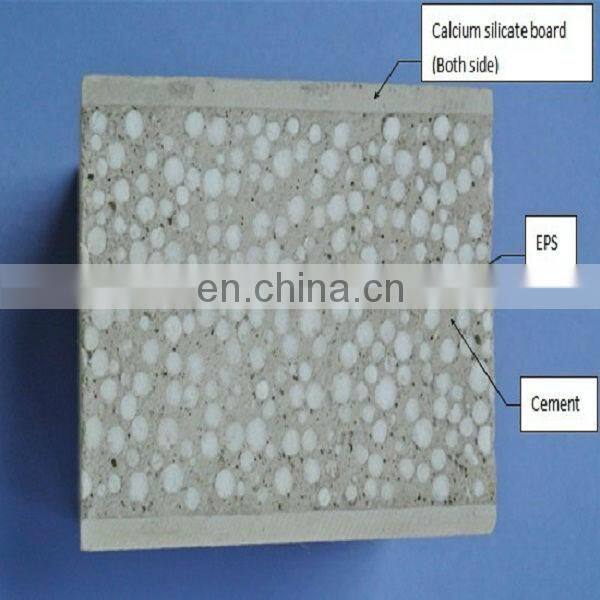

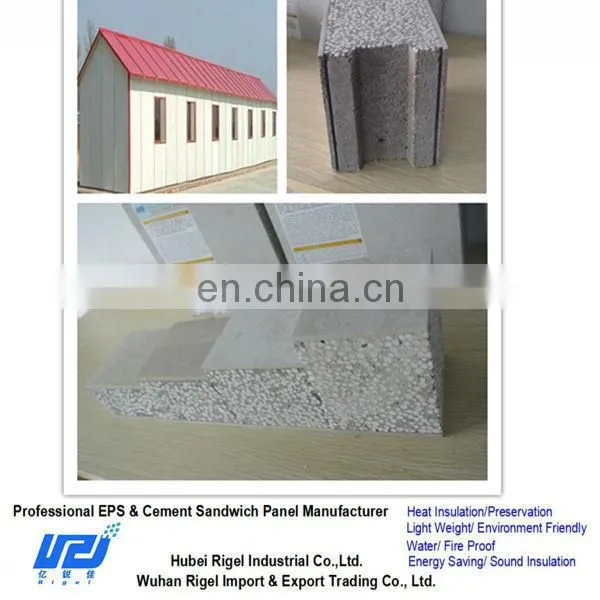

Stucture of EPS cement sandwich panel:
Technical Specifications of EPS cement sandwich panel:
| No | Item | National Standards | Testing Results |
| 60mm 90mm 120mm | 60mm 90mm 120mm | ||
| 1 | Anti-impact Capacity/times | ≥5 ≥ 5 ≥5 | ≥8 ≥10 ≥15 |
| 2 | Anti-bending damage load | ≥1.5 ≥1.5 ≥1.5 | ≥3 ≥3 ≥3 |
| 3 | Compressive Strength /Mpa | ≥3.5 ≥3.5 ≥3.5 | ≥5 ≥5 ≥5 |
| 4 | Softening Coeffcient | ≥0.80 ≥0.80 ≥0.80 | ≥0.80 ≥0.80 ≥0.80 |
| 5 | Surface Density kg/m² | ≤70 ≤90 ≤110 | ≤45 ≤60 ≤75 |
| 6 | Moisture Rate a/% | ≤12/10/8 | ≤10/9/7 |
| 7 | Drying Shrinkage value /mm/m | ≤0.6 ≤0.6 ≤0.6 | ≤045 ≤0.5 ≤0.5 |
| 8 | Single point hanging strength /N | ≥1000 ≥1000 ≥1000 | ≥1200 ≥1300 ≥1500 |
| 9 | Sound insulation capacity in the air /Db | ≥30 ≥35 ≥40 | ≥35 ≥40 ≥45 |
| 10 | Fire proof limit /h | ≥1 ≥1 ≥1 | ≥3 ≥4 ≥4 |
| 11 | Heat transfer coefficient b/w/m2.k | ≤1.0 | ≤0.8 ≤1.0 ≤0.45 |
| 12 | Radioactivity Limit | ≤1 ≤1 ≤1 | ≤1 ≤1 ≤1 |

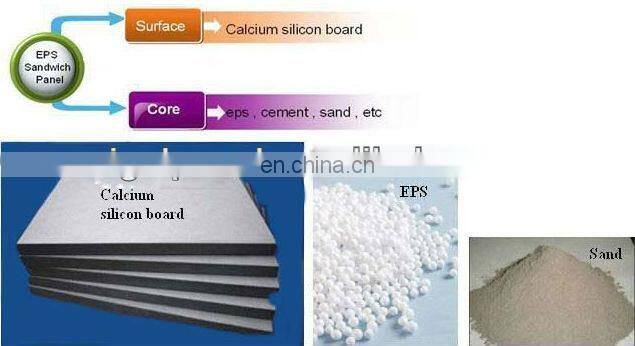

Material of EPS Cement sandwich panel:

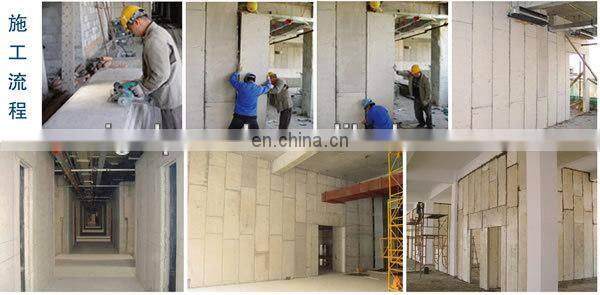

Working Process of eps cement sandwich panel:

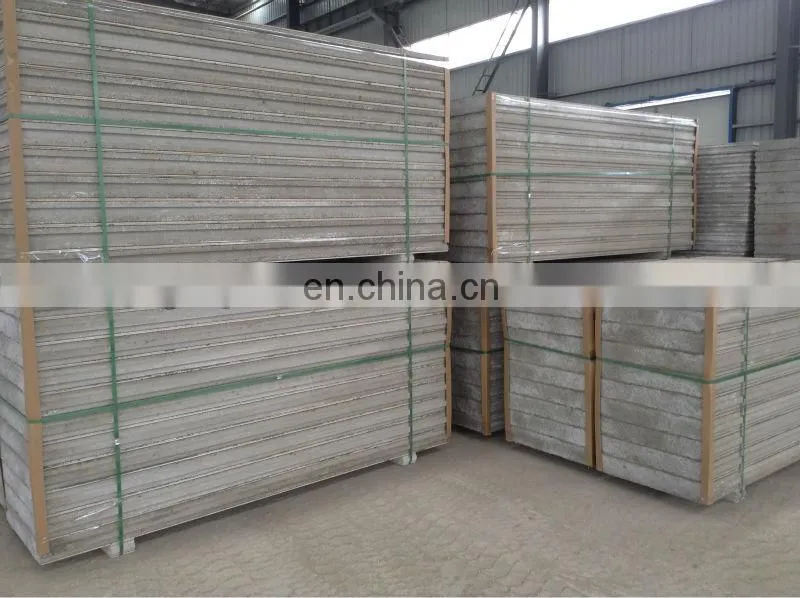

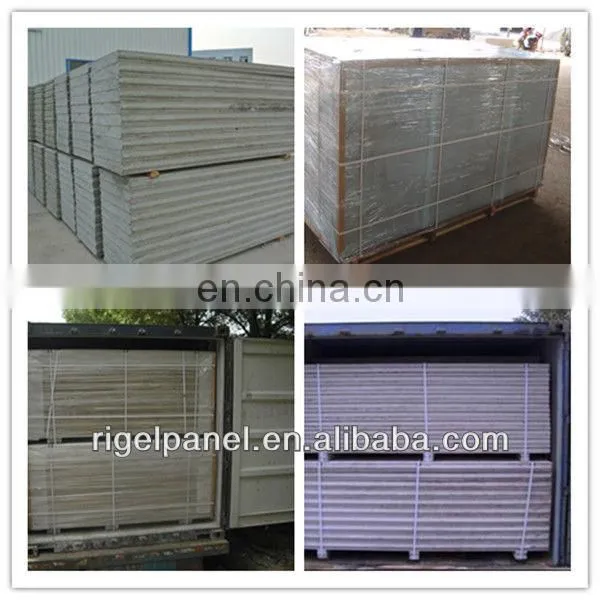

Package of EPS Cement sandwich panel:

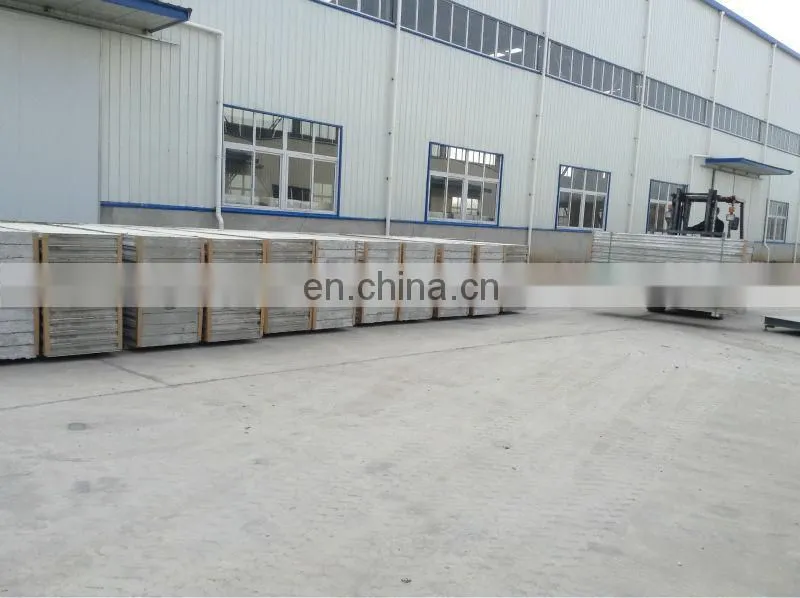

EPS Cement sandwich panel producing factory:
