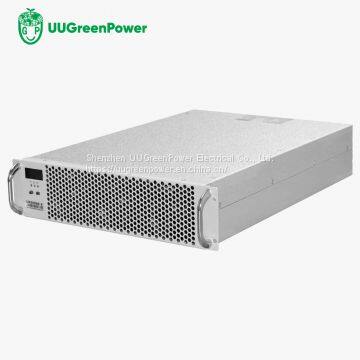

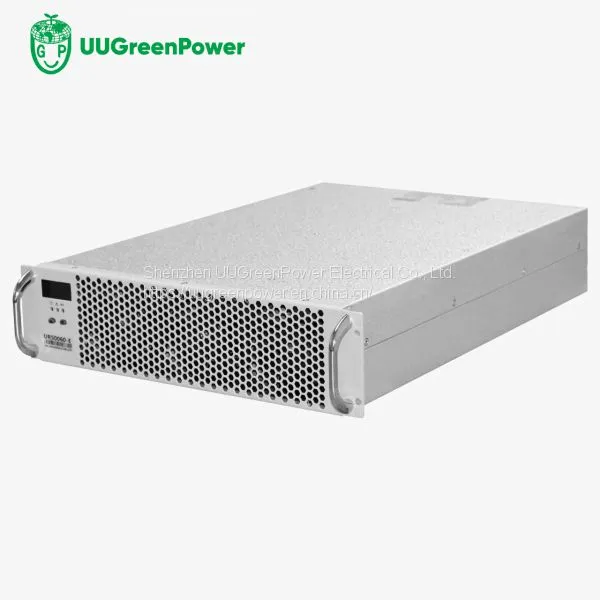

30KW 96% Efficient Electric Vehicle Power Supply Module/ Charging Rectifier/ Charger Station for EV photo-2

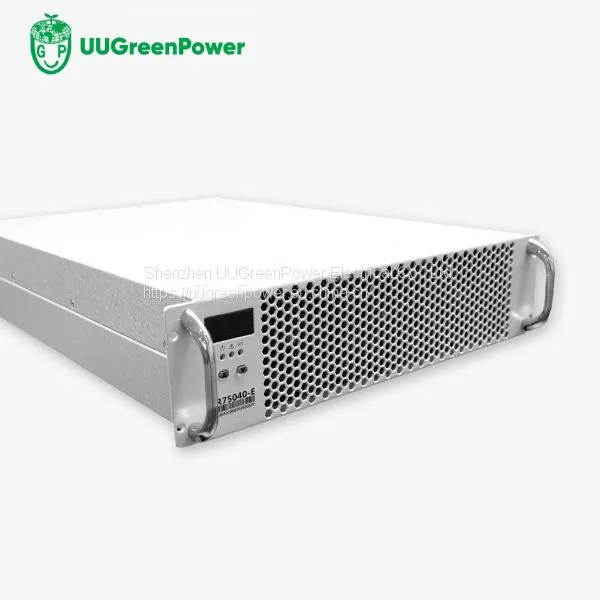

30KW 96% Efficient Electric Vehicle Power Supply Module/ Charging Rectifier/ Charger Station for EV photo-3

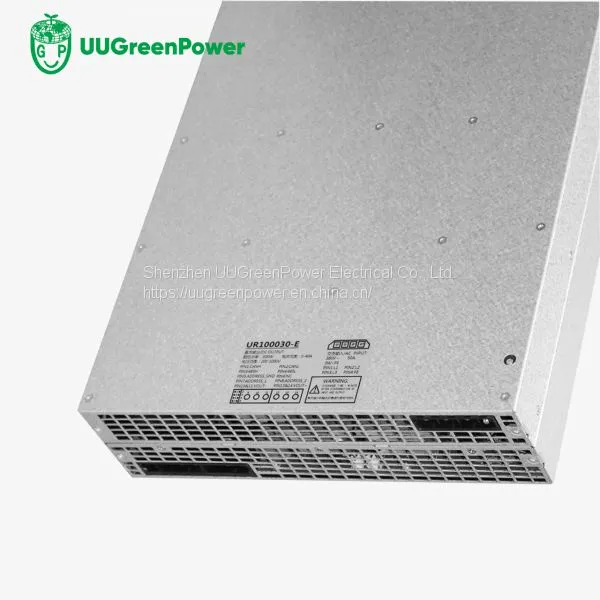

30KW 96% Efficient Electric Vehicle Power Supply Module/ Charging Rectifier/ Charger Station for EV photo-4

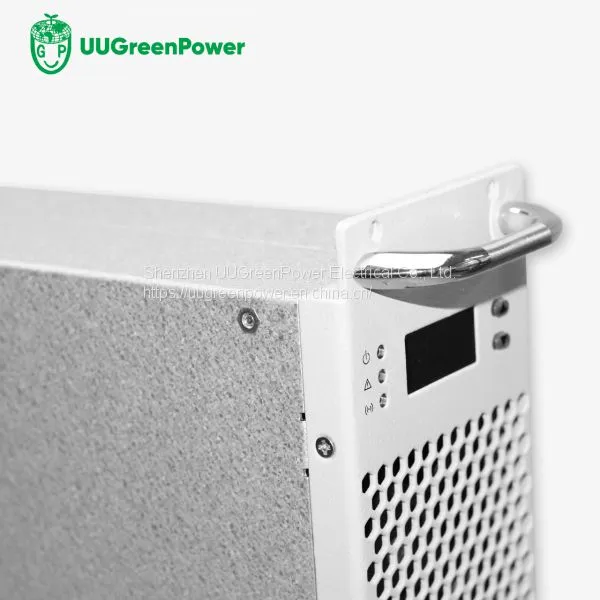

30KW 96% Efficient Electric Vehicle Power Supply Module/ Charging Rectifier/ Charger Station for EV photo-5
US$ 1190 - 2250 MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2015
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Shenzhen UUGreenPower Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen, Hongkong
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

30KW high efficient 96% series power supply module adopts the latest power electronics technology, designed specifically for DC charger for new energy vehicles. With active power factor correction, green ultra-high efficiency, high power density, High reliability, intelligent control; the module uses forced air-cooled heat sinks and small size; with hot swap and built-in anti-battery current reverse protection circuit; with addresses automatic recognition and output voltage bleeder.




Features:

u  Ultra-high efficiency: the highest efficiency> 96%, rated efficiency> 95.5%;

u  Super small size: 300mm*84mm*437.5mm (height * width * depth);

u  Ultra high-power density: power density up to 45W/in³;

u  Ultra-wide output voltage range: 200VDC ~ 1000VDC;

u  Ultra-small output ripple voltage, peak-to-peak ripple ≤ 2V;

u  Ultra-small standby power consumption: standby power ≤ 10W;

u  Complete protection and alarm functions: input over/under voltage, output over voltage, over current, Over-temperature protection, output under-voltage alarm, output short circuit protection;

u  LED display, user-friendly operation, can display voltage, current, group, protocol, address, manual or automatic, fault information;

u  Support CAN, 485 bus communication, power modules can be grouped by controller;

u  Adopt DSP digital control and support voltage and current adjustment function;

u  Built-in anti-battery current reverse protection circuit, support hot swap;

u  Automatically identify and verify new addresses without manually setting them;

u  Built-in output voltage bleeder circuit.

Specification



Item

Parameter

















DC

output

Model

UR100030-E

UR75040-E

UR50060-E

Output

1000V/30A

750V/40A

500V /60A

Output rated power

30KW

Output voltage range

200~1000V

200~750V

200~500V

Output current range

0~33A

0~50A

0~80A

Output overvoltage protection

1010±5V

760±5V

510±5V

Output undervoltage alarm

190V±2V

190V±2V

190V±2V

Short circuit protection

In case of short circuit, it can automatically restore.

Output voltage tolerance

≤±0.5%

Load sharing

≤±3%

Max. startup overshoot

≤±1%

THD

≤5%

Boot time

Start time 3s≤t≤8s

Efficiency

Highest efficiency>96%, rated efficiency>95.5%









AC input

Input voltage

304VAC~485VAC

Input frequency

45Hz~65Hz

Number of phase

Three-phase + Protected earth wire

Power factor

Rated output load PF≥0.99

Max. input current

60A

Input undervoltage protection

255V ±5V,Hysteresis ≥15V

Input overvoltage protection

490V ±5V, Hysteresis ≥15V

Input power limit

Input voltage Vin is 304V ±5V~260V±5V, output power is derated linearly to 50%



     Communication & alarm



Communication

CAN & 485

Max. Number of parallel machines

60pcs

Alarm and status

Report to monitor via CAN bus or 485 bus ; Display it on LED panel







   Operating environment

Operating temperature

-30℃~65℃

Over temperature protection

On temperature >70°C±4°C or

Storage temperature

- 40°C~85°C

Humidity

≤95% without condensation

Pressure

79kPa~106kPa





   Physical characteristics

noise

55dB

cooling method

Fan cooling

Dimensions

300mm (H) *84mm (W) *437.5mm (D)

Weight

15Kg

MTBF

120000 hrs(40℃)
Packaging & Shipping

⇒Package:

  Standard carton package or package required by the customer.

IMG_0080



⇒Shipping:

Shipping By Air or By sea
