Turn-key Medical and Industrial Clean Room Working Project Equipmenet and Materials and Service
Sandwich Panels are widely used in different clean rooms as constructing materials for walls and ceilings.
MgO Grid Sandwich Panel is made of three parts:
Coated Steel Sheets / Stainless Steel Sheets, 2 pcs;
MgO material Grid (Sandwich Layer), 1 layer;
Specifications:

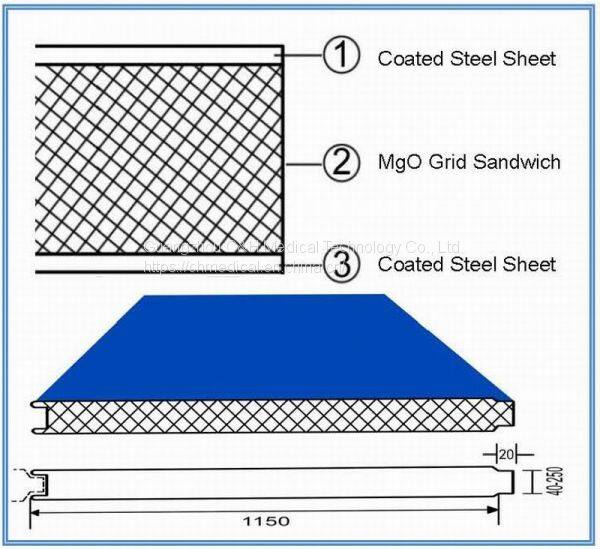

A standard MgO Grid Sandwich Material Light Coated Steel Sandwich Panel is as follow picture shows:
Most specifications and configurations of the sandwich panels can be optional as:
Sandwich Panel Thickness: 50mm / 75mm / 100mm Optional
Coated Steel Sheet Thickness: 0.426 / 0.476 / 0.526mm / 0.576mm Optional
Sandwich Panel Width: 950mm / 1150mm Optional;
Sandwich Panel Length: No more than 6000mm Customize;
Color: Standard Color Optional, or Customize;

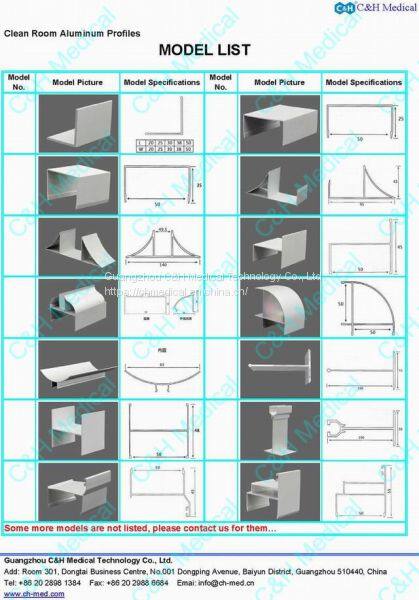

With clean room special aluminum profiles, the sandwich panels are used for clean rooms walls, ceilings.
Guangzhou C&H Medical Technology Co., Ltd. supply total solution service for Medical and Industrial Clean Rooms projects, including designing, manufacturing, installing, testing, commissioning, etc. We have good experience of project working out of China.

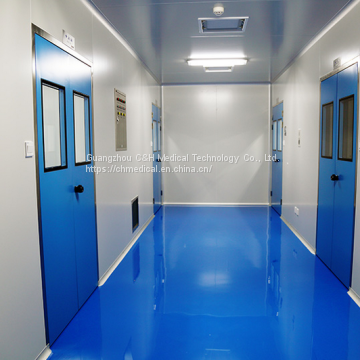

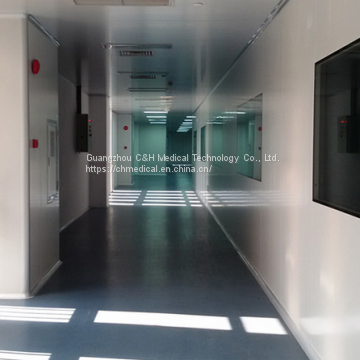

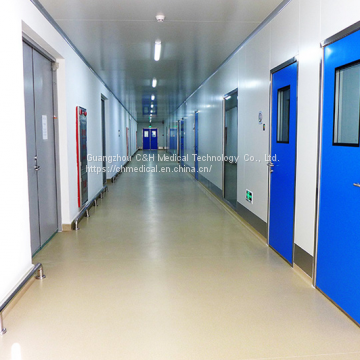

Below photos show the projects of industrial and medical clean room projects we did.
Laminar Air Flow Clean Operating Room Department
Industrial Clean Room of GMP Pharmaceutical Workshop
Industrial Clean Room of Electronics Workshop
Industrial Clean Room of Foods & Beverage Workshop
Please contact us for more inforamtion of products and service.
