Home > Products > Drum Chipper > Drum Wood Chipping Machine

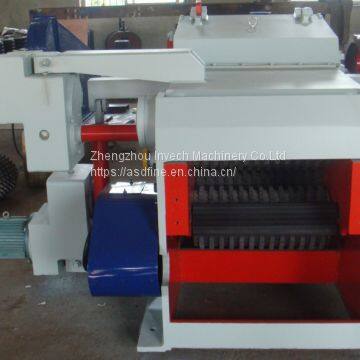

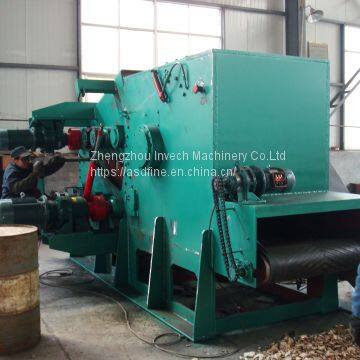

Drum Wood Chipping Machine
- 100 Set / Sets per Month
- Shanghai
- T/T L/C Other
- 20 days
Product Details
| Place of Origin: | China | Model Number: | 077 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE | Condition: | New |
Product Description
1.Product name : Drum Chipper
2.Brief introduction
Drum chipper is widely used in particleboard plant,medium/high density fiberboard plant,straw plant,biomass plant and wood products plant.
It can be used to chip wood material such as branches,logs,slab,veneer etc.And it also can be used for cutting non-wood material such as sugar cane,reed,bamboo and so on.
The drum chipper is consist of a machine body,a knife roller,upper and lower feeding roller,conveyor belts and hydraulic system components.
3.Specifications
Model | BX215 | BX216 | BX218 | BX2113 |
Feeding Port | 160mm*400mm | 230mm*600mm | 300mm*680mm | 450mm*700mm |
Number of Flying Cutter | 2 | 2 | 2 | 2 |
Rotate Speed of Cutter Roller | 592r/min | 590r/min | 650r/min | 520r/min |
Max Diameter of Raw Material | 160mm | 230mm | 300mm | 450mm |
Output Size of Wood Chips | 30mm | 30mm | 30mm | 38mm |
Production Capacity | 3-4t/h | 7-8t/h | 12-15t/h | 15-30t/h |
Main Motor Power | 45kw | 55kw | 110kw | 200-250kw |
Feed Roller Motor Power | 2.2-3kw | 3-4kw | 4-5kw | 7.5kw |
Oil Pump Motor Power | 1.5 x 1 kw | 1.5 x 1 kw | 1.5 x 1 kw | 1.5 x 1 kw |
Weight | 2990kg | 4070kg | 7000kg | 11840kg |
Overall Size | 3421mm*1790mm* 1060mm | 4348mm*1730mm *1258mm | 4670mm*2150mm*1500mm | 3670mm*2517mm* 2050mm |
Conveyor Motor Power | 3kw | 3kw | 3kw | 3kw |
