Mini IR Explosion-Proof HD Security Surveillance IP Camera for Marine, Gas Station

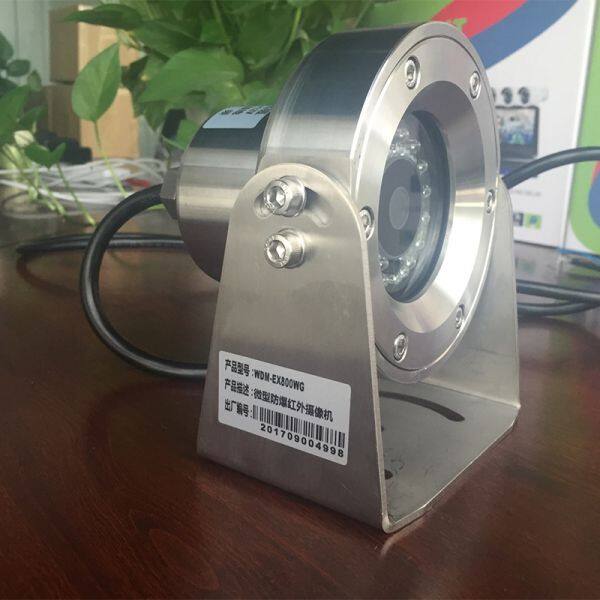

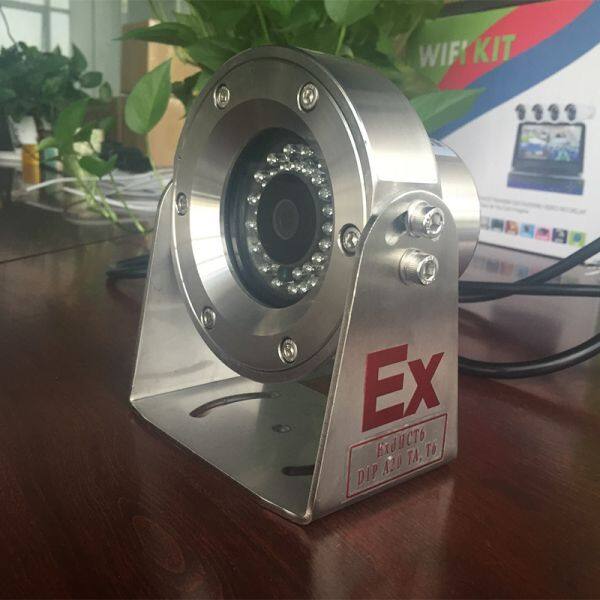

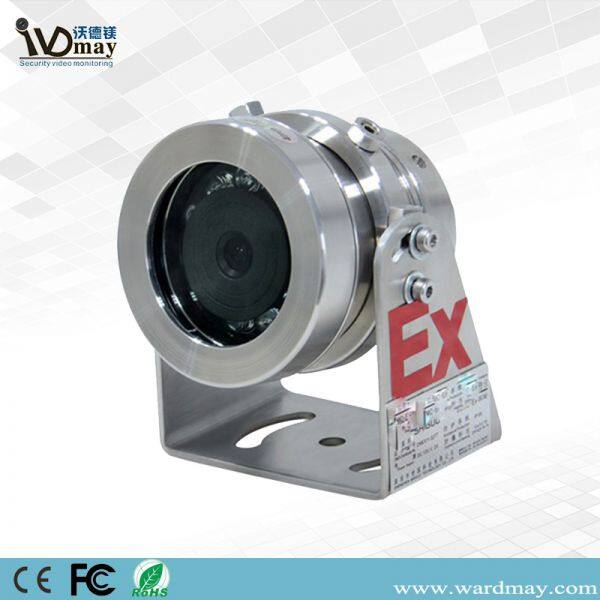

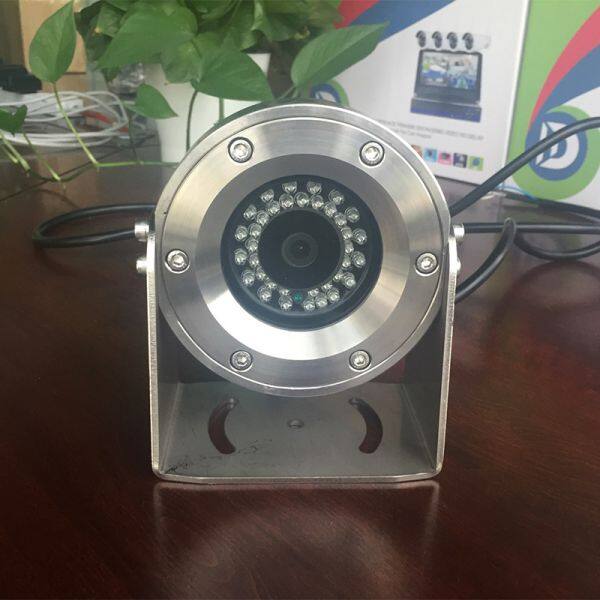

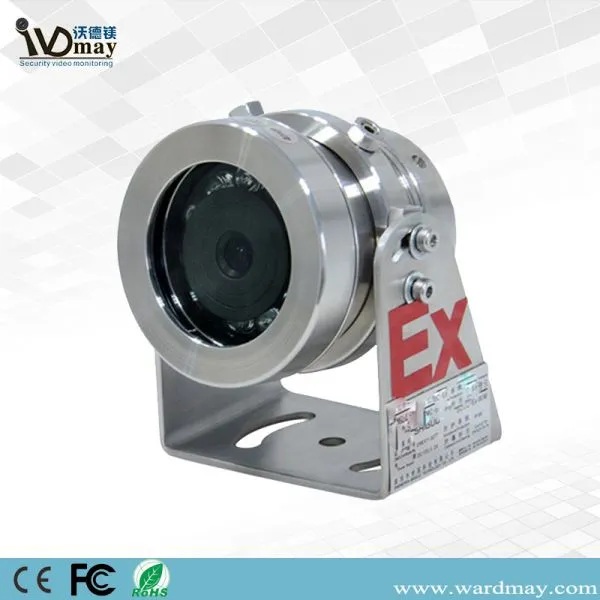

Mini IR Explosion-Proof HD Security Surveillance IP Camera for Marine, Gas Station photo-1
Mini IR Explosion-Proof HD Security Surveillance IP Camera for Marine, Gas Station photo-2
Mini IR Explosion-Proof HD Security Surveillance IP Camera for Marine, Gas Station photo-3
Mini IR Explosion-Proof HD Security Surveillance IP Camera for Marine, Gas Station photo-4
Mini IR Explosion-Proof HD Security Surveillance IP Camera for Marine, Gas Station photo-5
US$ 287 - 292 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Wardmay/OEM
Place of Origin:
China
Model Number:
WDM-EX200IPG
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen,china
Delivery Detail:
3 days
Brand Name Wardmay/OEM
Place of Origin China
Model Number WDM-EX200IPG
Type IP Camera
Special Features Waterproof / Weatherproof
Technology Infrared
Sensor CMOS
Style Other, Explosion-Proof Camera

Mini IR Explosion-Proof HDSecurity Surveillance IP Camera for Marine, Gas Station
Features

* 700/1080P High Resolution
* 4/6mm lens for optional
* Explosion-proof housing
* 304 stainless steel surface treated with fluorine-carbon spray. elegant structure. explosion proof, dust proof,
* Optics class toughened ultra clear white explosion proof glass, flux rate higher than 96%
* Optional temperature controlled SCR semiconductor module to realize automatic heating and cooling functions..heater turned on when temperature lower than -10 degree +-5 degree
* Can be installed on the market 80% camera
* We can customize right camera size according to your requirement

Specifications

Specification
Product Name304 Stainless Steel Explosion-Proof Mini IP Camera
Model No.WDM-EX200IPG
Video
SystemHigh-performance DSP, Hisi3516C+Sony IMX322
Sensor2.0Megapixel 1/2.8” CMOS
Output resolution1920(H)×1080(V)
D/N ModeAuto switching,black and white vide and IR cut action linkage
IlluminationColor 1.0Lux@F1.2,Black 0.1 Lux@F1.2
Video processingH.264 video compression, dual streaming
AVI format, 0.1M~6Mpbs adjustable;
Video Output

Main streaming:1920*1080, 1280*960, 1280×720,1024×768,1280×720;                             Sub streaming: 960×540,640×360,480×270,352×288,320×240,352×192,                                                    320×192,288×192,256×192

Frame rate2.0MP 25/30 frame(full real time),support 1~30frame/seconds adjustable
Network interfaceRJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported
Access ProtocolStandard ONVIF Protocol, Support third party access; PC;
Support IE6.0 and aboveSmartphone
Support AndroidiPhone
Lens
Lens4/6mm lens for optional
IR distance15-20m night vision distance
Function
FunctionSupport WEB configuration, OSD,real-time video transmission
Support motion detection
Support front end storage ,playback and download
Support uniform client and platform system application
Support complete SDK for second development.
Housing Material
explosion-proof housing304 stainless steel, polishing passivation treatment, Rust corrosion resistance, never fade
Ingress ProtectionIP66
Interface specG-1/2”
Method of installation bracket mount
Atex MarkII 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db
IEC MarkEx dIIC T6 Gb/DIP A20 TA, T6
Normal
Power supplyDC12V/POE(optional)
Working Current<=1A

Product Show
