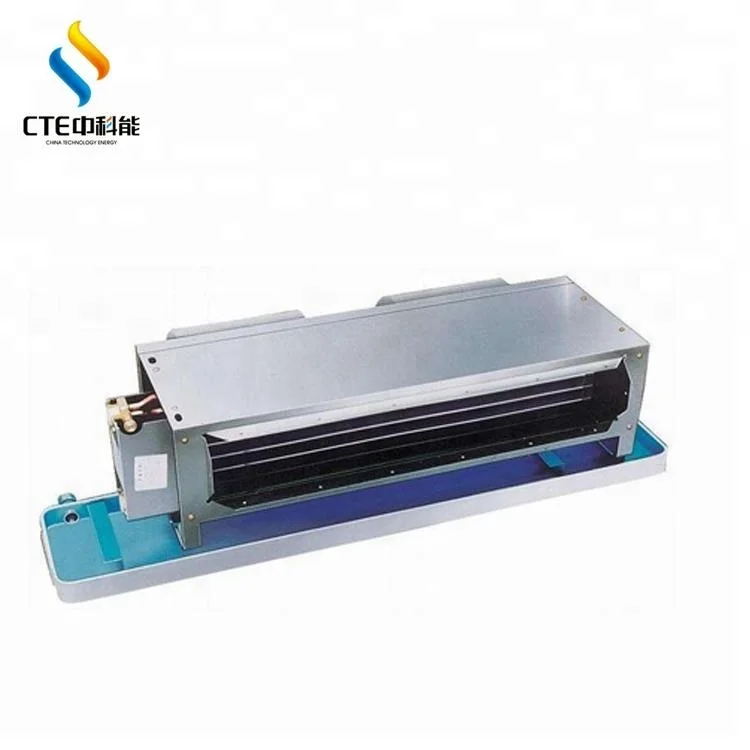

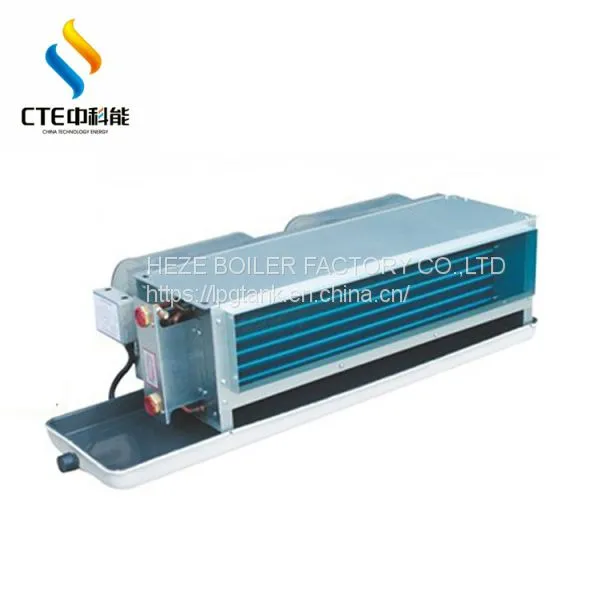

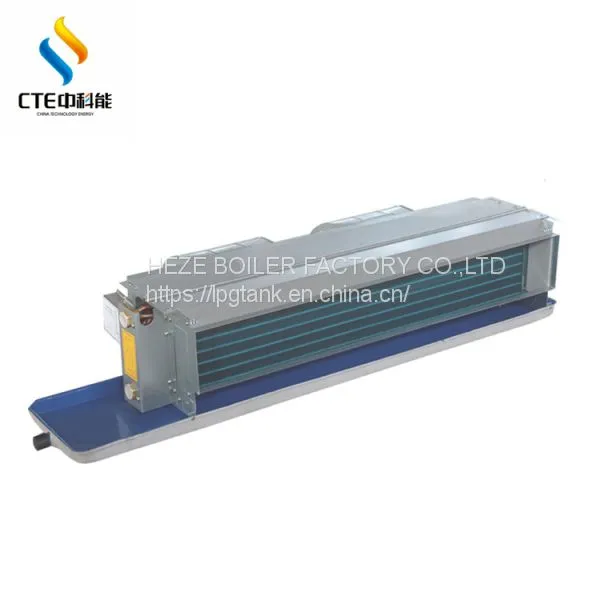

Horizontal concealed ceiling mounted chilled water fan coil units
Fan coil units are referred to as fan coils. It is one of the end devices of an air conditioning system consisting of a small fan, a motor and a coil (air heat exchanger). When the chilled water or hot water flows through the coil pipe, heat is exchanged with the air outside the pipe, the air is cooled, and the indoor air parameters are adjusted by dehumidifying or heating. It is a commonly used cooling and heating terminal device.
Fan Coil Units Features
|
1. Fine structure, beautiful appearance
2. Design features 3. High efficiency 4. Less water loss 5. Power saving, low noise, long life |
FP-51 FAN COIL UNIT PARAMETERS
|
performance
model |
FP-51MA |
|||
|
rated air flow (m3/h) |
high speed |
510 |
||
Medium speed |
445 |
|||
low speed |
339 |
|||
cooling capacity |
high speed |
W |
3160 |
|
|
medium speed |
W |
2863 |
||
low speed |
W |
2180 |
||
Heating capacity |
high speed |
W |
5335 |
|
medium speed |
W |
4667 |
||
low speed |
W |
3554 |
||
|
input power(W) |
12pa |
42 |
||
30pa |
60 |
|||
50pa |
75 |
|||
|
noise dB (A) |
12pa |
37 |
||
30pa |
41 |
|||
50pa |
43 |
|||
|
fan |
type
|
Multi-wing centrifugal or double suction fan |
||
quantity |
2 |
|||
|
motor |
type |
permanent capacitance motor 220V/50HZ |
||
quantity |
1 |
|||
|
cooler
|
structure type |
copper tube double flanged aluminum fin mechanical expansion tube |
||
inlet & outlet diameter |
Rc3/4 (intra-spinal thread) |
|||
other |
Normal working pressure 1.0MPa, Max. Not less than 1.6MPa |
|||
Unit weight |
no return bellows |
15 |
||
with return bellows |
19 |
|||
water capacity(kg/min) |
9.3 |
|||
water buck(kpa) |
18 |
|||
condensate pipe |
Rc3/4 outside the spinal canal |
|||
Remarks:
1) Cooling: Supply water temperature 7°C/12°C; Return air condition: dry bulb temperature 27°C, wet bulb temperature 19.5°C.
2) Heat supply: return air condition: ball temperature 21°C,
3) The noise in the table is measured by the unit in the full-leakage room with background noise of 16.5dB(A).
4) When the static pressure is low, the static pressure value of the unit is 0 Pa, and the static pressure is 12 Pa.
5) Other static pressure units can be configured according to customer requirements (signed when signing the contract).

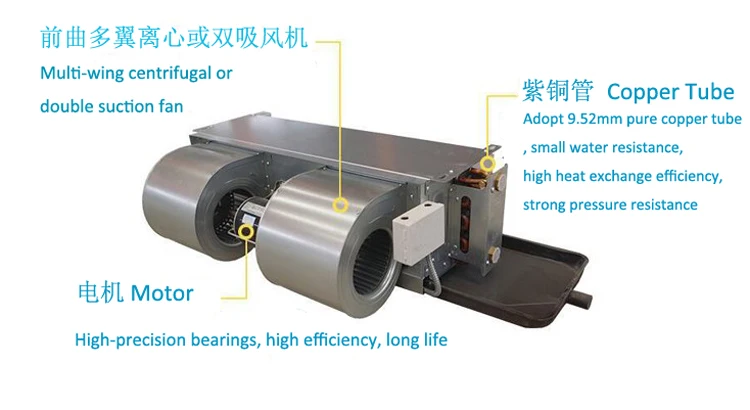

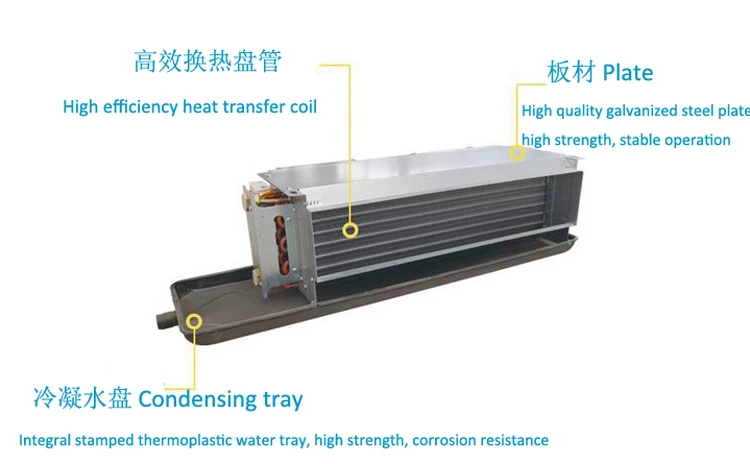

Component of Horizontal Fan Coils

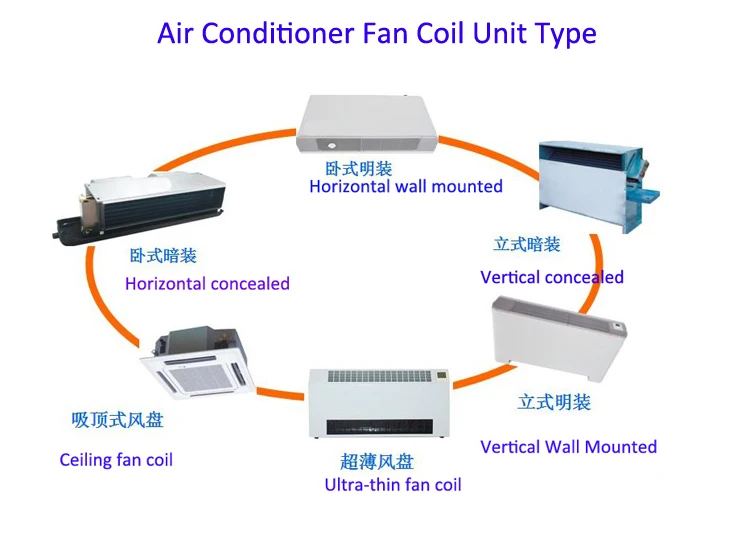

Fan Coil Unit Type
According to the structure can be divided into: vertical, horizontal, wall-mounted, card and so on, according to the installation can be divided into wall-mounted and concealed; wall-mounted fan coil units are all mounted units, its compact structure, good appearance Hang directly above the wall. The card-type (ceiling embedded) unit, the more attractive entrance and exit, is exposed under the ceiling, and the fan, motor and coil are placed above the ceiling, belonging to the semi-solid installation unit. The surface mounted unit has a beautiful shell, with its own inlet and outlet, installed in the room. The casing of the concealed unit is generally made of galvanized steel.
