Zero-Order Waveplate
Low-Order Waveplate
Polarizing Rotator

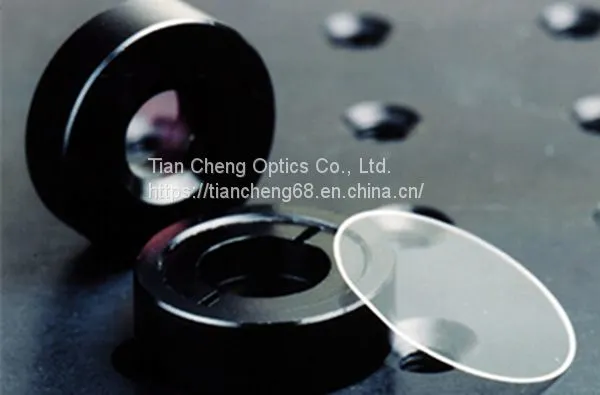

A quarter- or half-wave retarder made from two plates of quartz with their fast axes crossed, the difference in thickness between the two plates determines the retardance. Zero-order retarders provide accurate retardance over a broad range of wavelength and are more durable than single-element retarders.
Specification:
Material |
Crystal Quartz |
Dimension Tolerance |
+0.0/-0.1 mm |
Optical Angle Orientation Tolerance |
±0.1° |
Wavefront Distortion |
λ/8 @632.8 nm |
Retardation Tolerance |
|
Wavelength Range |
400-2100 nm |
Parallelism |
|
Clear Aperture |
> 80% |
Surface Quality |
20-10 scratch and dig |
AR/AR Coating |
R |
Zero-Order Waveplate Standard Products:
Cemented |
Optically Contacted |
||
Part No. |
Ф(mm) |
Part No. |
Ф(mm) |
TZW801 |
10.0 |
TZW804 |
10.0 |
TZW802 |
12.7 |
TZW805 |
12.7 |
TZW803 |
25.4 |
TZW806 |
25.4 |
Note: Other size, wavelength and coating are available upon request.
