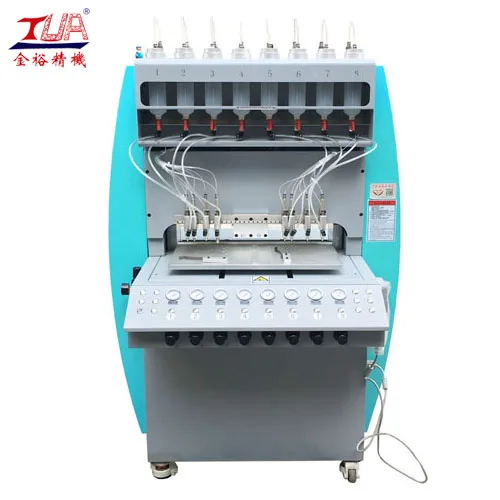

Silicone patch trademark/logo /label dispensing machine

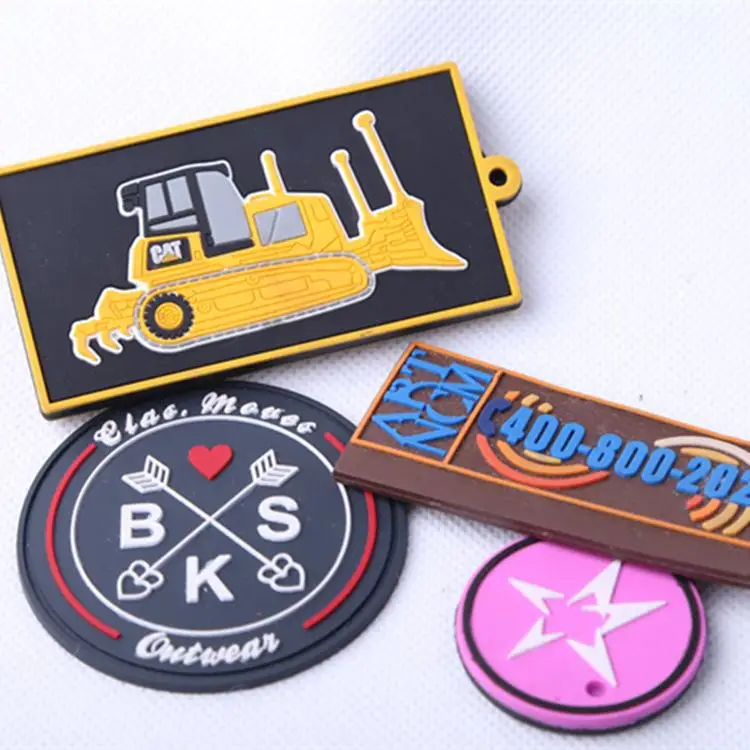

our silicone patch trademark dispensing machine applies to dispensing PVC products ,silicone rubber, like: keychain, labels, mobile phone case, coil and speaker outer ring etc, fridge magnet, photo frame, paint, hardware badge etc.
Type |
JY-B01 |
JY-B02 |
JY-B03 |
Repeat positioning control precision |
+-0.02 |
+-0.02 |
+-0.02 |
Transport system |
Servo motor screw drive |
Servo motor screw drive |
Servo motor screw drive |
Worktable size |
520*370 mm |
620*370 mm |
820*400 mm |
Power supply |
Single phase 220v/50HZ |
Single phase 220v/50HZ |
Single phase 220v/50HZ |
Dispensing needle |
8 |
12 |
24 |
Total power |
1.2kw |
1.2kw |
1.2kw |
Work stroke |
X-400mm Y-300mm Z-50mm |
X-600mm Y-360mm Z-40mm |
X-400mmY-300mmZ-40mm |
Weight |
300kg |
500kg |
600kg |
Speed |
6m/min |
6m/min |
6m/min |
Spit frequency times/min |
600 |
800 |
800 |
Machine size |
1300*900*1850mm |
1100*1300*1550mm |
1500*1650*1700mm |
Brief description:
silicone patch trademark dispensing machine is Full-automatic silicon/ PVC Plastic Drop dripping machine, with 8-12color 8-12guns, which is specialized in the manufacture of PVC Dropping Label of well-performance.
silicone patch trademark dispensing machine can be operated with all guns at the same time, for example, if for single color plastic label, you can produce it by 8 guns one time; if for double color labels, you can produce it by 5 guns; if for three color label, you can only use 3 guns for production; Same as other much color.
silicone patch logo dispensing machine also has a special function of producing 10 kinds of different moulds within its operating range, besides other plastic dropping machines. For this character, it can highly improve efficiency of different moulds, which also dispel customers’ misgivings about not able to use glue-dripping machine to produce small quantity labels,phone covers.
Features of small silicone patch logo dispensing machine
1.Adopt the world advanced SOLIDEWORK3D software and finite element analysis of mechanical design, the optimum design is integrally molded high rigidity, precise structure, long service life.
2.High precision, fast and liquidity walk in arc, three-dimensional. Coordinated system control, the precision can be 0.01mm,the quality is very stable, the products percent of pass can over 99.9%,can improve the working efficiency to 200-800%.
3.High stability: adopts CNC engraving machine rack construction technology, the materials adopts cast iron and granite, the rack will not be out of shape in 5-8 years, adopts original imported screw rod, electrical equipment, moving stability and reliable, low failure rate.
4.Special software, easy operating, multi-needles multi-colors, dropping accuracy.8-24colors(can extensible to more needles),multi needles can dispensing at the same time.
5.Labor saving, improve the production efficiency, one automatic dispensing machine can replace 4-6 skilled workers, one worker can operates several sets machines, greatly saving labors, some works can do as dozens of workload, cut down the production phase. Solve the problems of labor shortage, more hard for practiced hand, hard manage, plant cover large, high input cost.
6.Three axis linkage, high-speed continuous interpolation for arbitrary 3 dimensional curve, speed can up to 999mm/s
Our wooden case:
Service:
Pre-sale service:
1. We offer the mechanical parameters and the analysis of the machine for you.
2. You may obtain the ex-factory price of the machine.
3. Welcome to visit our factory and training.
After-sale service:
1. Send technicians abroad maintenance.
2. Free training service.
3. 24hours and whole year service without vacation.
4. We will set files for the old and new machine, and provide service for the hydraulic machine of other factory.
5. All sold machine will be provided with warranty of one year.
6. free warranty of one year ,and maintenance all life of machine, and the service will be provided in your company. If you meet with any problem about the machine.
FAQ
Q:Are you trading company or manufacturer?
A:We are industry and trade integration.
Q:How long is your delivery time?
A: Generally for 25 days delivery.
Q:Can you provide technical support?
A: We provide free training from 2 to 3 weeks.
Q:How to help when machine wrong?
A: We will send technicians to your factory maintenance.
Q: Can produce customized products?
A: We can produce customized products for you.
Q:Why you choose Dongguan JINYUA automation Equipment Co., Ltd.?
A: We have independent research and development of products, enhance mechanical efficiency every day.
