| Technique specification | |
| Brand Name | BOGA |
| Film Width | MAX.250mm |
| Bag Length | 65-190/120-280mm |
| Bag Width | 30-110mm |
| Product Height | MAX.40mm |
| Film Roll Diameter | MAX.320mm |
| Packing Speed | 40-230bags/min(According to the situations) |
| Machine Weight | About 450KG |
| Voltage | 220V,50/60Hz(380V acceptable),2.4KW |
| Dimensions(L*W*H) | 3770*670*1450mm |
| Driven Type | Electric |
| Film Material | Paper, Plastic, OPP,PE,PVC,PT/PE,OPP/CPP, other special sealable packing film. |
| Machine Materail | Carbon steel,201/304 Stainless steel |
| Control | PLC , PID control for temperature |
Main performance and structure features:
1. Double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
2. human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7. Simple driving system, reliable working, convenient maintenance.
8. All controlled by program, convenient for function adjusting and upgrading.
Application :
Food |
cake, bread, meat , pastry, biscuits, green bean cake, several sausage in a bag, noodles, beef jerky, etc. |
Hardwares |
hinge, stainless steel pipe, bearings , screw, nuts and washer, etc. |
Hotel supplies |
Soap, disposable comb, tooth paste and brush in one set. |
Stationary |
pencil, eraser, notebook, paper card, adhensive tape. |
Electric products |
battery, usb cable, earphone, user manual and accessories in one set. |
Non-woven fabric products |
mask, glove, gauze, capsule. |
Daily use products |
knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin etc. |
| Main Electrical configuration | |
| 1.PLC | Panasonic from Japan |
| 2.Inverter | Panasonic from Japan |
| 3.Close to Switch | Omron from Japan |
| 4.Switch Button | Schneider from German |
| 5.Terminals | Wade Miller from German |
| 6.Display Screen | WeiLun from TaiWan |
| 7.Motor | Jiangcheng from Guangdong |
| 8.Photocell | Yetai from Taiyan |
| 9.Temperature Control List | Omron from Japan |
| 10.Pushbutton Switch | Schneider from German |
| 11.Power | Ming Wei from Taiwan |
| 12.Intermediate Relay | Omron from Japan |
| 13.Two Wire Switch | Schneider from German |
General |
1.Packaging Details:Export and Sea-worthy standard wooden case |
2. After inspection our machines are wrapped by plastic film and then carefully packed in wooden cases. | |
|
3.Dedusting & Cleaning >> lubricate Drive Parts >> Divide Machine Into Modules >> Wrap Modules With Plastic Film >> Packing Modules into Plywood Cases >> Mark Shipping Mark In The Cases | |
Special |
If any special requirements, we will pack it as requested. |
Please kindly contract shirley :
Facebook/Skype/Whatsapp/Wechat:+86-13927240684

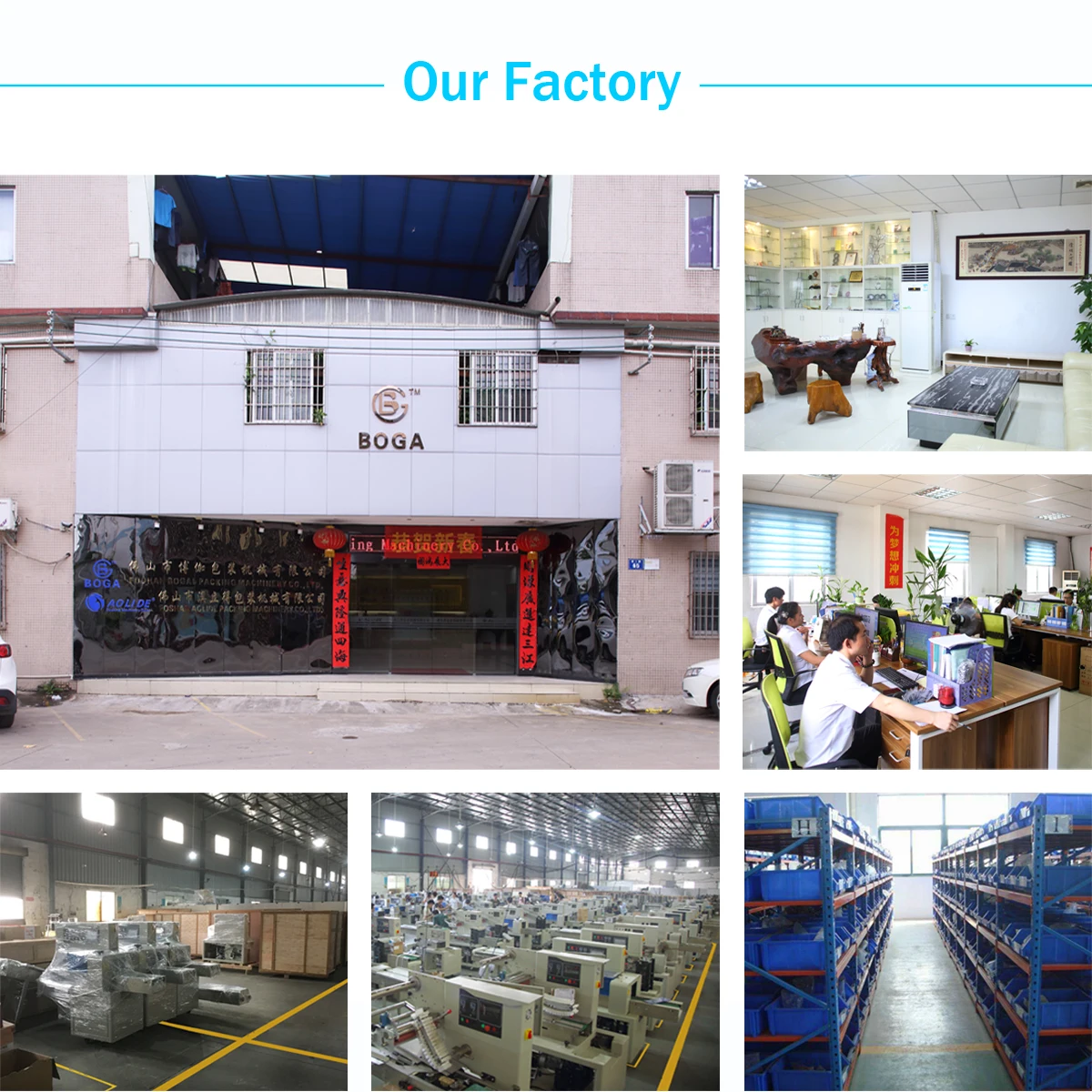

Or come to our factory:
No.65,Road 2,Rongxing Industrial,Wuzhuang,Luocun Town,Nanhai District ,Foshan City ,Guangdong,China
FAQ
Q:Why choose us?
A:1.More than 14 years of production experience,let us pay more attention to products' details.
2.Material selection,we insist on using domestic and international famous brands of accessories,to ensure the stability of the
equipment.
3.About after sale service,customers' problems in using the machine,our staff will be in the first time to solve the program.
Q:I have never use this kind of packing machine,how to control?
A:1.Each machine we are accompanied by the relevant operationg instructions.
2.Our engineers can operate through a video demostration.
3.We can send engineers to the scene traching.
Q:How to choose a best fit packaging machine?
A:1.Give us the product size,weight,size of the packaging bag andpackaging style,we will make a detailed plan for your
reference.
2.Provide us the packaging products,they will be packed in our machines and mailed to you for your reference.
Q:What makes us outstanding from peers?
A: 1.A most stric QC standard in the industry is applied.
2.CE certificate.
3.High productivity with advanced machines.
4.A wide selection of styles,and product types.
