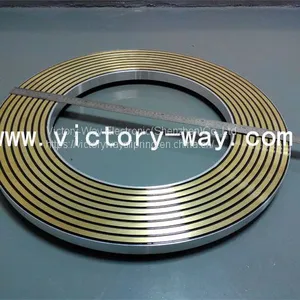

When you have a height restriction, a "pancake" slip rings - also called a "flat" or "platter" ring - could be the best solution. These slip ring units are based on a disc shaped rotor, which is embedded with concentric grooves to carry the signal and power, with a brush block assembly mounted over the top to act as the stator. We can customize this type of slip ring from 4 to 50 channels,and any center bore size. Contacts use precious metals and operating speed depends on the number of channels and overall size of slip ring.(More product information welcome to visit .)
A.)Features:
● Ultra-thin design,the thickness reaches 15 mm min;
● Center bore size can be customized;
● Multi circuits/channels design can deliver both power & signal at the same time;
● No need to maintain.
B.)Specification
| Channels | 1~50 Ways |
| Voltage | 240V AC/DC |
| Current Rating | 2A/Ring |
| Speed | 100PRM |
| Insulation Resistance | 1000MΩ@500VDC |
| Dielectric Strength | AC600V@60Hz, 60S |
| Electrical Nosie | 60 milliohms MAX @ 5~10 rpm,50milliamps,6V DC |
| Lead Size/Type | AWG28 Sliver plated coppe,Type ET Teflon |
| Lead Lengths | 250mm |
| Operate Temp | -20℃～+80℃ |
| Storage Temp | -30℃～+90℃ |
