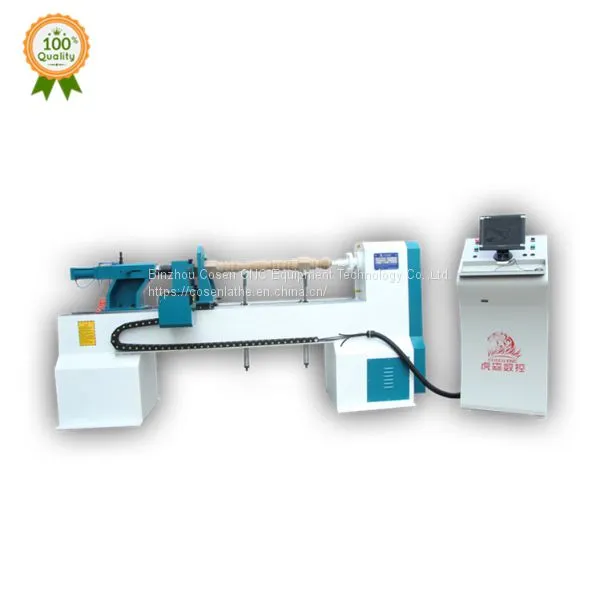

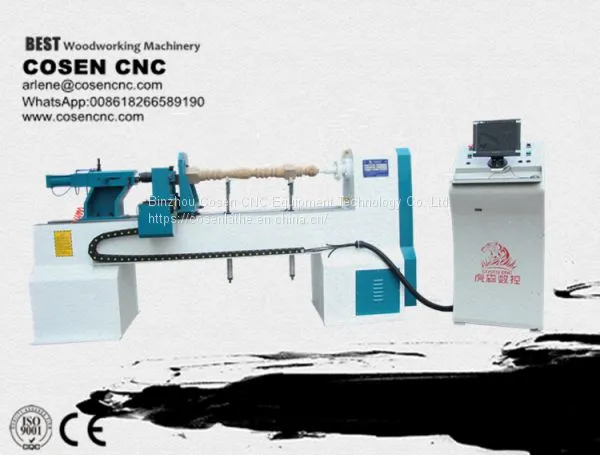

COSEN CNC best cnc wood turning lathe
- 200 Set / Sets per Month
- Qingdao
- T/T L/C Cash
- 7 days
- Automatic mini cnc wood turning lathe machine for small crafts making
- LIVTER Factory direct woodworking small lathe CJ0618 stepless speed home lathe desktop mini wood lathe
- LIVTER cnc wood turning copy lathe for bowls/vases/goblets/cups quotomatic feeding 3 holder lather
- LIVTER cnc wood turning lathe machine wood grinding machine mortising and tenon machine
- LIVTER MCF1000 copying woodworking lathe Buddha bead staircase handrail copying machine home light wood lathe
- LIVTER Wood Lathe Tool Rest Polishing And Cutting Mini Diy Woodworking Lathe
Product Details
Brand Name: | CONSEN CNC | Place of Origin: | China | Model Number: | CNC315S |
Certification: | CE,ISO | After-sales Service Provided: | Overseas third-party support available | Warranty: | 1 year |
Weight: | 1450KG | Dimension(L*W*H): | 2750*1300*1300mm | Voltage: | 380V |
Condition: | New | Power(W): | 4KW |
Product Description
1.Specfication

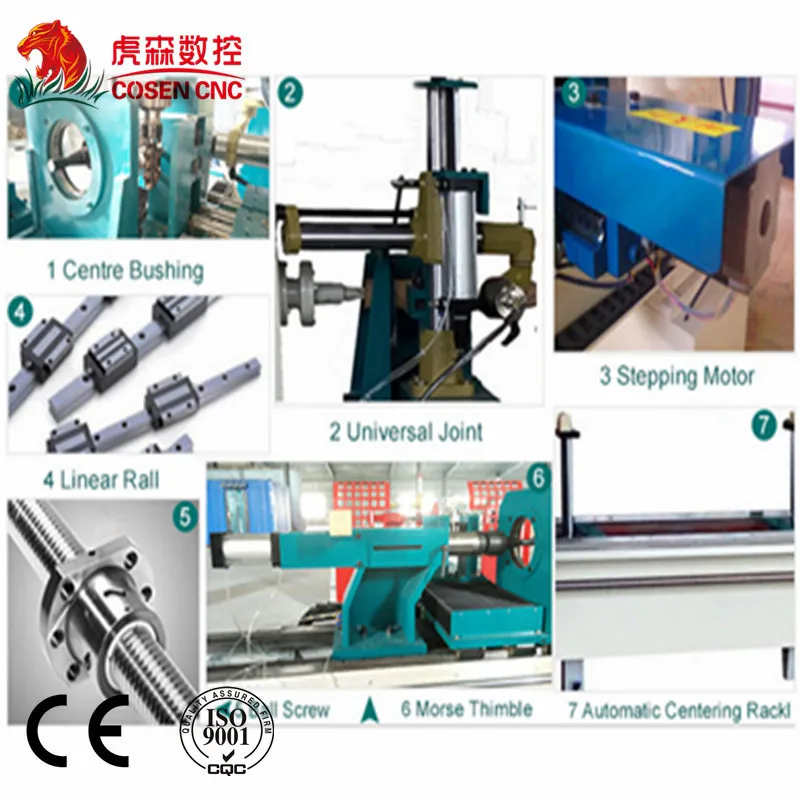

Advantages of COSEN CNC Wood Lathe
1. This machine with one spindle, one chuck and one backlash. This model support upgrade to two chucks and two backlash. You can mount on material to two chucks and compelete the work piece simultaneously. One operator could run 2-3 pcs of cnc wood lathe at the same time for saving salary cost.
2. Most Advanced Material Loading Skill: When you load workpiece to cnc wood lathe, you do not have to fix workpiece on the chuck, then get the other edge of workpiece to find the center. And we loade the workpiece to machine, machine 4 points could help to find the center. And it only takes 3 seconds for whole material loading material, with higher precision then auto loading. When you process larger diameter vase, you could use auto cutter and adjustable air-cylinder, this improve the workpiece surface finish and last the cutter life time. The center supporter fix workpiece center when it is under the condition of self weight. This workpiece center fixing way is with higher precision.
3. Easily Programming. Usually, programing is the important step before working, and this is also a time-spending work.COSEN cnc wood lathe program assits you to reduce this time and improve working efficiency for more benefit.COSEN CNC programing could be processed with photo. When photo is taken then scan, then could get into programming automatically;Meanwhile you can use COSEN CNC software to design any model to programme. And you can measure, change size,stop to amend if you would like in the PC directly.
2. Applications:
Various cylindrical workpiece, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.;
3.Technical Parameters automatic wood turning copy lathe for sale
LATHE MODEL | CNC315S/315K/315W | CNC415S/415K/415W | CNC425S/425K/415W |
Max Processing Size | 1500x300mm | 1500x400mm | 2500x400mm |
Spindle Power | 4kw | 4kw | 5kw |
Quantity of Spindle | 1 | 1 | 1 |
Quantity of Tools | 2 | 2 | 2 |
Max Feed Speed | 35mm/s | 35mm/s | 35mm/s |
Spindle Speed | 0-3500rpm | 0-3500rpm | 0-3500rpm |
Accuracy | 0.001mm | 0.001mm | 0.001mm |
Control System | CNC,PC+12"LCD Or DSP | CNC,PC+12"LCD Or DSP | CNC,PC+12"LCD Or DSP |
Support Command | International G Code | International G Code | International G Code |
Software | Coreldraw,Artcam,Type3,Ucancam,Caxa,UG,Mastercam,AutoCAD | ||
Voltage | 380V/50HC | 380V/50HC | 380V/50HC |
Machine Dimension | 2750x1200x1300mm | 2750x1300x1400mm | 3750x1300x1400mm |
Weight | 1500kgs | 1500kgs | 2000kgs |
cnc automatic wood turning copy lathe for sale
Origin: Binzhou,Shandong,China.
Model Index:
Double Cutters Series: CNC315S, CNC415S, CNC425S - Turning Only.
Double Cutters + MFL™ (Multi-Function Lathe) Series:
CNC315K, CNC415K, CNC425K - Cylinder Engraving
Double Cutters + MFL™ (Multi-Function Lathe) Series:
CNC315W, CNC415W, CNC425W - Cylinde + Plane Engraving
(COSEN MFL™ - Turning + Milling + Twisted wire + Carving all-in-one CNC lathe-Patented Product )
Optional part:
(1). Dust collect, which is used to collect the wood exhaust.
(2). Φ160 mm Four-Jaw Chuck for large sizes timber or barrel shape turning.
Consumable parts:
We suggest customers buy more consumable parts for future use.
(1). Tool. This machine use white steel tool. Customers could change the tools easily.
(2). Bearing. Customers could change the bearing easily.
(3). Centre rest bushing with 5cm and 6cm square timber.if have other sizes,please inform inadvance.
Customer and delivery:
Accept ODM, OEM,
Accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before delivery goods .
The normal products with standard configuration manufacturing time is 7-15 days.
