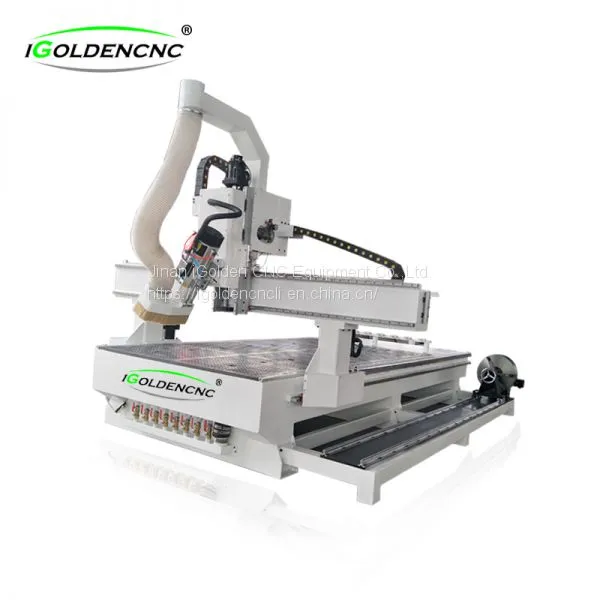

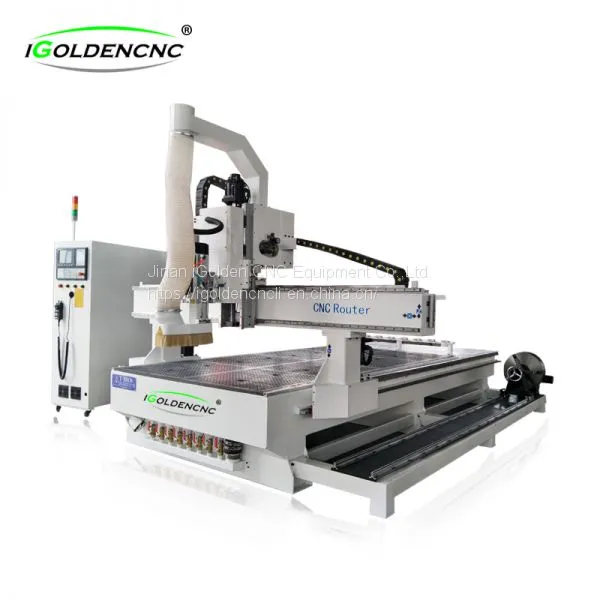

ATC cnc router attach rotation axis machine specially designed for high efficency working in wood processing, for example furnniture carving and cutting, carbinet, office furniture, furnish ,decorative works.
It can change 6-8 knives within 15 seconds, highly improve the working speed, and save a lot of human labourface.
Parameters for automatic tool change cnc router :
| Item |
Description |
|
| Model |
IG-1325ATC |
|
| Work area |
1300x2500x300mm |
|
| Table size |
1530x2940mm |
|
| Transmission |
X/Y rack and pinion drive, Z ball screw drive |
|
| Motor |
Japan YASKAWA servo motor and driver |
|
| Spindle |
Power |
9kw Italy HSD |
| Cooling |
Air cooling |
|
| speed |
0-24000rpm |
|
| Table type |
vacuum absorption t-slot table |
|
| Travel Speed |
0-40m/min |
|
| working speed |
0-25m/min |
|
| Reposition Accuracy |
0.005mm |
|
| Control System |
Taiwan Syntec |
|
| Command code |
G code,HPGL,U00,mmg,plt, |
|
| Design software |
ARTCAM/TYPE3/ CAD/CAM |
|
| Working Voltage |
AC380v 3phase/50HZ |
|
| Temperature |
0-45℃ |
|
| Automatic tool changer |
Linear 8 pieces tool changer |
|
Applications of automatic tool changer cnc router:
1. Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc;
2. Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon,channel,literal-hole cut,lightbox mold,stamp,mould,etc;
3. Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc;
4.Decoration:acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper
Application industries：
1.Wooden doors and furniture decoration industry :solid wood and composite doors.cupboarddoors,large area plate engraving.milling,carved wood furmiture carving,antique carved maho-gany furniture,solid wood art wall painting sculpture and other industries.
2.Wooden crafts processing:watch box,photo frame craft,calligraphy plaque,electrical cabinetscountertops,sports equipment,sheet aluminium milling engraving.
